Replacement of Transmitter Battery (Other than Keyless Start Model)

NOTE: For keyless start model, perform REPLACEMENT OF REMOTE CONTROLLER BATTERY instead of "Replacement of Transmitter Battery (Other than Keyless Start Model)".

If transmitter becomes unreliable, replace transmitter battery as follows.

Put the edge of a coin (1) or a flat blade screw driver in the slot (2) of the transmitter (3) and pry it open.
Replace the battery (lithium disk-type CR2025 or equivalent) (4) so its "+" terminal faces the "+" mark of the transmitter (3).
CAUTION: Use care not to allow grease or dirt to be attached on the printed circuit board and the battery.
Close the transmitter (3) firmly.
Make sure the door locks can be operated with the transmitter (3).

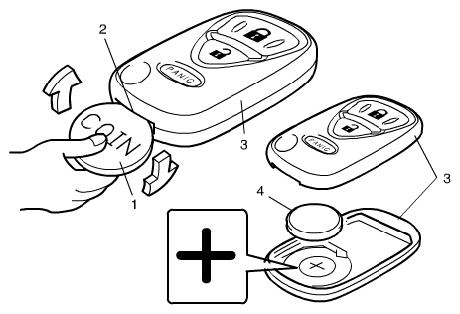

Fig 1: Putting Edge Of Coin In Slot
Courtesy of SUZUKI OF AMERICA CORP.
NOTE:
- To prevent theft, be sure to break the transmitter before discarding it.
- Dispose of the used battery properly according to applicable rules or regulations. Do not dispose of lithium batteries with ordinary household trash.
