Front Door Lock Assembly Components

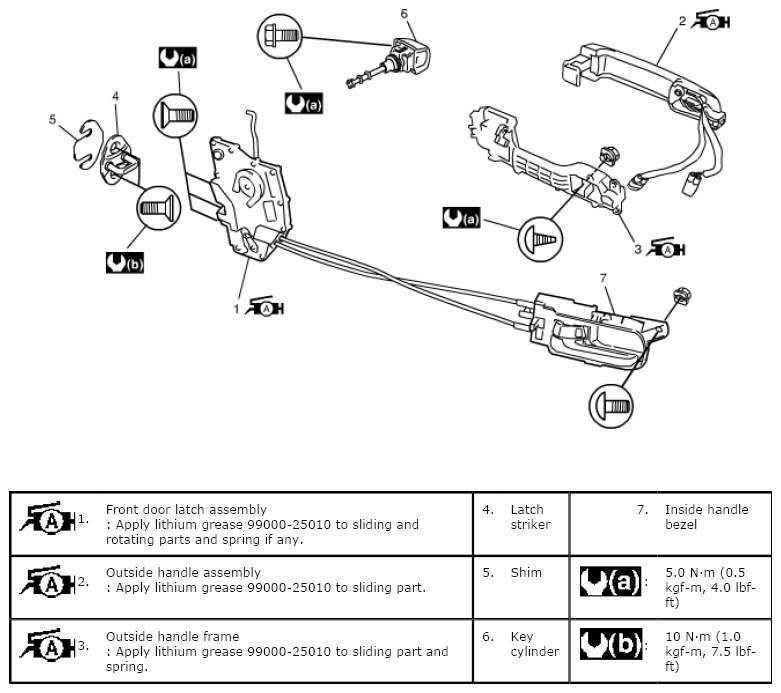

Fig 1: Front Door Lock Assembly Replacement Components With Torque Specifications
G06499834Courtesy of SUZUKI OF AMERICA CORP.
