Key Indicator Light Check

Push the ignition knob switch (2) of the steering lock unit (1) and check that the key indicator light (3) in the combination meter lights up in red or blue. If it does not light, go to KEY INDICATOR LIGHT CIRCUIT CHECK (KEY INDICATOR LIGHT DOESN'T LIGHT WHEN IGNITION KNOB SWITCH IS PUSHED) .

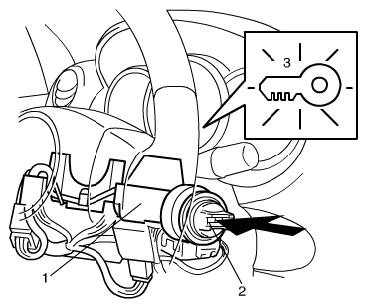

Fig 1: Pushing Ignition Knob Switch Of Steering Lock Unit

Courtesy of SUZUKI OF AMERICA CORP.
