Immobilizer Control System Component Location

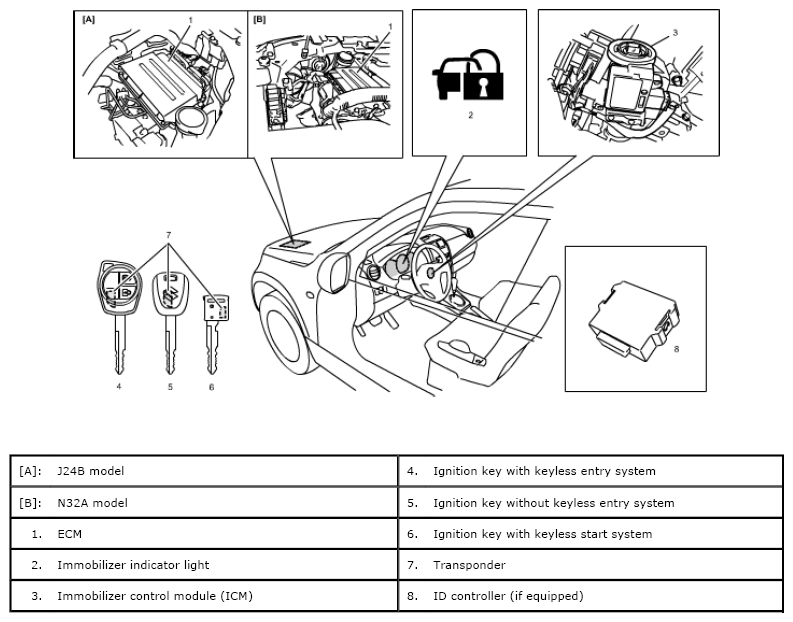

Fig 1: Identifying Immobilizer Control System Component Location
G06499897Courtesy of SUZUKI OF AMERICA CORP.
