Grand Vitara Base
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
Body Electrical Control System
>>
Schematic and Routing Diagram
>>
Body Electrical Control System Wiring Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Body Electrical Control System Wiring Circuit Diagram

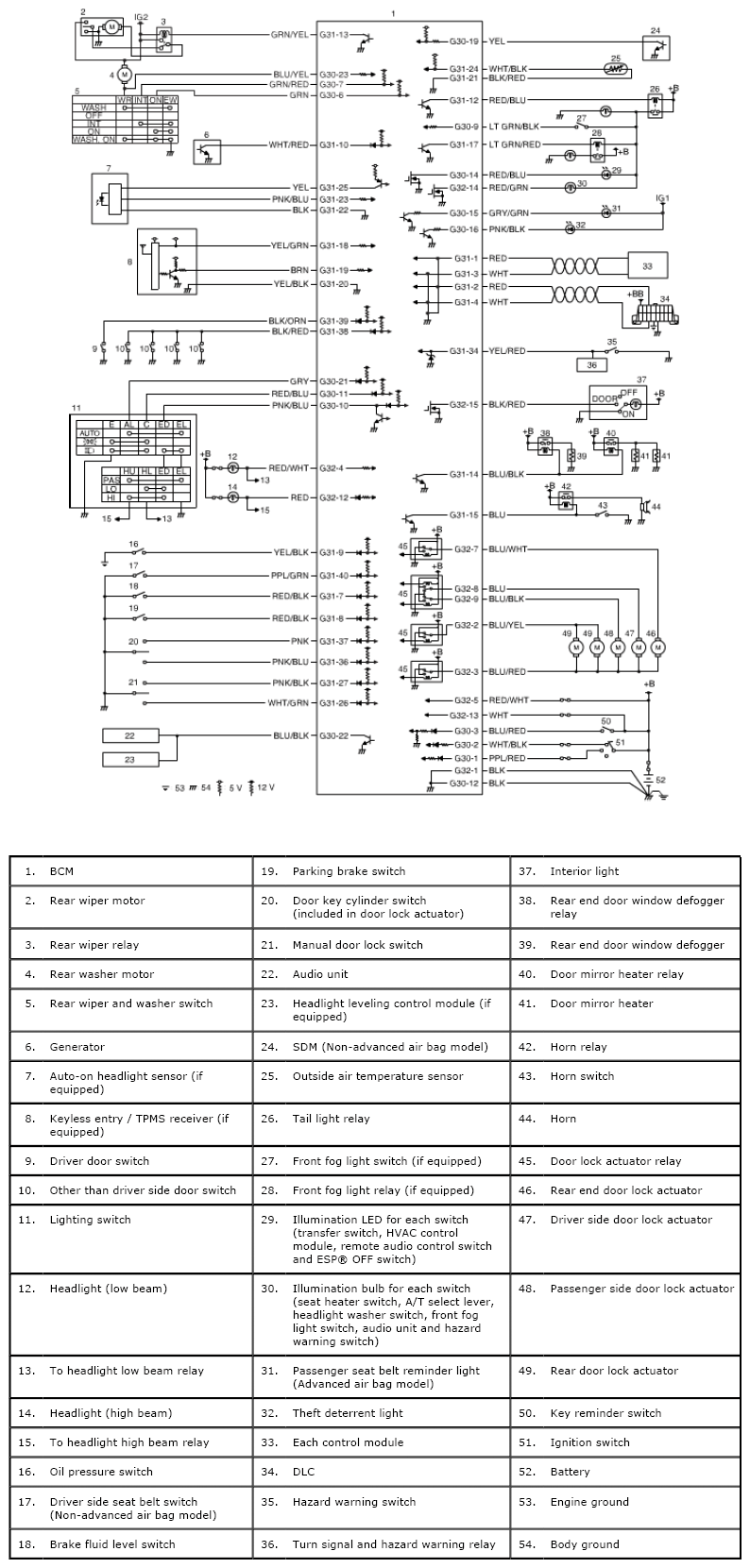

Fig 1: Body Electrical Control System Wiring Circuit Diagram
