DTC P2004: Intake Open Manifold Runner Control Stuck ; P2006: Intake Manifold Runner Control Stuck Closed: Wiring Diagram

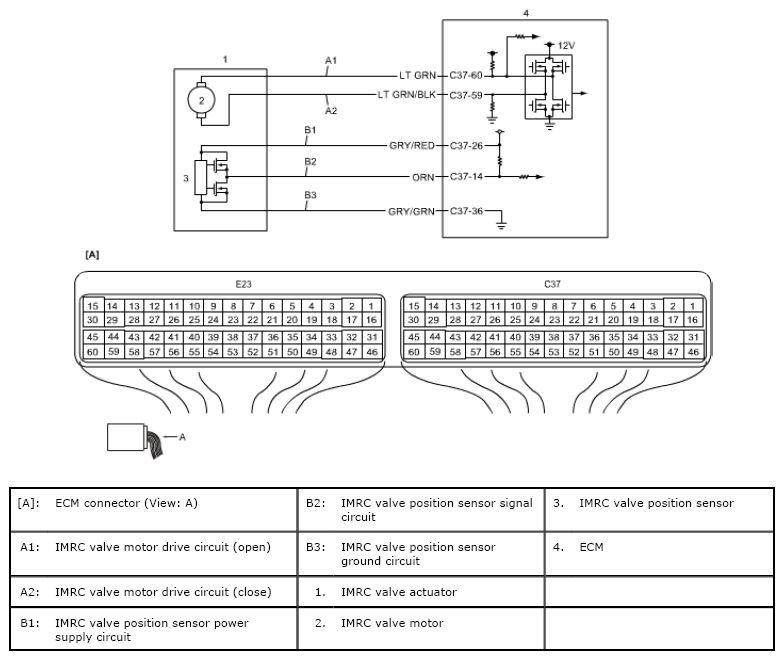

Fig 1: Intake Manifold Runner Control Stuck - Wiring Diagram
G06492371Courtesy of SUZUKI OF AMERICA CORP.
