DTC P0660: Intake Manifold Tuning Valve Control Circuit / Open: Wiring Diagram

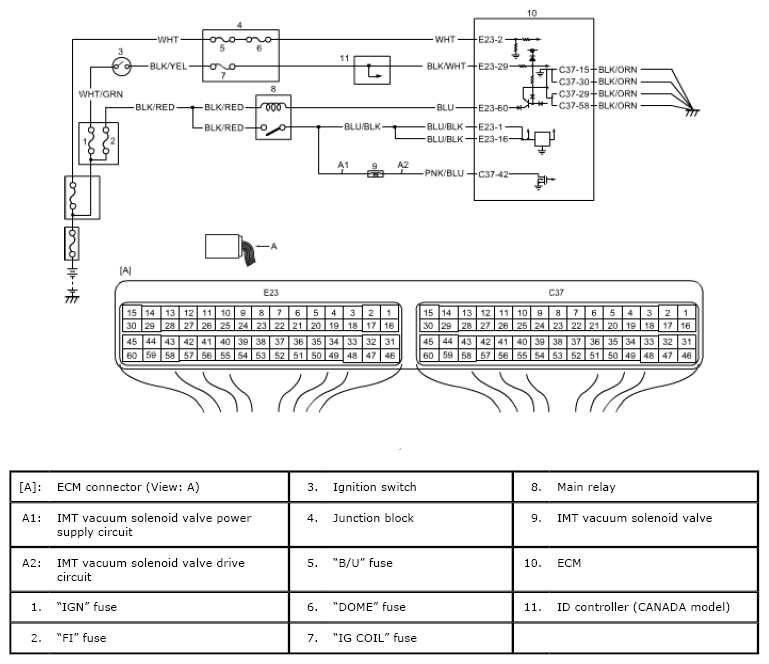

Fig 1: Intake Manifold Tuning Valve Control - Wiring Diagram
G06492370Courtesy of SUZUKI OF AMERICA CORP.
