DTC P0620: Generator Control Circuit: Wiring Diagram

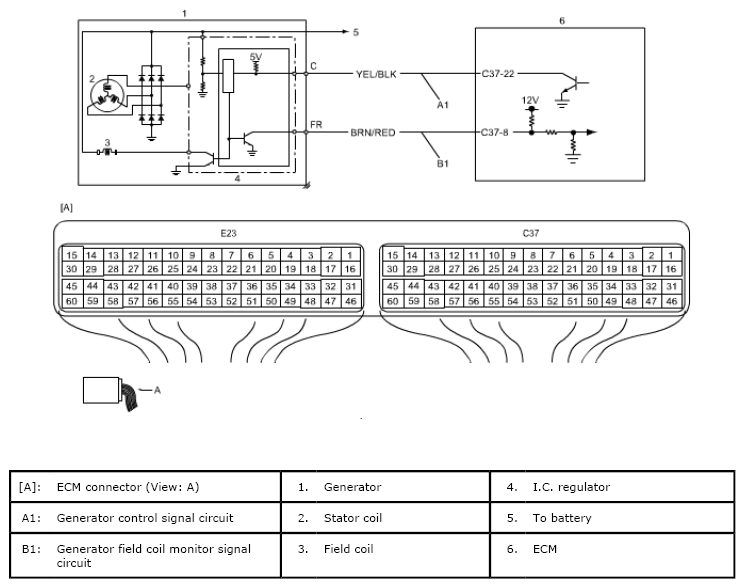

Fig 1: Generator Control - Wiring Diagram

G06492369

Courtesy of SUZUKI OF AMERICA CORP.
