DTC P0101: Mass or Volume Air Flow Circuit Range / Performance: Wiring Diagram

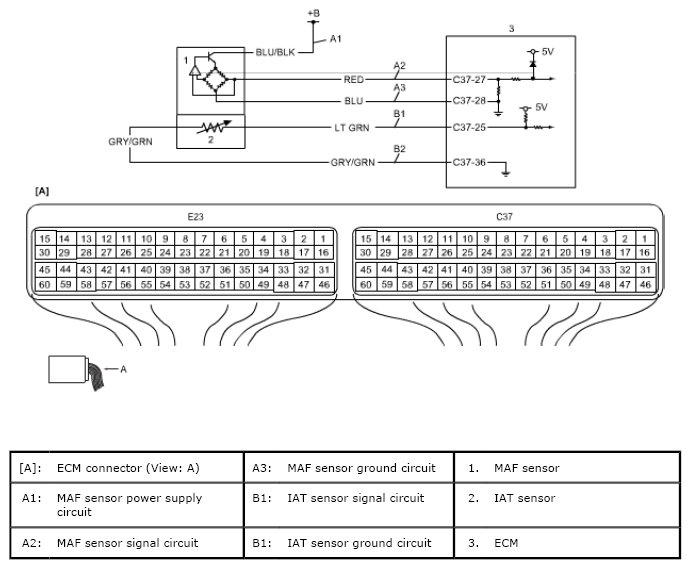

Fig 1: Mass Or Volume Air Flow - Wiring Diagram
G06492354Courtesy of SUZUKI OF AMERICA CORP.
