CKP (Crankshaft Position) Sensor Removal and Installation: Installation

Reference: CMP (CAMSHAFT POSITION) SENSOR INSPECTION

Reverse removal procedure noting the following.

• Apply engine oil to O-ring of sensor.
  CAUTION: Use new CKP sensor bolt.
• Tighten CKP sensor bolt to specified torque.

  Tightening torque

  CKP sensor bolt: 11 N.m (1.1 kg-m, 8.5 lbf-ft)

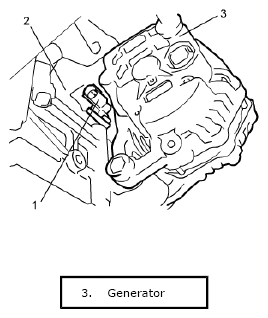

  Fig 1: Identifying CKP Sensor

  Courtesy of SUZUKI OF AMERICA CORP.
• Connect connector and fix wire harness with clamp securely.
