Manual Transmission Front Case Disassembly and Reassembly

Manual Transmission Front Case Disassembly and Reassembly

Manual Transmission Unit Disassembly

Disassembly

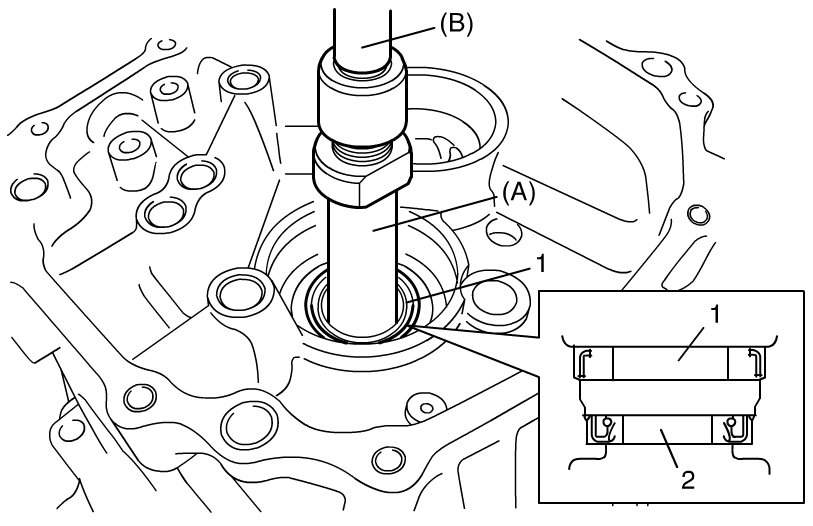

Remove pump seal (1) and oil seal (2) from front case using special tools.
Special Tool

(A): 09941-64511

(B): 09930-30104





Reassembly

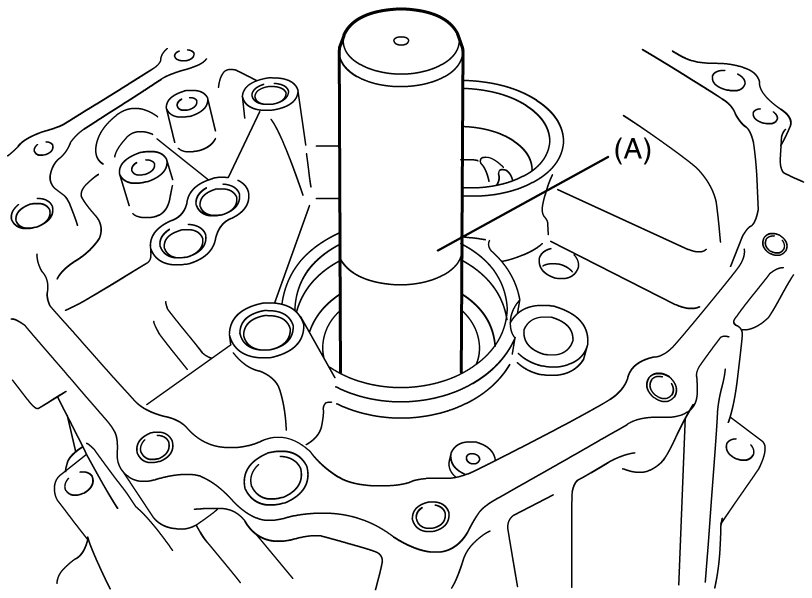

1) Set new oil seal to front case with its spring side facing rear case side.
2) Install oil seal until it becomes flush with case surface using special tool and hammer and apply grease to oil seal lip.
Special Tool

(A): 09940-51710

Grease: 99000-25011 (SUZUKI Super Grease A)

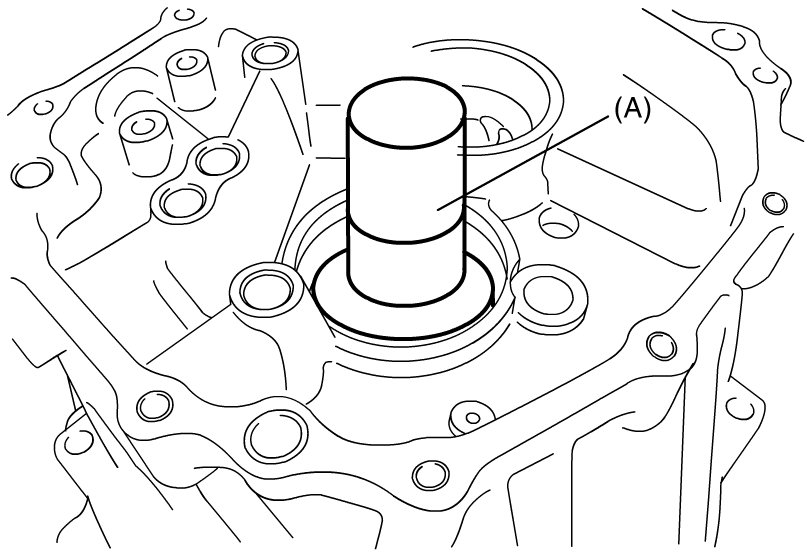

3) Install new pump seal to front case using special tool and hammer.
Special Tool

(A): 09913-75810
