General Description
>>
4WD System: Power Transfer
>>
Power Transfer Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Transfer Diagram

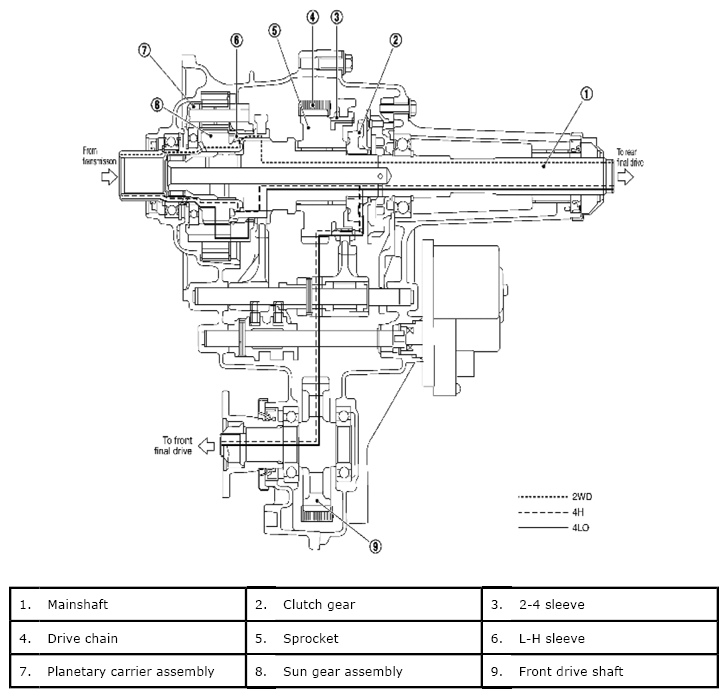

Fig 1: 4WD System Power Transfer Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
