Steering Wheel: Removal and Installation: Removal

  1. Set the front wheels in the straight-ahead position.
  2. Remove the driver air bag module. Refer to [DRIVER AIR BAG MODULE: REMOVAL AND INSTALLATION ].
  3. Disconnect the steering wheel switches.
  4. Remove the steering wheel center nut.
  5. Remove the steering wheel, using Tools.

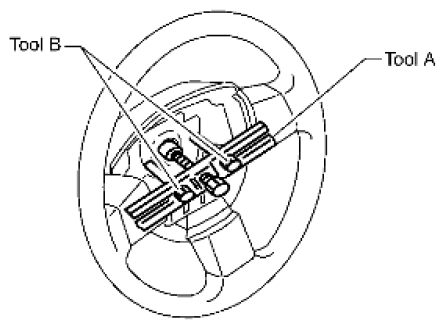

    Fig 1: Removing Steering Wheel, Using Tools
    G06445826Courtesy of SUZUKI OF AMERICA CORP.

    Tool number A: KV481J0010 (J-1859A)

    B: KV481J0020 (J-42578)

  1. Inspect the steering wheel near the puller holes for damage. If damage is found, replace the steering wheel.
    • Remove the steering wheel rear cover and steering wheel switches, if required.
      CAUTION: Place a piece of tape across the spiral cable so it will not be rotated out of position.
