Checking Steering Wheel Turning Force

Park vehicle on a level, dry surface and set parking brake.
Start engine.
Bring the power steering fluid up to adequate operating temperature. Make sure the fluid temperature is approximately 50°- 80°C (122°- 176°F).
Tires need to be inflated to specified pressure. Refer to [SERVICE DATA AND SPECIFICATIONS ].
Check steering wheel turning force using Tool when steering wheel has been turned 360° from the neutral position.

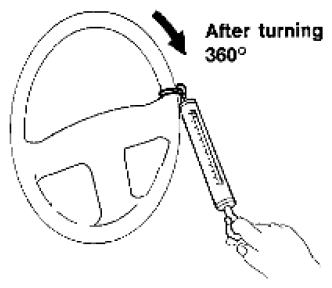

Fig 1: Checking Steering Wheel Turning Force Using Tool
Courtesy of SUZUKI OF AMERICA CORP.

Tool number: - (J-44372)

Steering wheel turning force, Refer to [ Service Data and Specifications ].
If steering wheel turning force is out of specification, inspect the following:
- Steering column. Refer to [STEERING COLUMN: REMOVAL AND INSTALLATION ].
- Power steering oil pump. Refer to [POWER STEERING OIL PUMP: ON-VEHICLE INSPECTION AND SERVICE ].
If steering column and power steering oil pump meet specifications, replace steering gear. Refer to [POWER STEERING GEAR AND LINKAGE: REMOVAL AND INSTALLATION ].
