Front Engine Mount Vibration/Noise. (TS 01 03091)

Publication date: 2011-03-09
Reference number: TS 01 03091

FRONT ENGINE MOUNT VIBRATION/NOISE.

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 01 03091, Date of Issue: March 16, 2011

SUZUKI:	2009-2011 EQUATOR (A61640)
SECTION:	Engine

CONDITION

Front engine mount insulator is leaking or cracked resulting in engine vibration or noise.

CAUSE

The insulator of the front engine mount becomes damaged or begins to leak.

CORRECTION

Please follow the procedure in the applicable service manual and replace both front engine mounts, stoppers, and the bolts indicated with new ones from the Parts Information table below.

WARRANTY INFORMATION

Labor Operation	Description	Failed Part Number	Complaint Code	Defect Code	Labor Time
AJ9999	FRONT ENGINE MOUNT REPLACEMENT (BOTH)	11510-82Z10	78	29	3.3

PART(S) INFORMATION

PARTS INFORMATION

Part Number	Description	Qty.	Notes

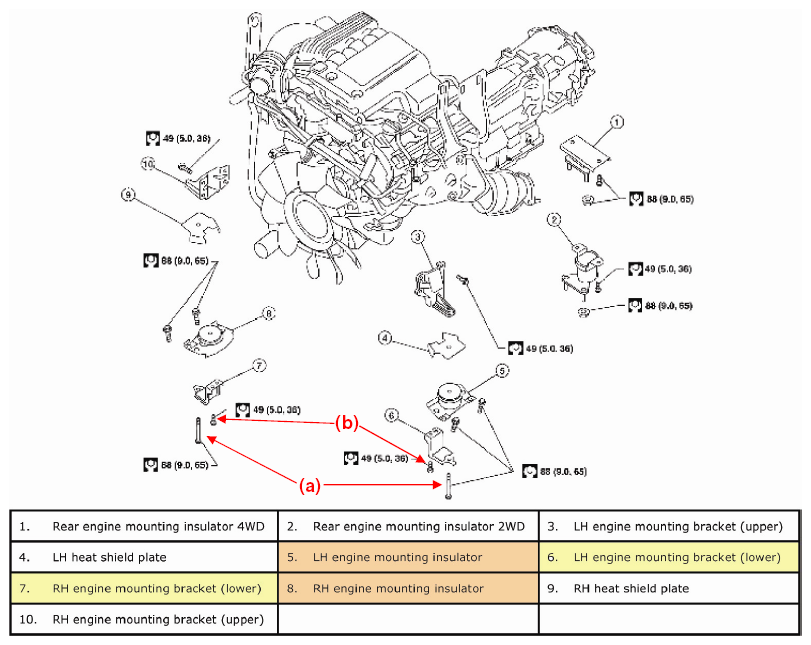

11510-82Z10	MOUNTING, ENG FR	2	Ref # 5 & 8 engine mounting insulator
11516-82Z20	STOPPER, ENG MTG FR	2	Ref # 6 & 7 engine mounting bracket (lower)
11513-82Z40	BOLT	2	Ref (a) Torque to 65 lbf-ft (88 Nm, 9.0 Kgf-m)
11513-82Z00	BOLT	4	Ref (b) Torque to 36 lbf-ft (49 Nm, 5.0 Kgf-m)
