Expansion Valve: Removal and Installation: Removal

Discharge the refrigerant. Refer to [HFC-134A (R-134A) SERVICE PROCEDURE ].
Remove the high-pressure pipe and low-pressure pipe bolt (A) from the front expansion valve (1).

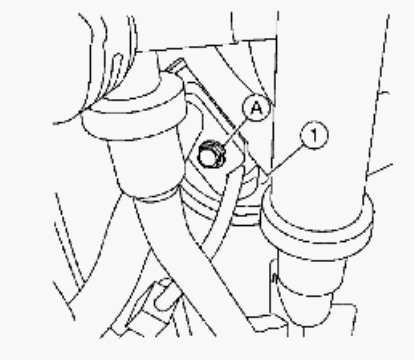

Fig 1: Identifying High/Low Pressure Pipe Bolt & Front Expansion Valve
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Cap or wrap the A/C refrigerant pipe ends and the evaporator pipe ends with a suitable material such as vinyl tape to avoid the entry of air and contaminants.
Remove the front expansion valve bolts (A).

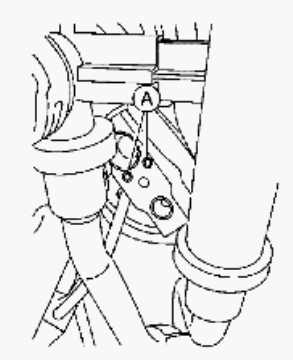

Fig 2: Identifying Front Expansion Valve Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the expansion valve.
