Compressor: Removal and Installation: Components

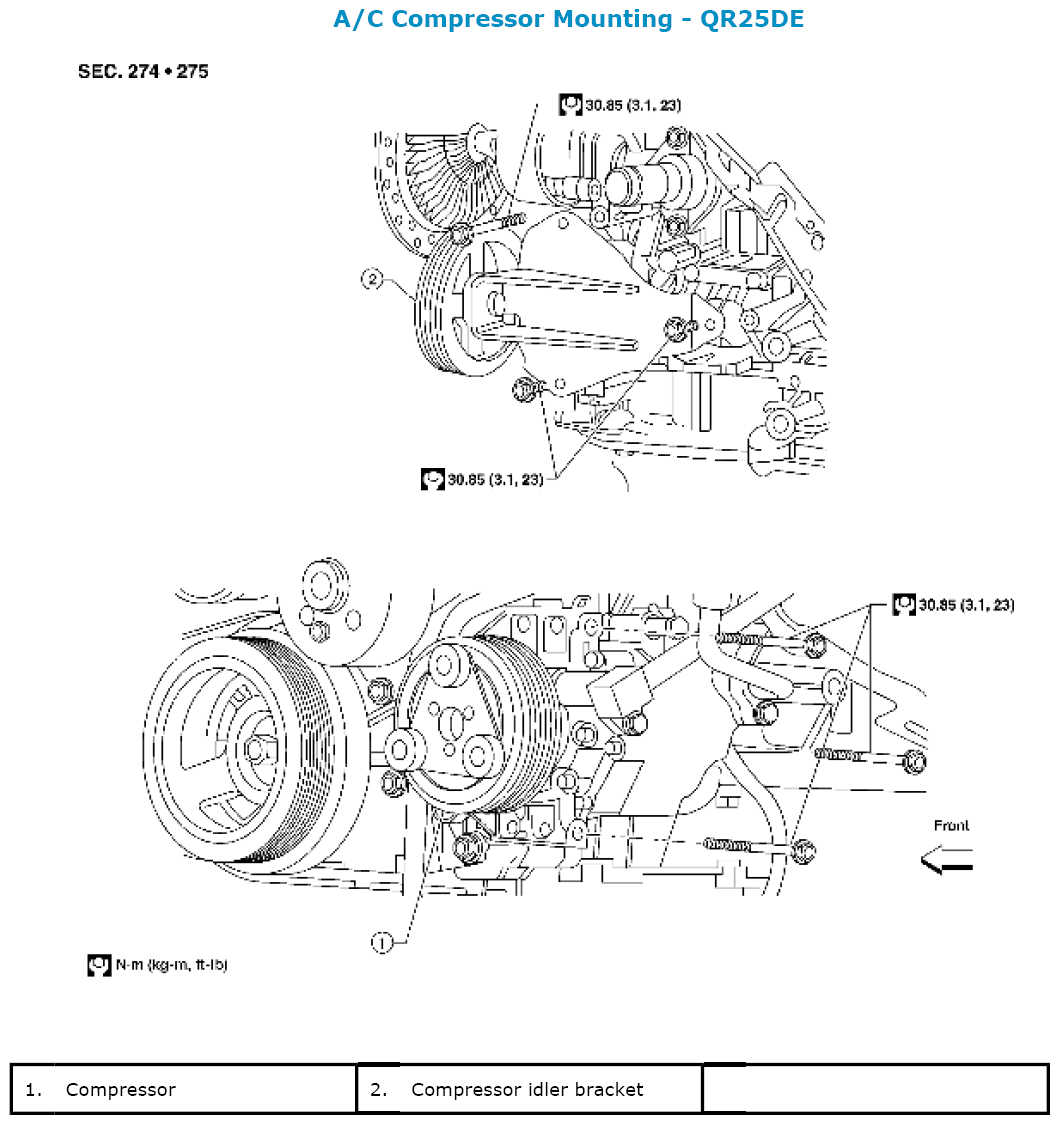

Fig 1: Identifying A/C Compressor Mounting Components - QR25DE
G06443263Courtesy of SUZUKI OF AMERICA CORP.

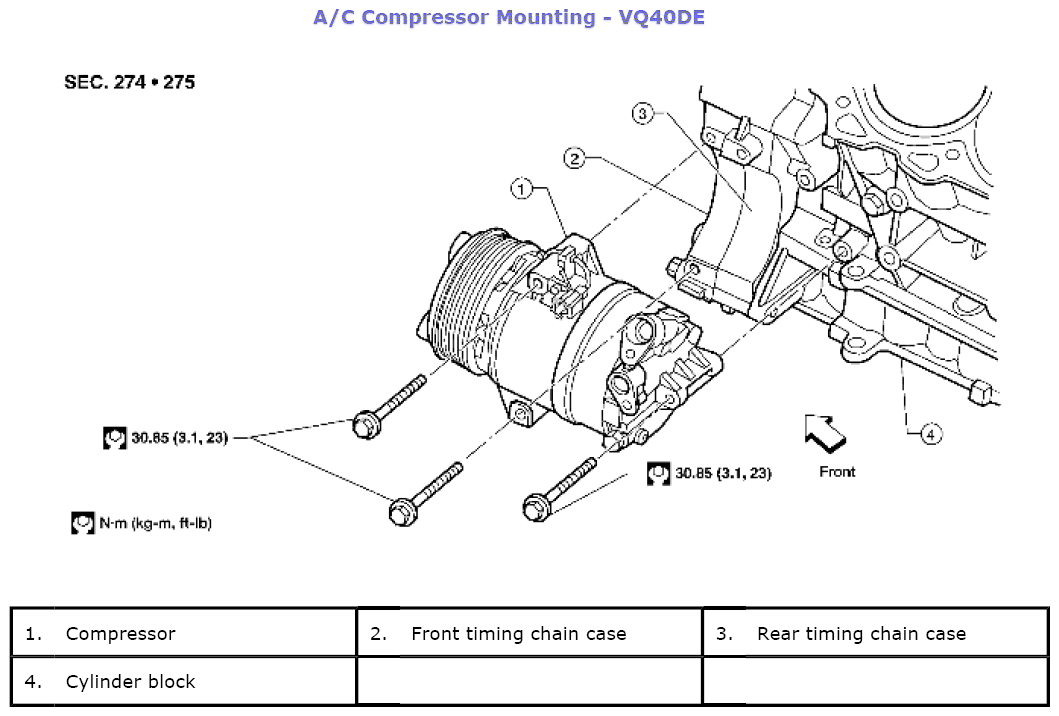

Fig 2: Identifying A/C Compressor Mounting Components - VQ40DE
G06443264Courtesy of SUZUKI OF AMERICA CORP.
