INSTALLATION (A/T models)

WARNING: This page is about a different variant/trim than selected.

Installation is in the reverse order of removal.

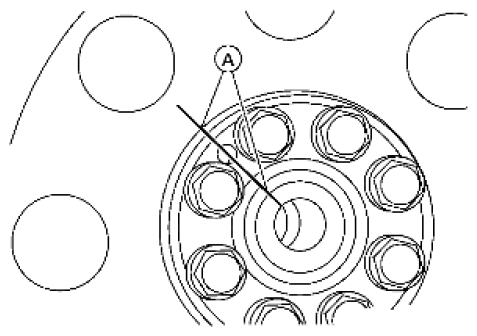

- When installing the drive plate to the crankshaft, use the match mark (A) as shown to correctly align the crankshaft side dowel pin to the drive plate side dowel pin hole.

  Fig 1: Identifying Match Mark On Drive Plate
  Courtesy of SUZUKI OF AMERICA CORP.

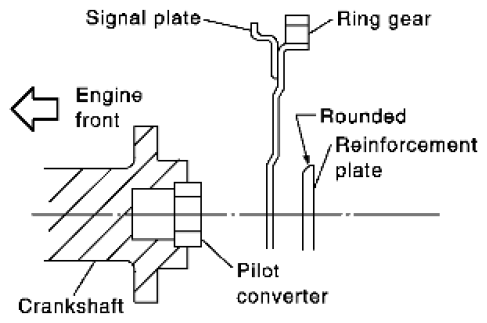

- Install the drive plate and the reinforcement plate in the direction as shown.

  Fig 2: Installing Drive Plate And Reinforcement Plate
  Courtesy of SUZUKI OF AMERICA CORP.
- Tighten the drive plate bolts in a diagonal pattern in two steps. Refer to [ENGINE UNIT: DISASSEMBLY AND ASSEMBLY ].
