Rear Oil Seal: Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the rear propeller shaft. Refer to [PROPELLER SHAFT: REMOVAL AND INSTALLATION ] (2S1330) or [REAR PROPELLER SHAFT: REMOVAL AND INSTALLATION ] (3S1330-2BJ100).
Remove the dust cover from the rear case.

Fig 1: Identifying Dust Cover
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Do not damage the rear case.
Remove the oil cover from the dust cover.
Remove the rear oil seal from the rear case using Tool.

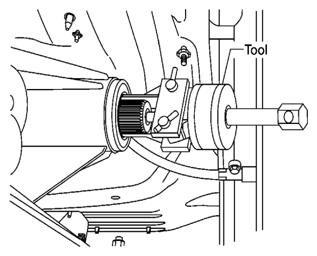

Fig 2: Removing Rear Oil Seal From Rear Case Using Tool
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Do not damage the rear case.

Tool number: ST33290001 (J-34286)
