Rear Oil Seal: Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Install the new rear oil seal until it is flush with the end face of the rear case using Tool.

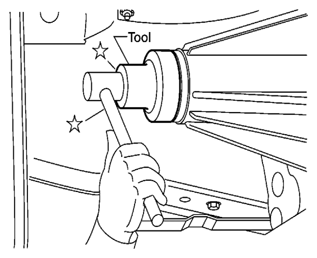

Fig 1: Installing Rear Oil Seal
Courtesy of SUZUKI OF AMERICA CORP.

Tool number: KV38100500 (-)
CAUTION:
- Do not reuse oil seal.
- Apply petroleum jelly to oil seal.
Install the oil cover until it reaches the end face of the new dust cover.
CAUTION: Position the oil cover with the notch at bottom position.
Apply petroleum jelly to the circumference of the new dust cover. Position the new dust cover using the identification mark as shown.

Fig 2: Identifying Dust Cover Identification Mark
Courtesy of SUZUKI OF AMERICA CORP.
CAUTION:
- Do not reuse dust cover.
- Position the identification mark at the position shown.
- 1: Dust cover
- A: Protrusions
- 2: Rear case assembly
Install the new dust cover to the rear case using Tool.

Fig 3: Installing Dust Cover To Rear Case Using Tool
Courtesy of SUZUKI OF AMERICA CORP.

Tool number: KV40105310 (-)
CAUTION:
- Do not reuse dust cover.
- Apply petroleum jelly to dust cover.
Install the rear propeller shaft. Refer to [PROPELLER SHAFT: REMOVAL AND INSTALLATION ] (2S1330) or [REAR PROPELLER SHAFT: REMOVAL AND INSTALLATION ] (3S1330-2BJ100).
Refill the transfer with fluid and check for fluid leakage and fluid level. Refer to [TRANSFER FLUID: INSPECTION ].
