Front Oil Seal: Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the front propeller shaft. Refer to [PROPELLER SHAFT: REMOVAL AND INSTALLATION ]
Remove the companion flange self-lock nut using suitable tool.

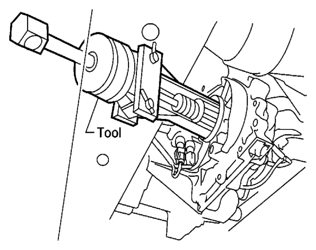

Fig 1: Removing Companion Flange Self-Lock Nut Using Tool
Courtesy of SUZUKI OF AMERICA CORP.

Tool number: KV40104000 (-)
Put a matching mark on top of the front drive shaft in line with the mark on the companion flange.

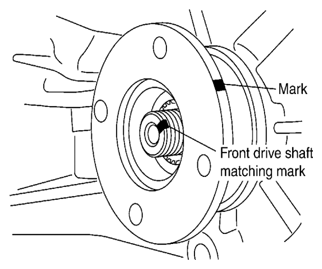

Fig 2: Identifying Matching Mark On Top Of Front Drive Shaft And Companion Flange
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Use paint to make the matching mark on the front drive shaft. Do not damage the front drive shaft.
Remove the companion flange using suitable tool.

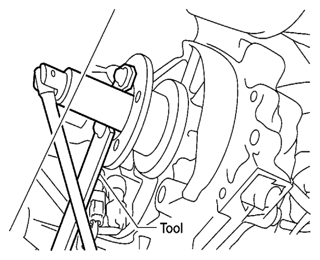

Fig 3: Removing Companion Flange Using Suitable Tool
Courtesy of SUZUKI OF AMERICA CORP.
Remove the front oil seal from the front case using Tool.

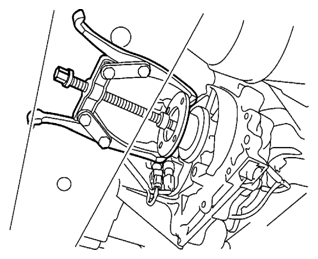

Fig 4: Removing Front Oil Seal From Front Case Using Tool
Courtesy of SUZUKI OF AMERICA CORP.

Tool number: ST33290001 (J-34286)

CAUTION: Do not damage front case.
