Air Breather Hose: Removal and Installation

WARNING: This page is about a different variant/trim than selected.

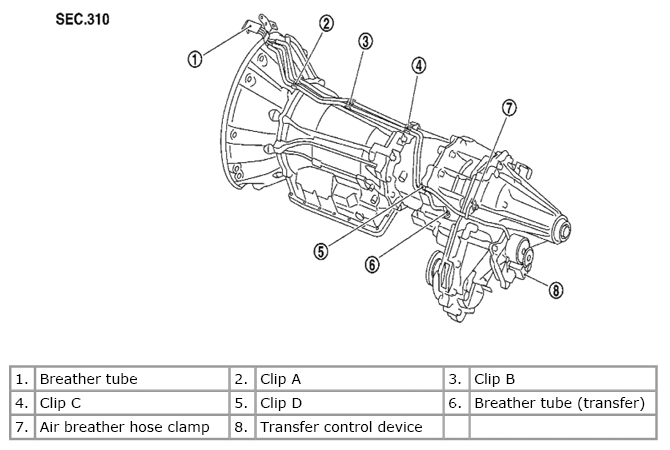

Fig 1: Identifying Air Breather Hose And Clip

Courtesy of SUZUKI OF AMERICA CORP.

CAUTION:

Make sure there are no pinched or restricted areas on each air breather hose caused by folding or bending when installing it.
Install each air breather hose into the breather tube (metal connector) until the hose end reaches the end of the curved section. Set each air breather hose with paint mark facing upward.

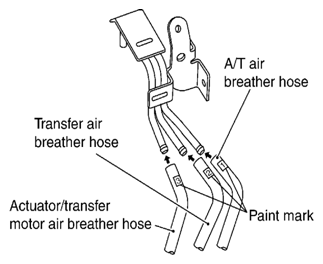

Fig 2: Identifying Air Breather Hose And Breather Tube
Courtesy of SUZUKI OF AMERICA CORP.
Install transfer control device air breather hose and transfer air breather hose on clip A and clip B with the paint mark facing upward.

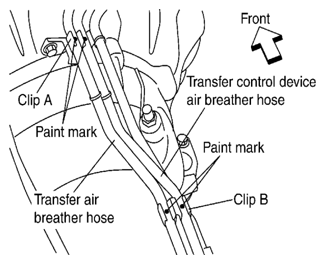

Fig 3: Identifying Transfer Control Device Air Breather Hose And Transfer Air Breather Hose
Courtesy of SUZUKI OF AMERICA CORP.
Install clip C on transfer control device air breather hose and transfer air breather hose with the paint mark matched.

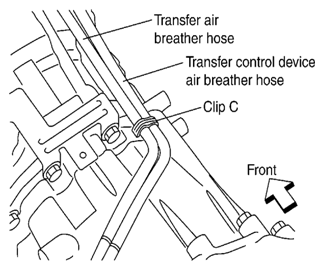

Fig 4: Identifying Clip C, Transfer Control Device Air Breather Hose And Transfer Air Breather Hose
Courtesy of SUZUKI OF AMERICA CORP.
Install transfer control device air breather hose and transfer air breather hose on clip D with the paint mark facing upward.

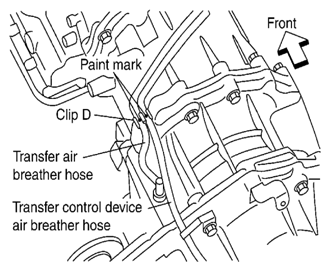

Fig 5: Identifying Transfer Control Device Air Breather Hose, Transfer Air Breather Hose And Clip D
Courtesy of SUZUKI OF AMERICA CORP.
Install transfer air breather hose into the breather tube (transfer, metal connector) until the hose end reaches the base of the tube. Set transfer air breather hose with paint mark facing upward.

Fig 6: Identifying Transfer Air Breather Hose And Paint Mark
Courtesy of SUZUKI OF AMERICA CORP.
Install transfer control device air breather hose into transfer control device (case connector) until the hose end reaches the base of the tube. Set transfer control device air breather hose with paint mark facing forward.

Fig 7: Identifying Transfer Control Device Air Breather Hose And Paint Mark
Courtesy of SUZUKI OF AMERICA CORP.
