Daytime Running Lamps (DRL) Resistor Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

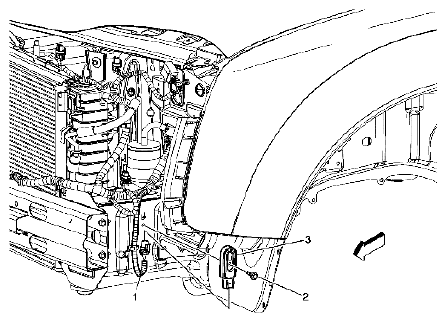

Fig 1: Identifying Forward Lamp Wiring Harness Assembly, Daytime Running Lamp Resistor Assembly & Bolt

Courtesy of SUZUKI OF AMERICA CORP.

DAYTIME RUNNING LAMPS (DRL) RESISTOR REPLACEMENT REFERENCE

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to FRONT BUMPER FASCIA REPLACEMENT .
1	Forward Lamp Wiring Harness Assembly
2	Daytime Running Lamp Resistor Assembly Bolt CAUTION: Refer to FASTENER NOTICE . Tightening torque 10 N.m (89 lb in)
3	Daytime Running Lamp Resistor Assembly Procedure Disconnect the electrical connector.
