Rear Seat Number 2 Cushion Cover and Pad Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

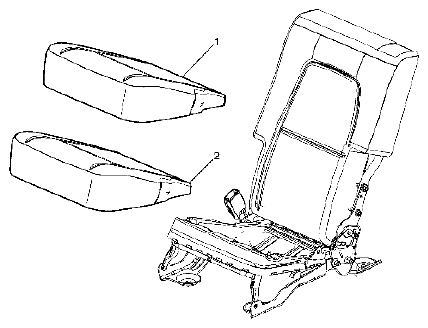

Fig 1: Identifying Rear Seat No. 2 Cushion Cover & Pad

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to REAR NUMBER 2 SEAT REPLACEMENT . Remove the rear seat inner recliner cover. Refer to REAR SEAT BACK RECLINER COVER REPLACEMENT (INNER) and REAR SEAT BACK RECLINER COVER REPLACEMENT (OUTER) . Remove the rear seat back outer finish panel. Remove the seat cushion front finish cover. Refer to REAR SEAT NUMBER 2 CUSHION TRIM PANEL REPLACEMENT .
1	Rear Seat No. 2 Cushion Cover Disconnect the seat cushion cover j-channel from the seat cushion frame.
2	Rear Seat No. 2 Cushion Pad
