Rear Seat Number 2 Back Cushion Panel Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

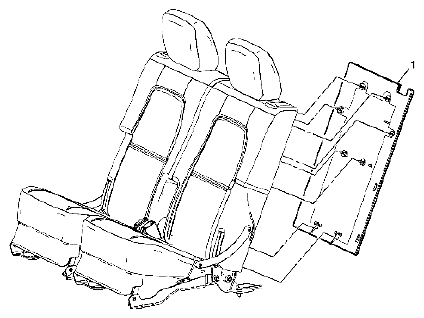

Fig 1: Identifying Rear Seat No. 2 Back Cushion Panel

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS REFERENCE

Callout	Component Name
1	Rear Seat No. 2 Back Panel Procedure Loosen the screws from the recliner handle to allow for easier removal of the panel. Use a J 38778 Door Trim Pad Clip Remover to aid in the removal of the seat back panel. Slide the seat back pull strap through the back panel to remove.
