Rear Seat Latch Finish Cover Replacement
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

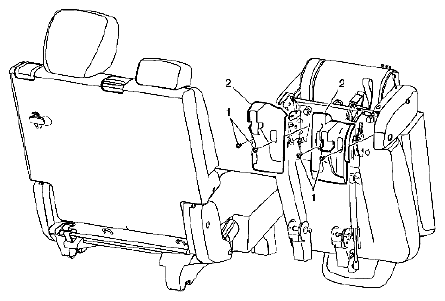

COMPONENTS REFERENCE
| Callout | Component Name |
|---|---|
| 1 | Rear Seat No. 1 Latch Finish Cover Screw (Qty: 4)
CAUTION:
Refer to FASTENER NOTICE
. Tightening torque 2 N.m (18 lb in) Tip: Fold and tumble the seat forward to access the screws and cover. |
| 2 | Rear Seat No. 1 Latch Finish Cover (Qty: 2) |
