Rear Seat Head Restraint Replacement (Inner)
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SUZUKI OF AMERICA CORP. COMPONENTS REFERENCE

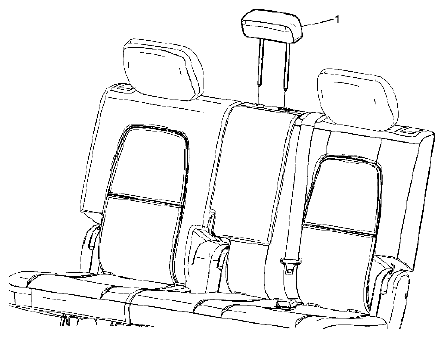

| Callout |
Component Name |
| 1 |
Rear Center Seat Head Restraint
- Push the button in and raise the head restraint to the full-up position.
- Insert a small round tool into the guide hole
- Pull up to remove the head restraint.
|
