Rear Seat Head Restraint Guide Replacement (Inner)

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

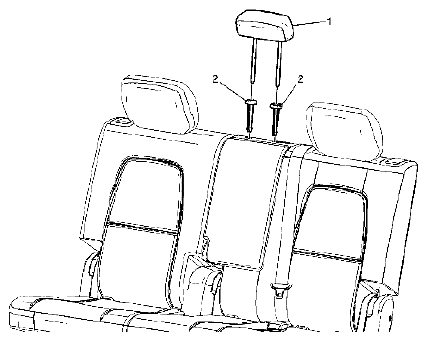

Fig 1: Identifying Rear Seat Center Head Restraint & Guides

Courtesy of SUZUKI OF AMERICA CORP.

REAR SEAT HEAD RESTRAINT GUIDE COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure Remove the rear seat back filler panel. Refer to REAR SEAT BACK FILLER PANEL REPLACEMENT .
1	Rear Seat Center Head Restraint Push the button in and raise the head restraint to the full-up position. Insert a small round tool into the guide hole Pull up to remove the head restraint.
2	Rear Seat Center Head Restraint Guides Disconnect the seat back cover j-channed from the seat back frame. Loosen the bottom of the seat back cover enough to reach up to access the head restraint guides. Squeeze the bottom of the guides together and push upward to remove.
