Intake Valve Timing Control: Intake Valve Timing Control Solenoid Valve: Removal

Disconnect intake valve timing control solenoid valve connector.
Remove intake valve timing control solenoid valve bolt.
Remove intake valve timing control solenoid valve (1) and O-ring (2) from intake valve timing control solenoid valve cover.

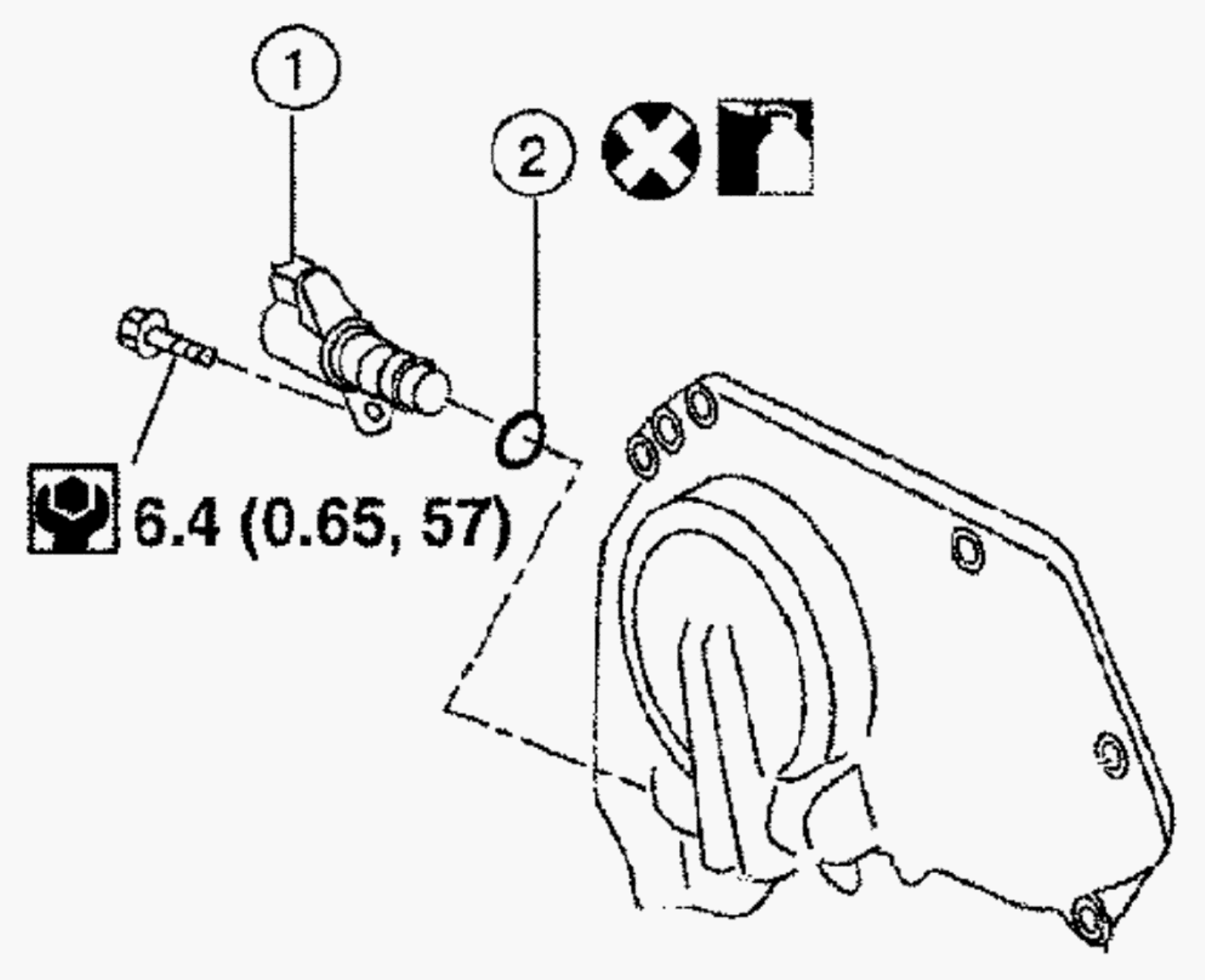

Fig 1: Identifying Intake Valve Timing Control Solenoid Valve & O-Ring
Courtesy of SUZUKI OF AMERICA CORP.
