Radiator: Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Radiator: Exploded View

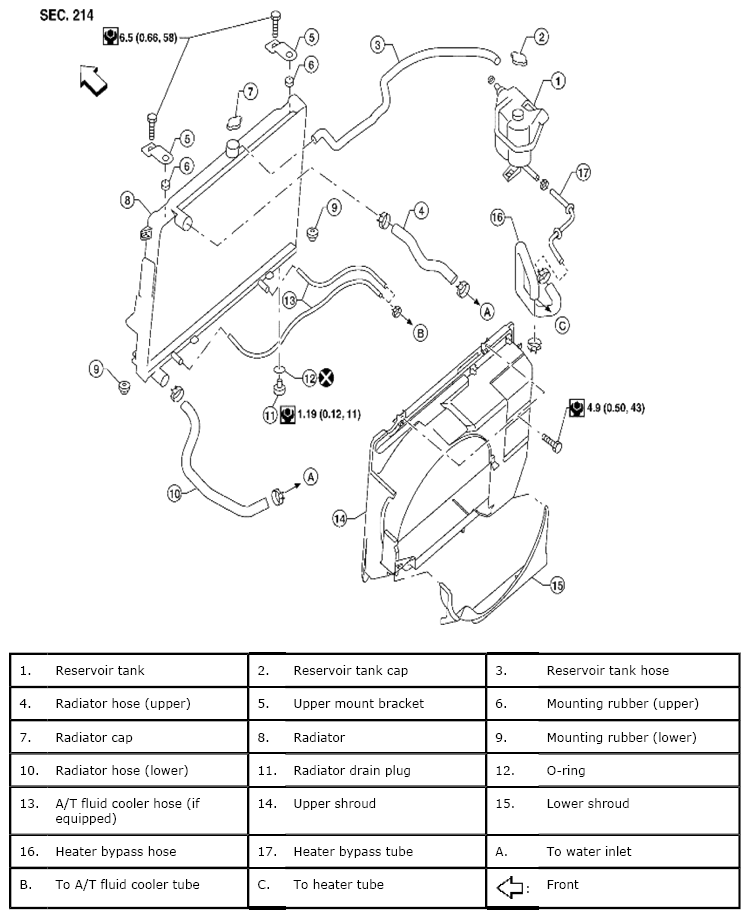

Fig 1: Exploded View Of Radiator
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
