Vehicle Security System: Wiring Diagram [King Cab]

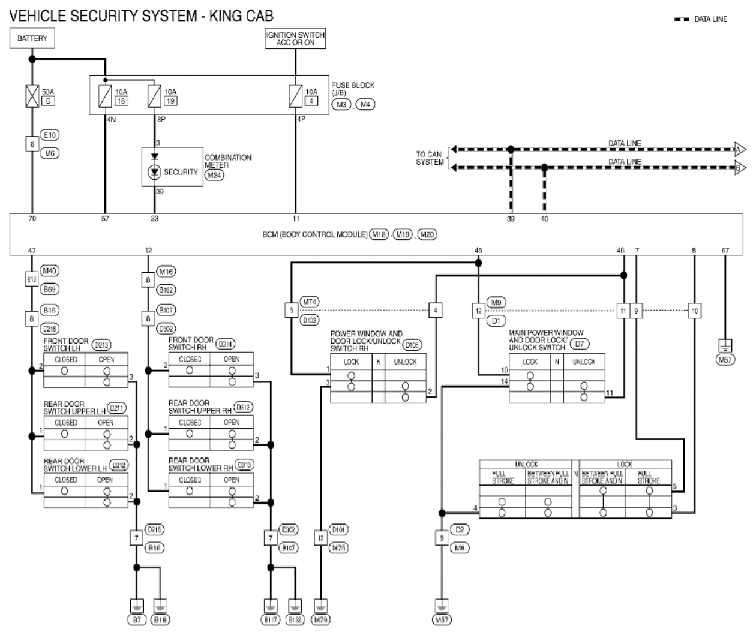

Fig 1: Vehicle Security System - Wiring Diagram [King Cab] (1 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Vehicle Security System - Wiring Diagram [King Cab] (2 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Vehicle Security System - Wiring Diagram [King Cab] (3 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Vehicle Security System - Wiring Diagram [King Cab] (4 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

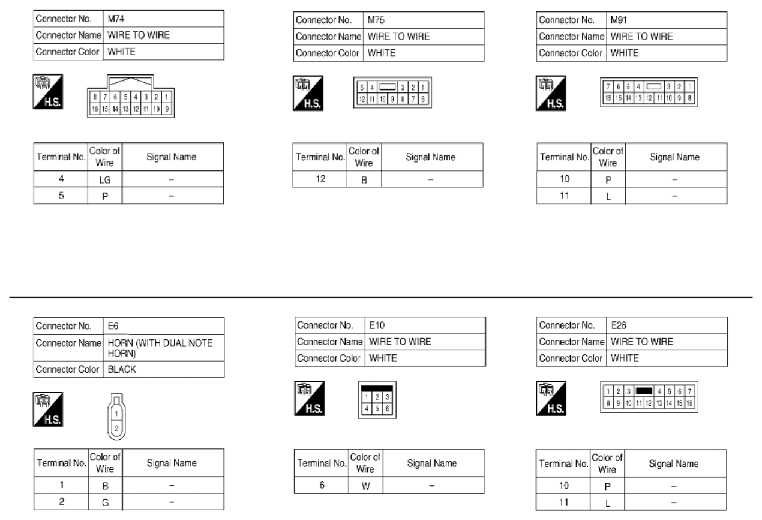

Fig 5: Vehicle Security System - Wiring Diagram [King Cab] (5 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

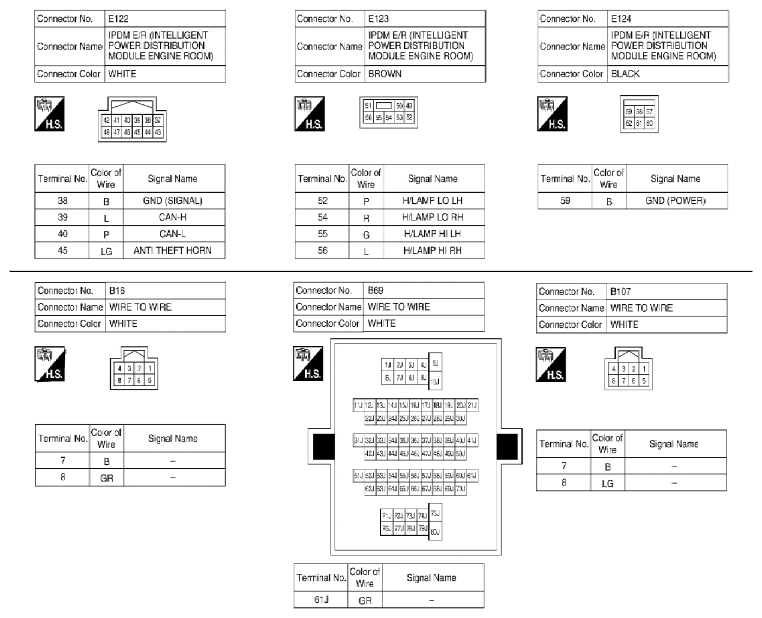

Fig 6: Vehicle Security System - Wiring Diagram [King Cab] (6 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

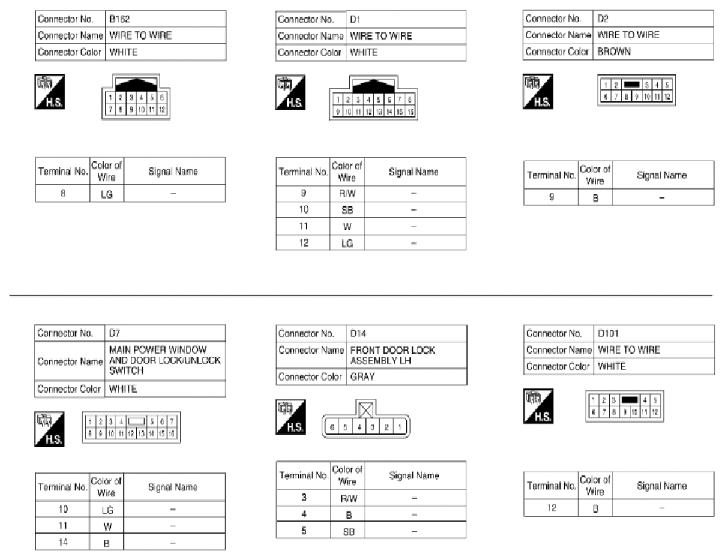

Fig 7: Vehicle Security System - Wiring Diagram [King Cab] (7 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

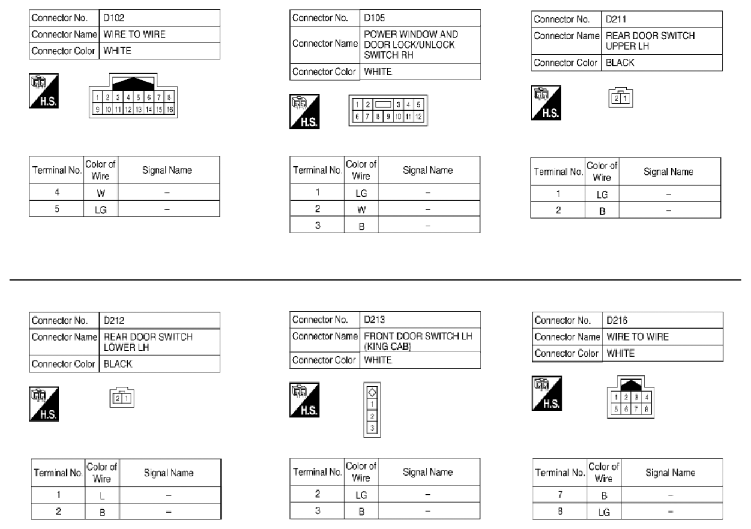

Fig 8: Vehicle Security System - Wiring Diagram [King Cab] (8 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

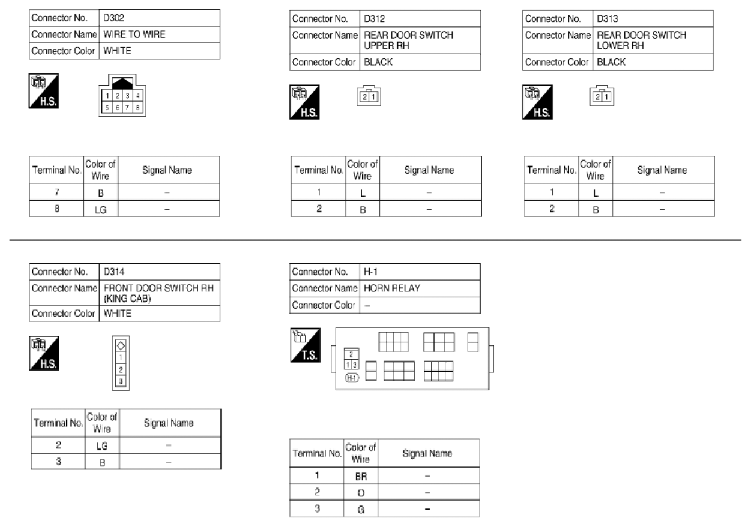

Fig 9: Vehicle Security System - Wiring Diagram [King Cab] (9 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.
