Vehicle Security System: Wiring Diagram [Crew Cab]

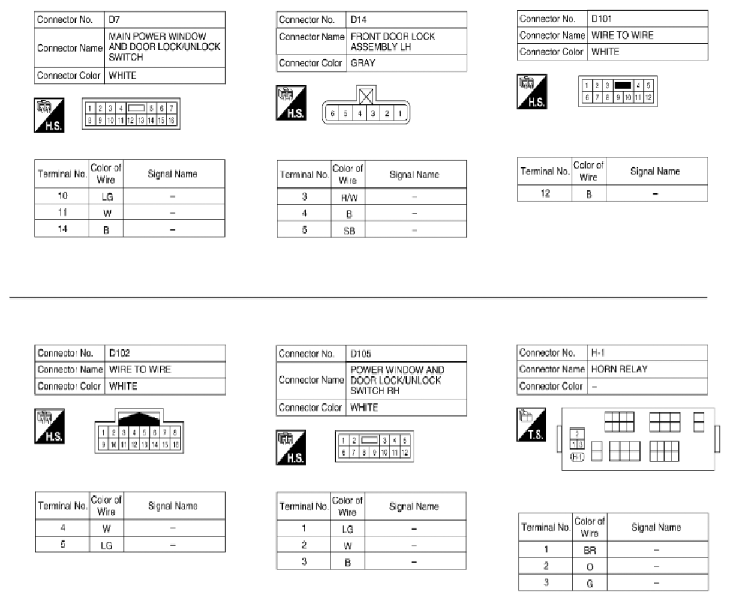

Fig 1: Vehicle Security System - Wiring Diagram [Crew Cab] (1 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

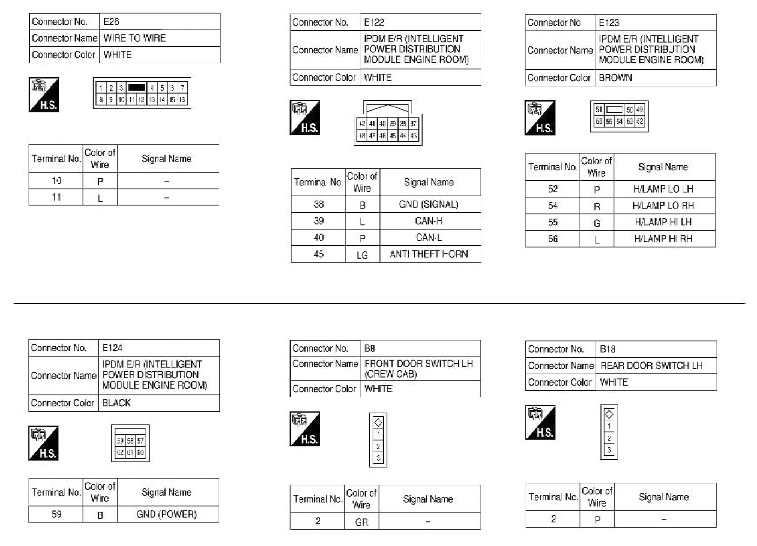

Fig 2: Vehicle Security System - Wiring Diagram [Crew Cab] (2 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

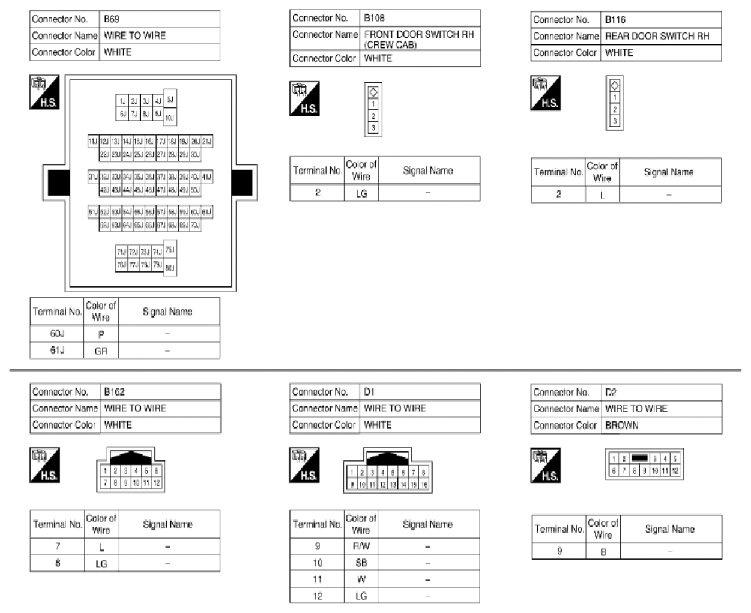

Fig 3: Vehicle Security System - Wiring Diagram [Crew Cab] (3 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

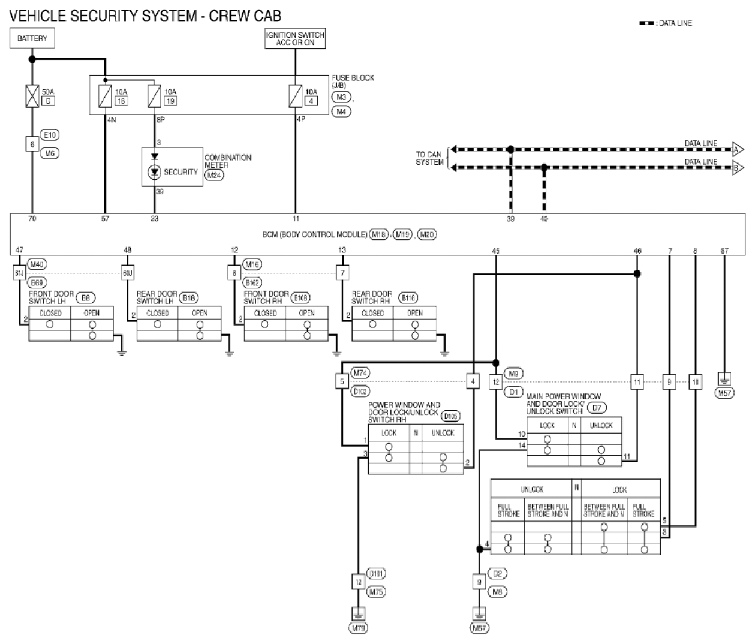

Fig 4: Vehicle Security System - Wiring Diagram [Crew Cab] (4 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

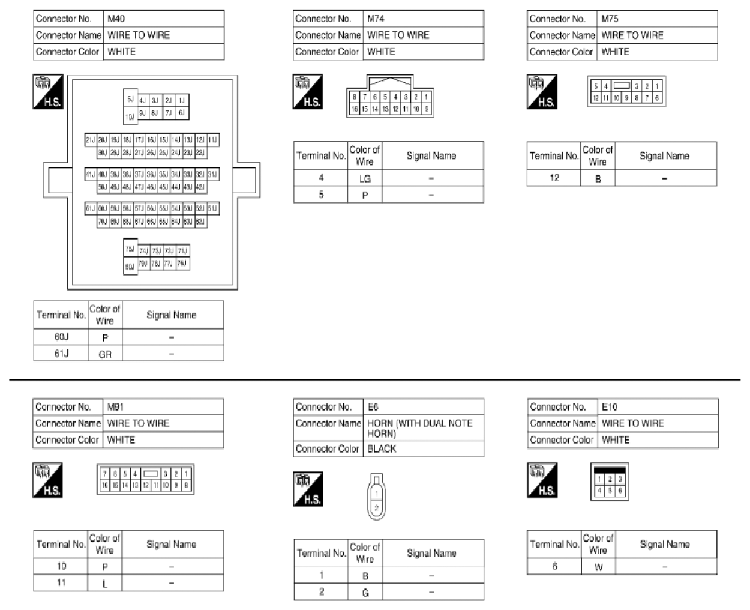

Fig 5: Vehicle Security System - Wiring Diagram [Crew Cab] (5 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 6: Vehicle Security System - Wiring Diagram [Crew Cab] (6 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 7: Vehicle Security System - Wiring Diagram [Crew Cab] (7 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 8: Vehicle Security System - Wiring Diagram [Crew Cab] (8 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.
