VDC without Hill Descent Control/Hill Start Assist: Wiring Diagram

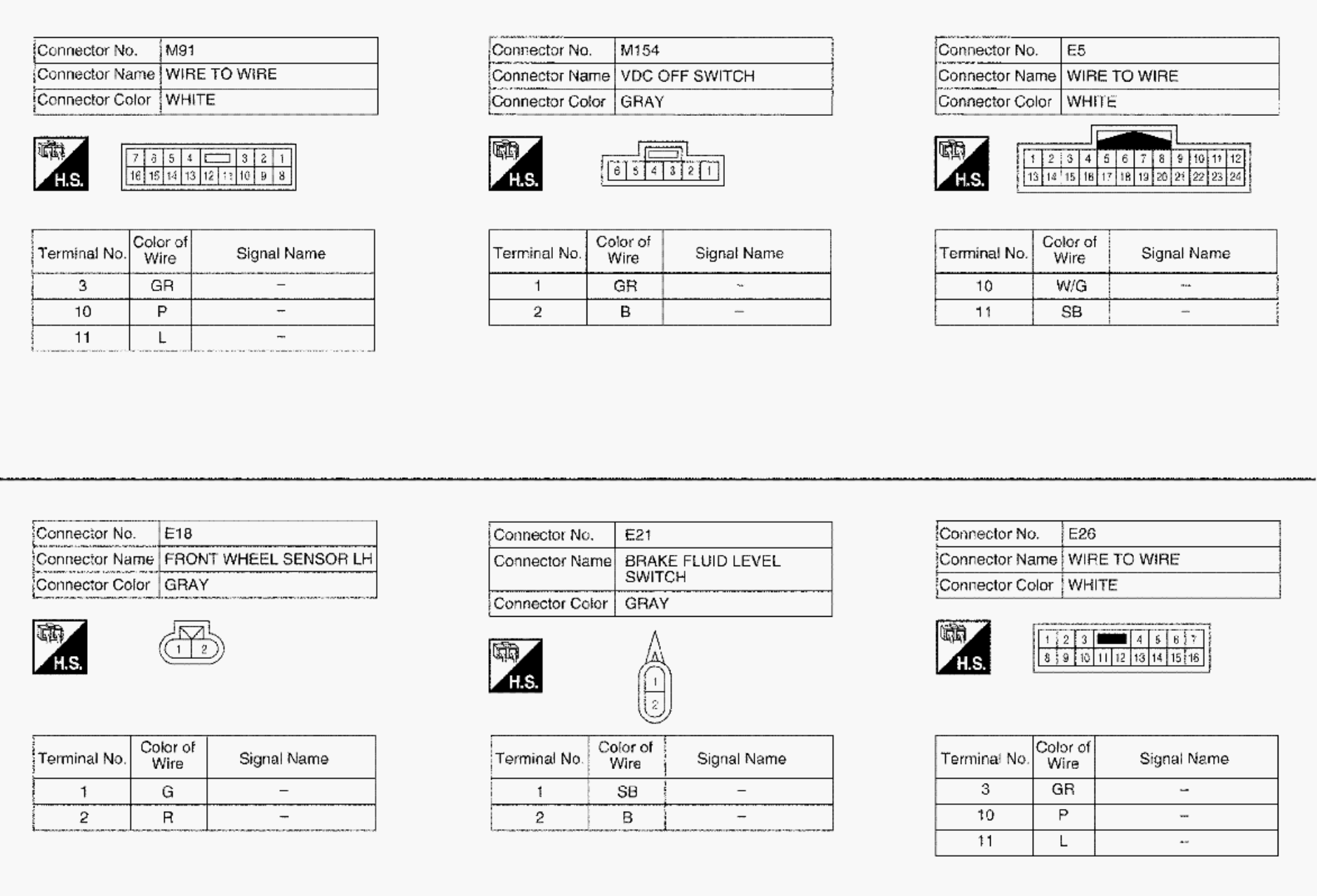

Fig 1: VDC Without Hill Descent Control/Hill Start Assist - Wiring Diagram (1 of 7)

Courtesy of SUZUKI OF AMERICA CORP.

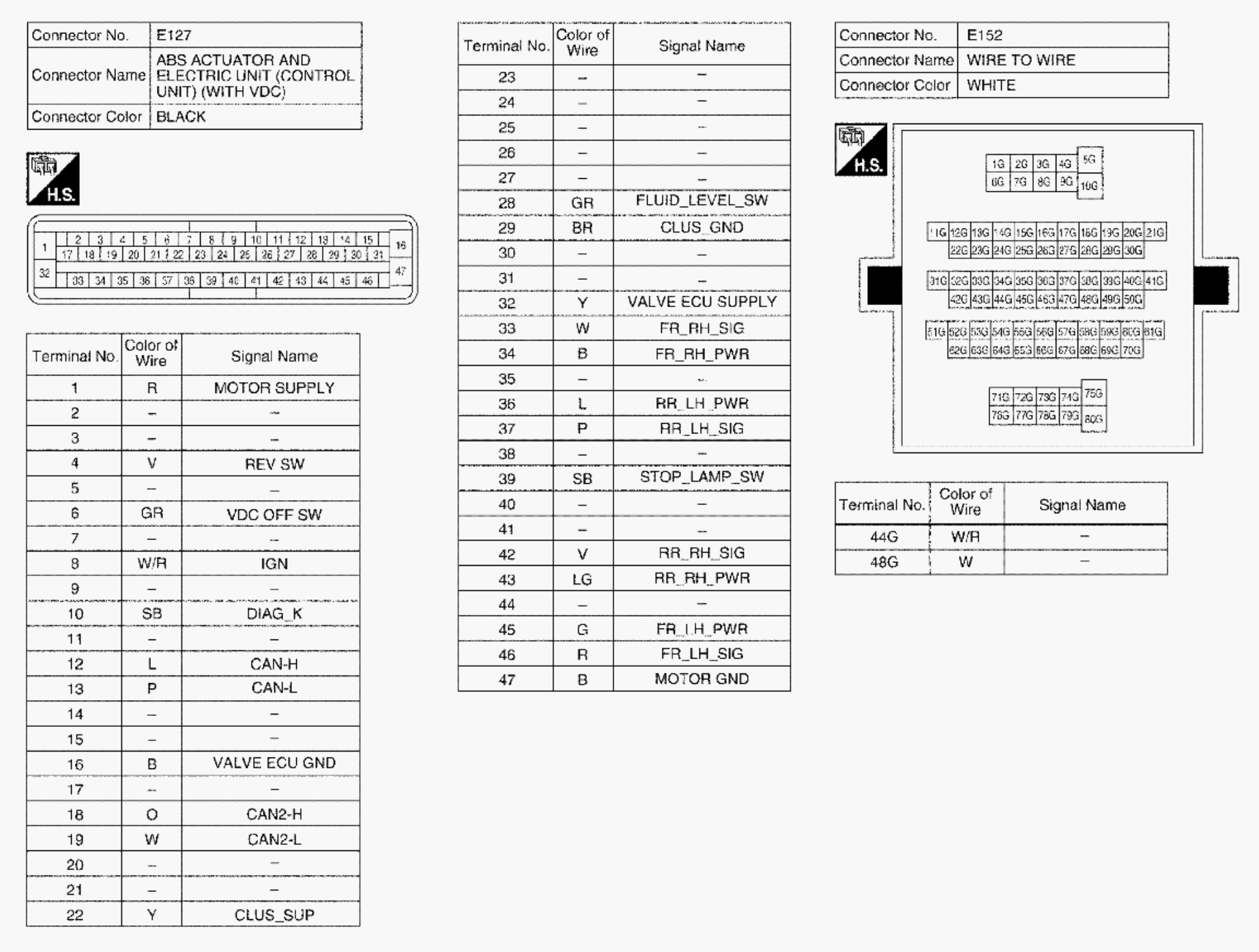

Fig 2: VDC Without Hill Descent Control/Hill Start Assist - Wiring Diagram (2 of 7)

Courtesy of SUZUKI OF AMERICA CORP.

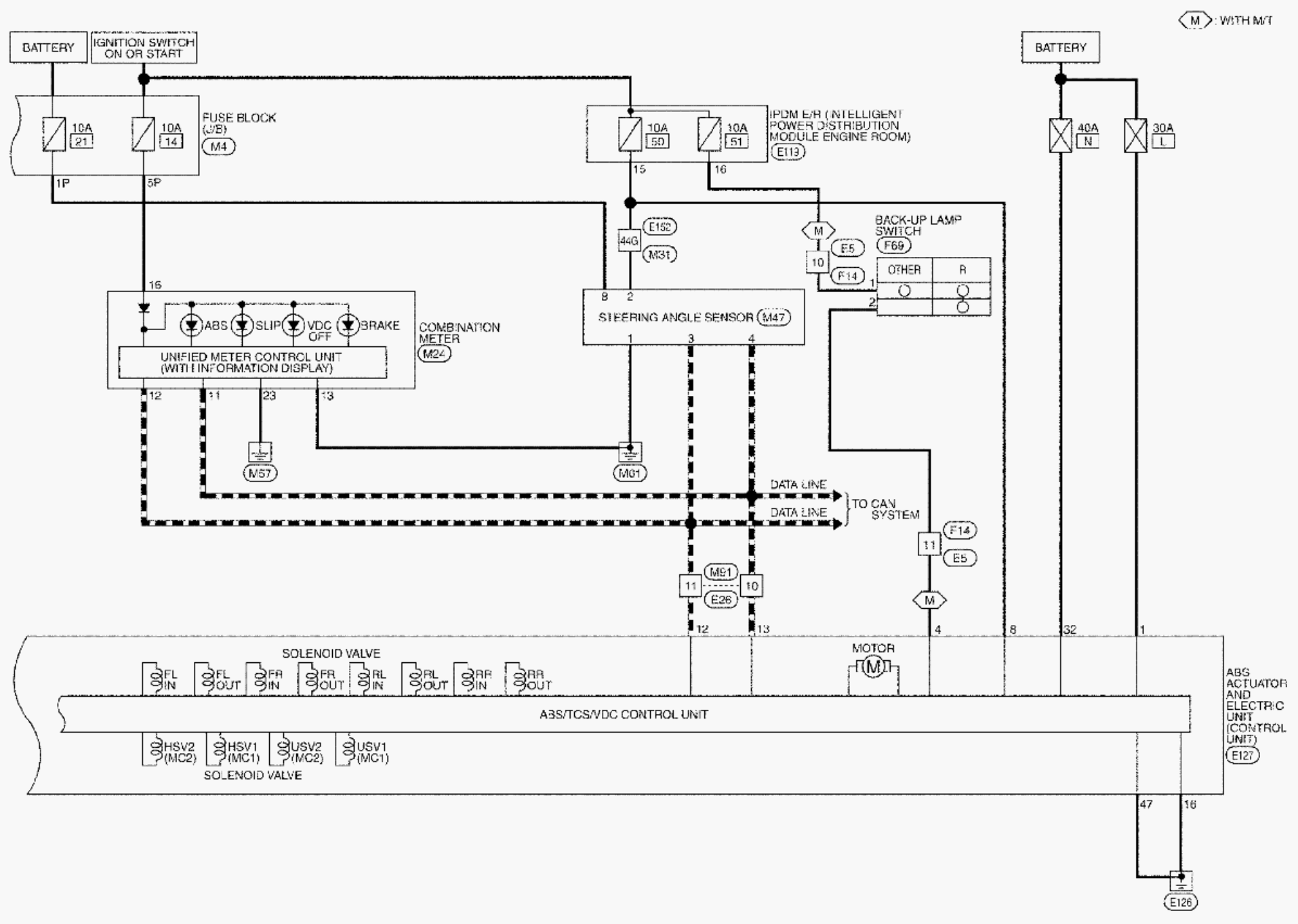

Fig 3: VDC Without Hill Descent Control/Hill Start Assist - Wiring Diagram (3 of 7)

Courtesy of SUZUKI OF AMERICA CORP.

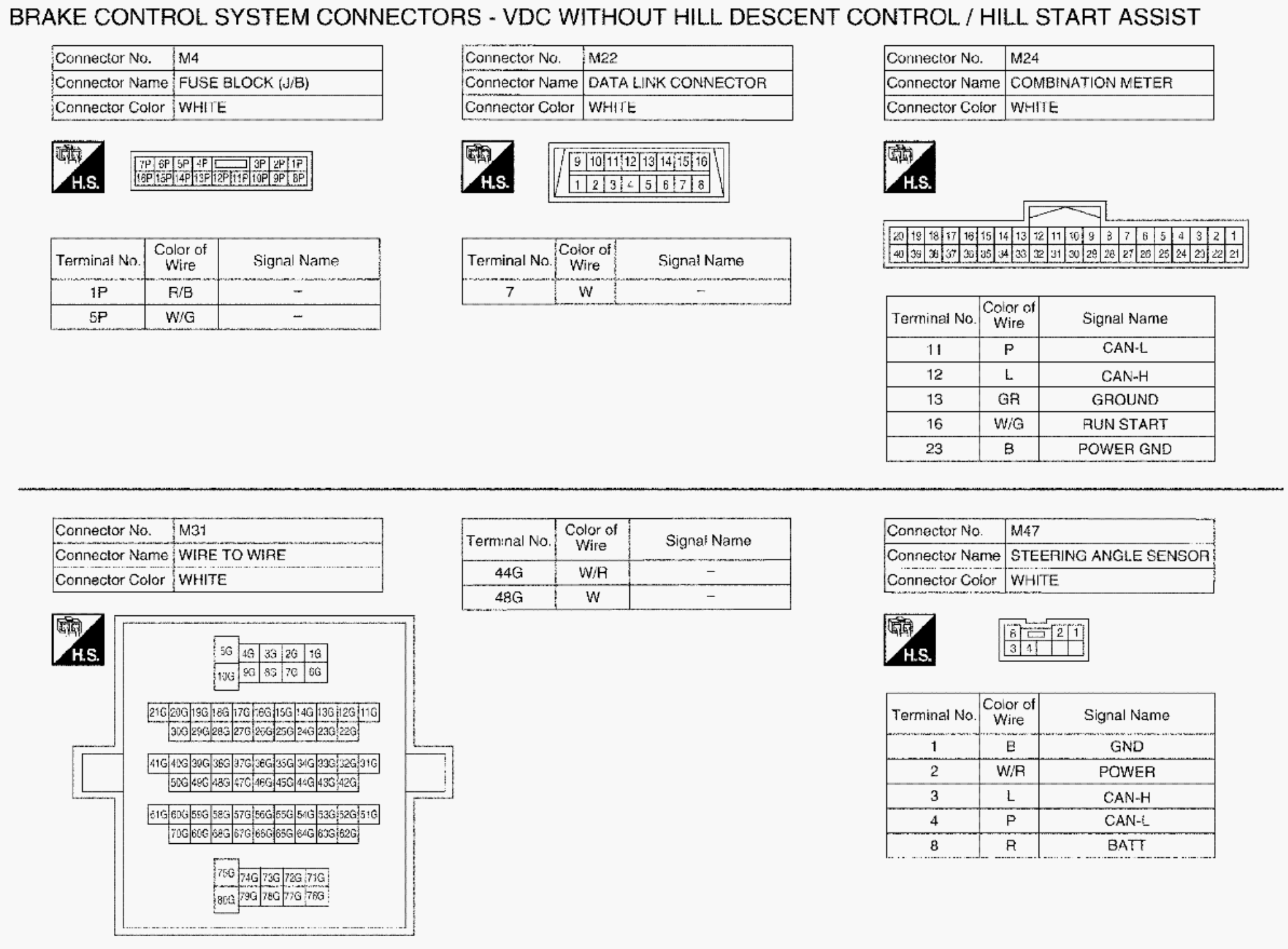

Fig 4: VDC Without Hill Descent Control/Hill Start Assist - Wiring Diagram (4 of 7)

Courtesy of SUZUKI OF AMERICA CORP.

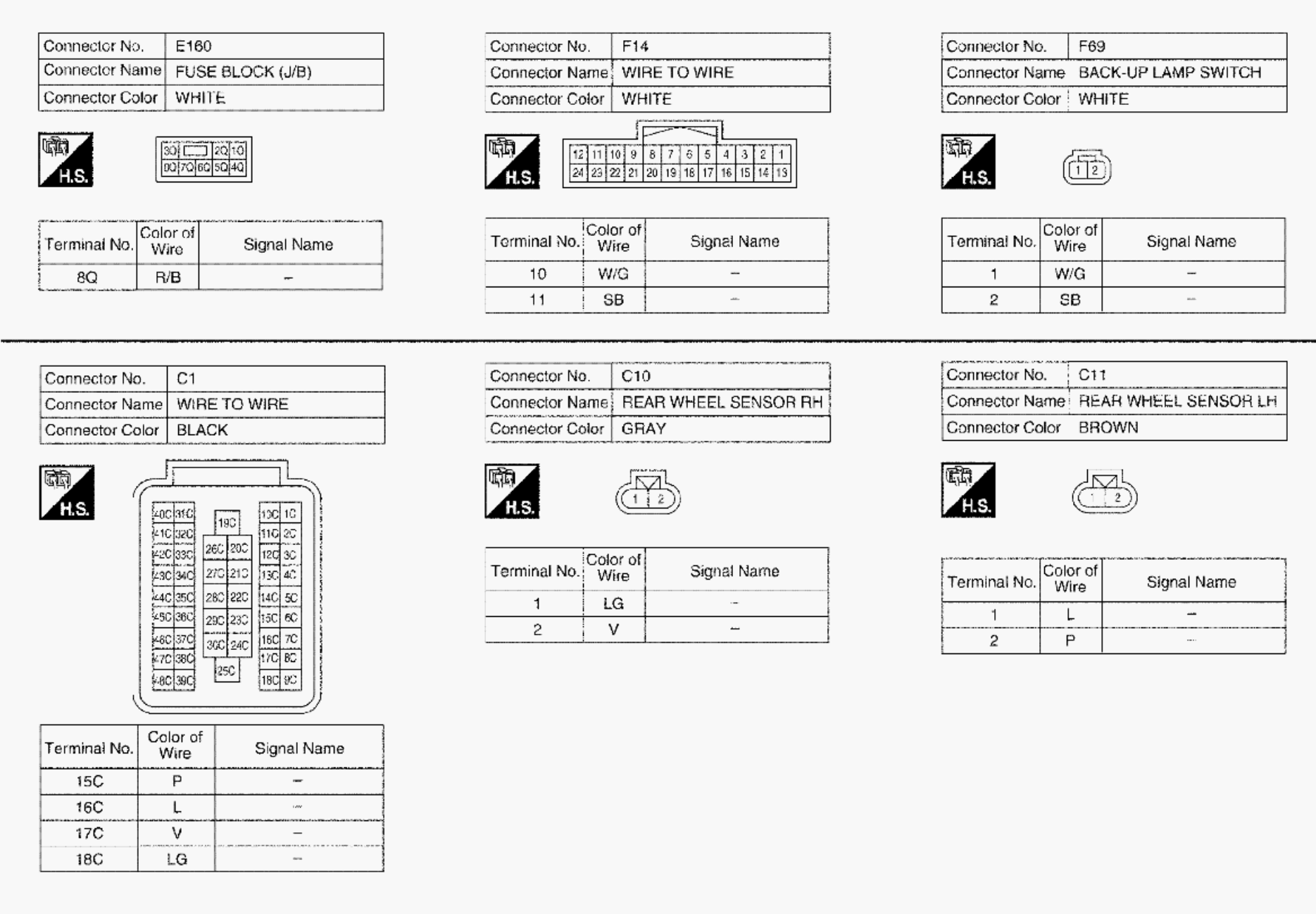

Fig 5: VDC Without Hill Descent Control/Hill Start Assist - Wiring Diagram (5 of 7)

Courtesy of SUZUKI OF AMERICA CORP.

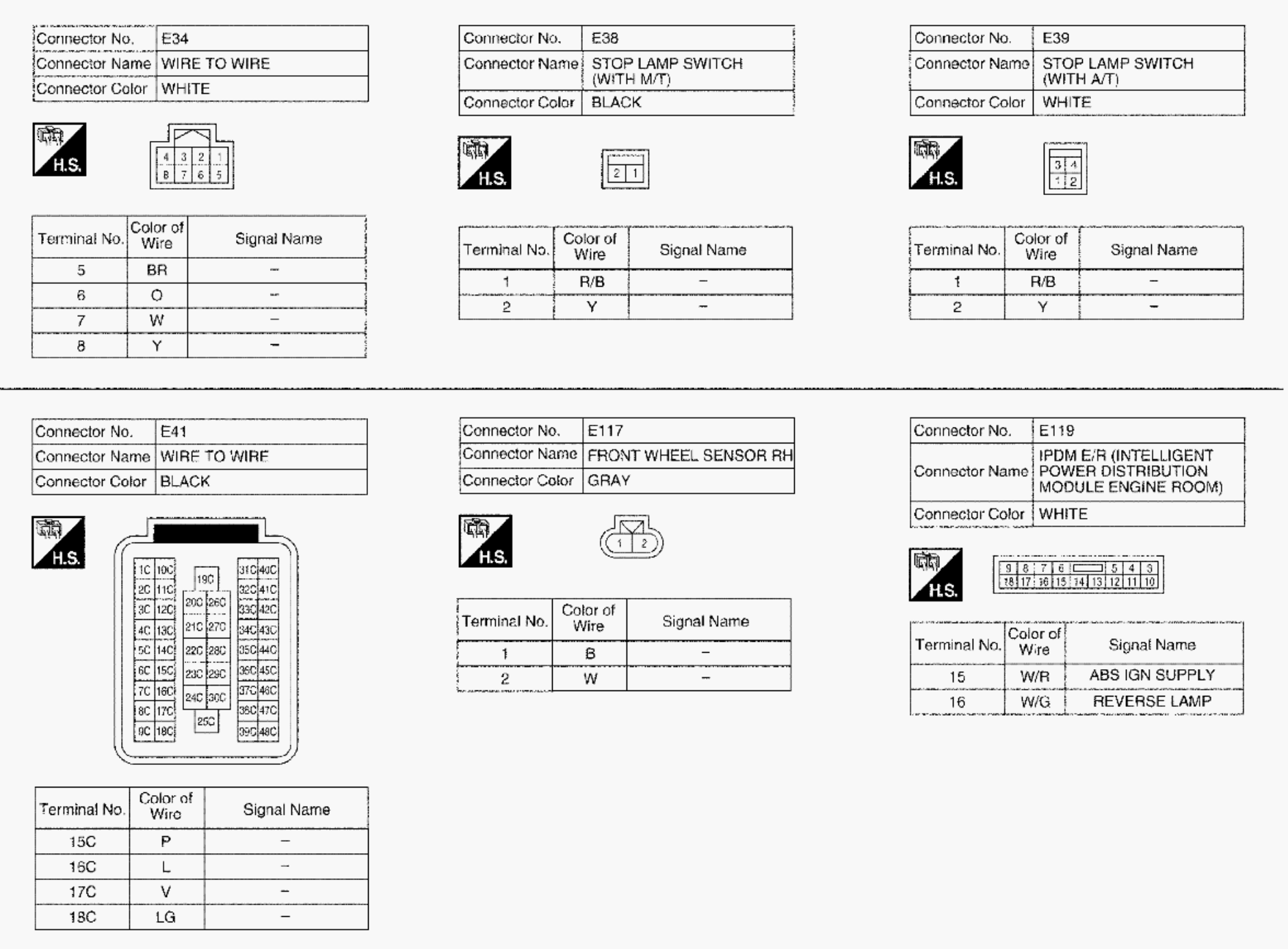

Fig 6: VDC Without Hill Descent Control/Hill Start Assist - Wiring Diagram (6 of 7)

Courtesy of SUZUKI OF AMERICA CORP.

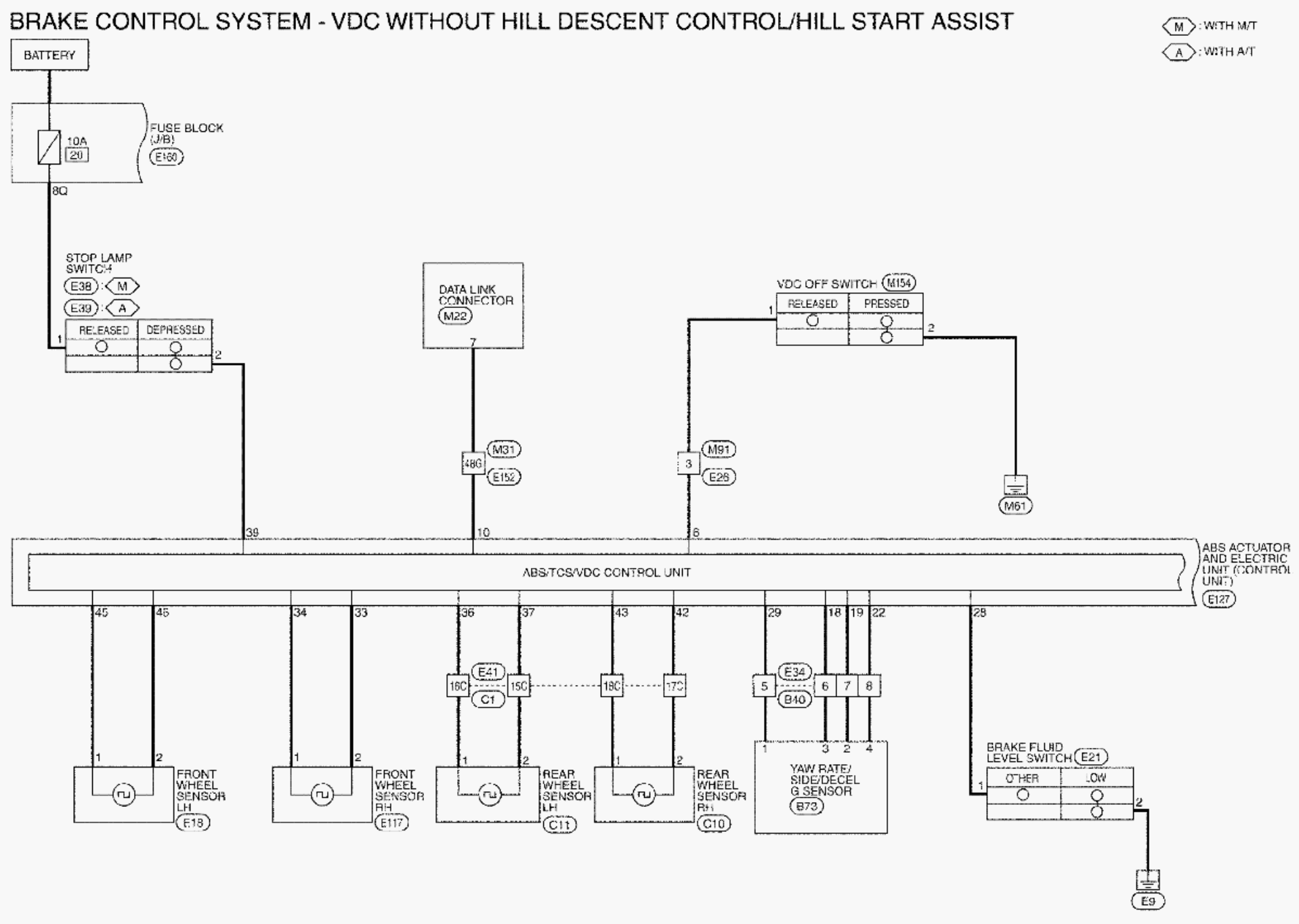

Fig 7: VDC Without Hill Descent Control/Hill Start Assist - Wiring Diagram (7 of 7)

Courtesy of SUZUKI OF AMERICA CORP.
