VDC with Hill Descent Control/Hill Start Assist: Wiring Diagram

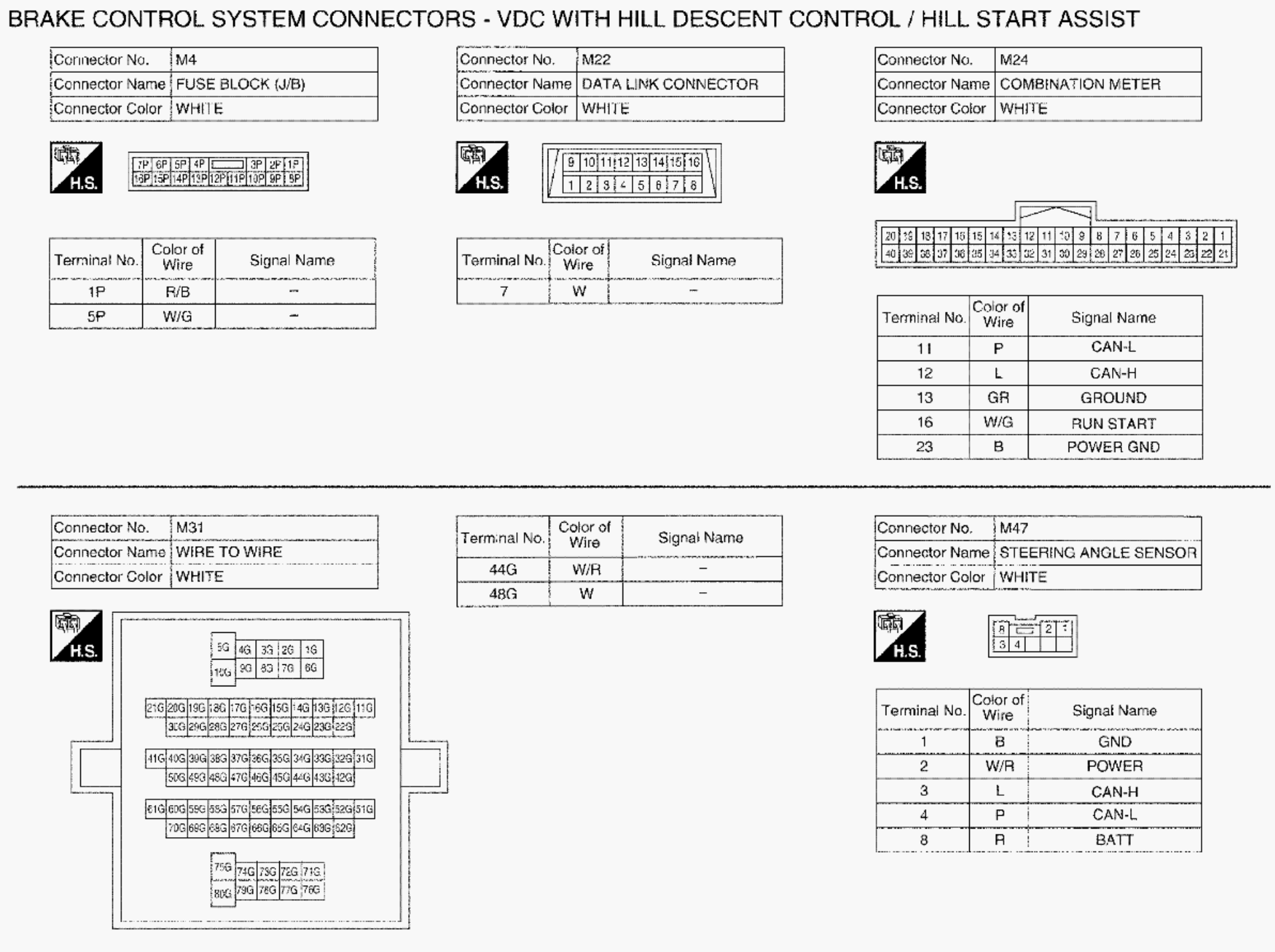

Fig 1: VDC With Hill Descent Control/Hill Start Assist - Wiring Diagram (1 of 6)

Courtesy of SUZUKI OF AMERICA CORP.

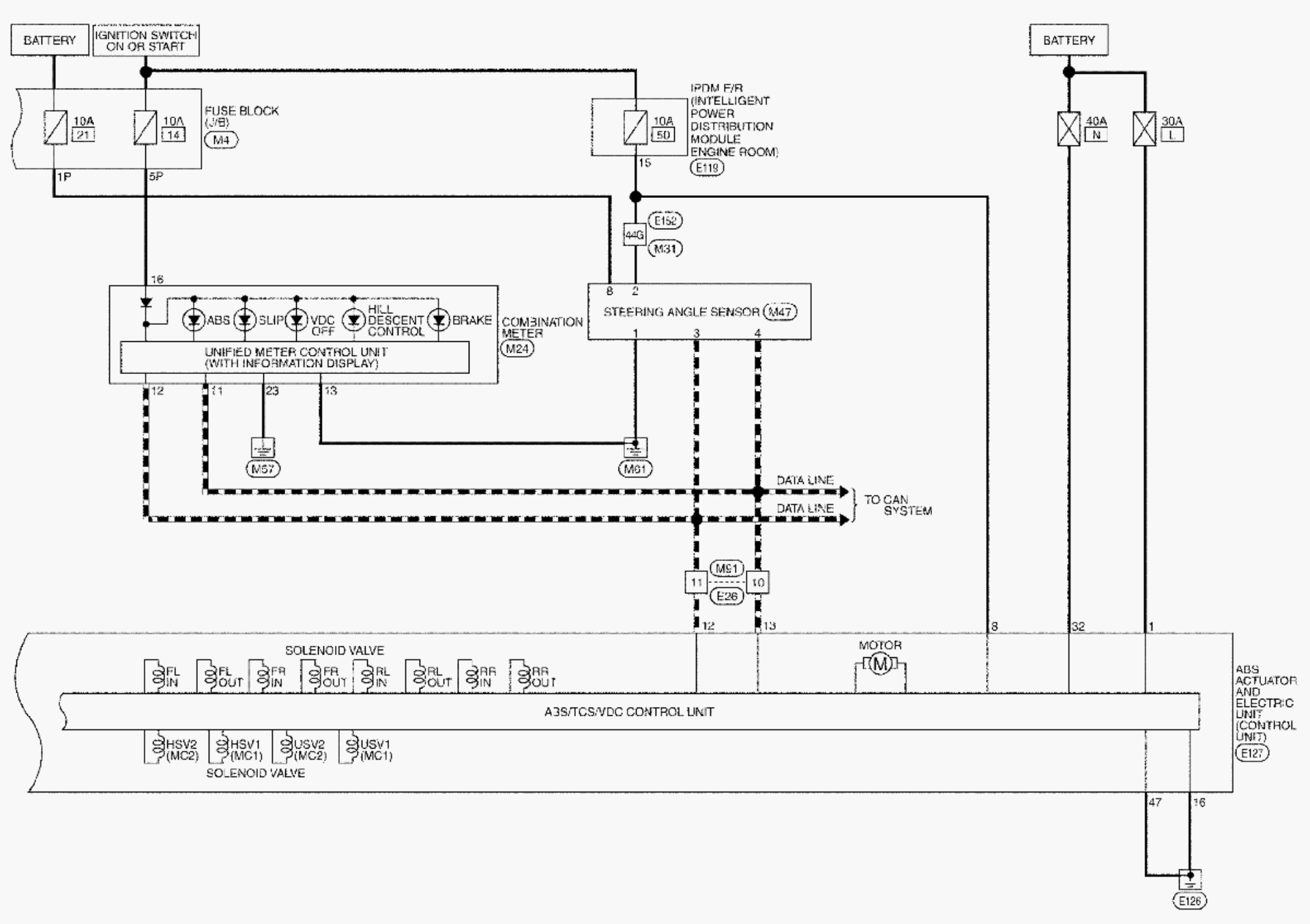

Fig 2: VDC With Hill Descent Control/Hill Start Assist - Wiring Diagram (2 of 6)

Courtesy of SUZUKI OF AMERICA CORP.

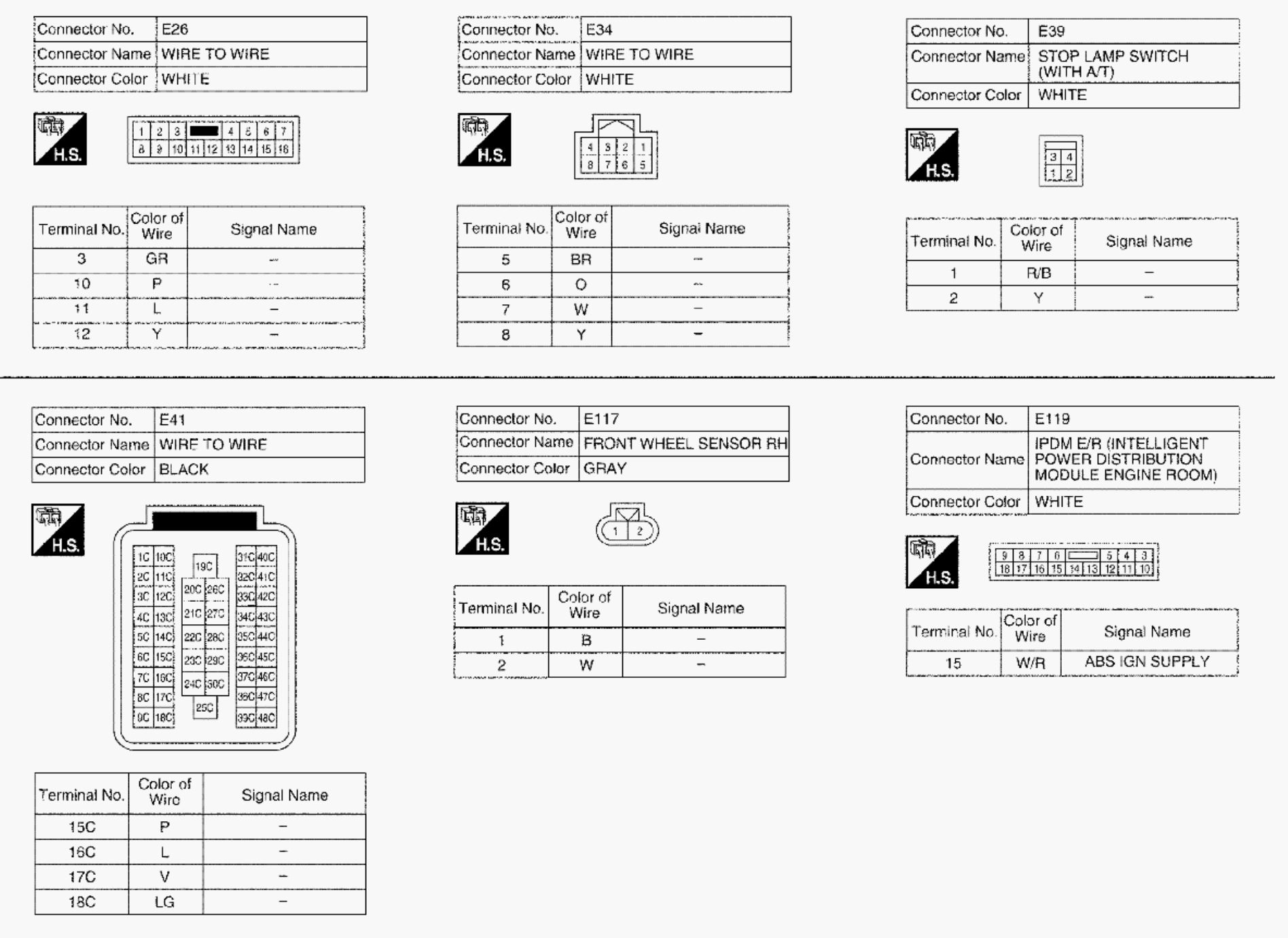

Fig 3: VDC With Hill Descent Control/Hill Start Assist - Wiring Diagram (3 of 6)

Courtesy of SUZUKI OF AMERICA CORP.

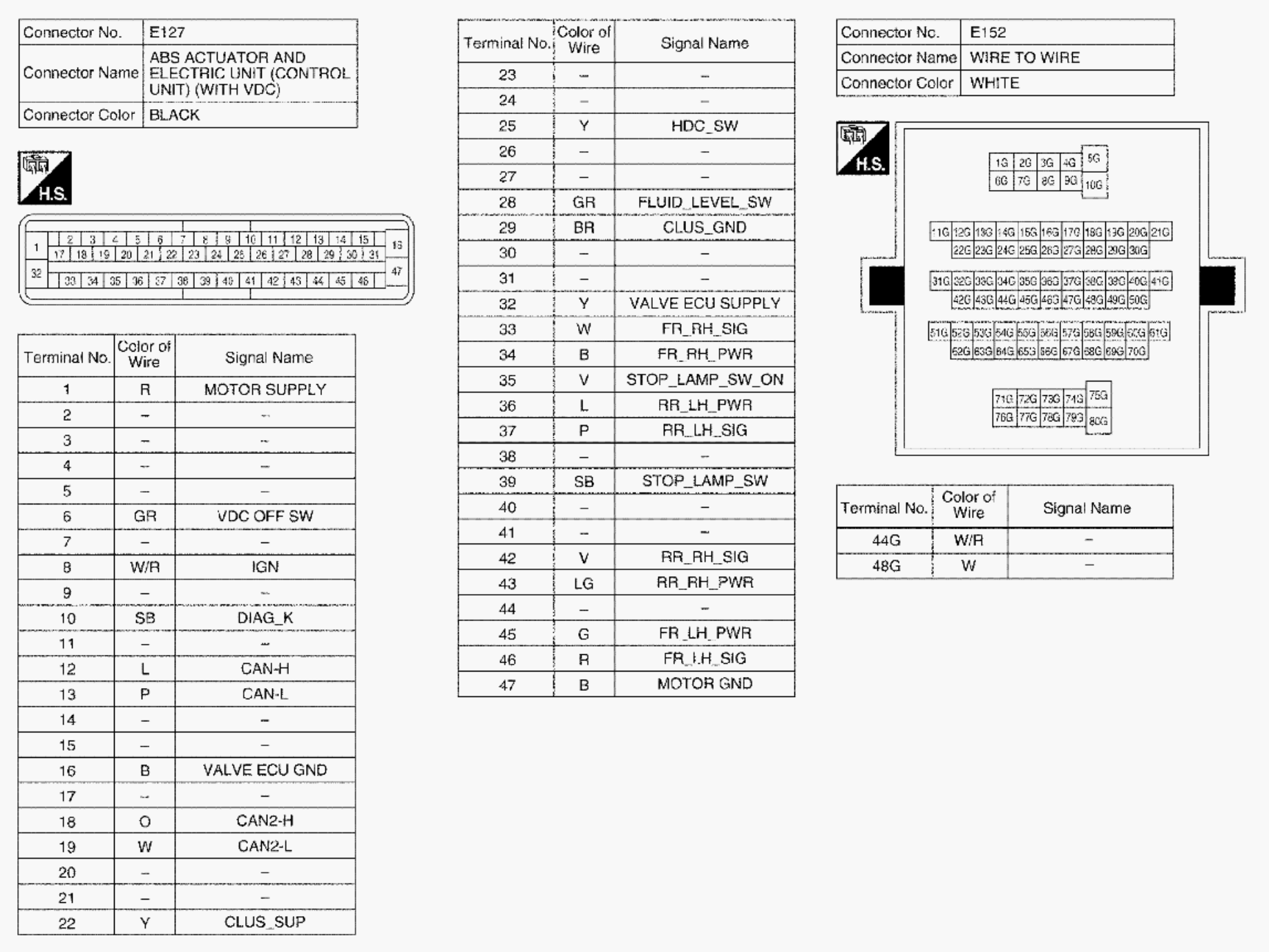

Fig 4: VDC With Hill Descent Control/Hill Start Assist - Wiring Diagram (4 of 6)

Courtesy of SUZUKI OF AMERICA CORP.

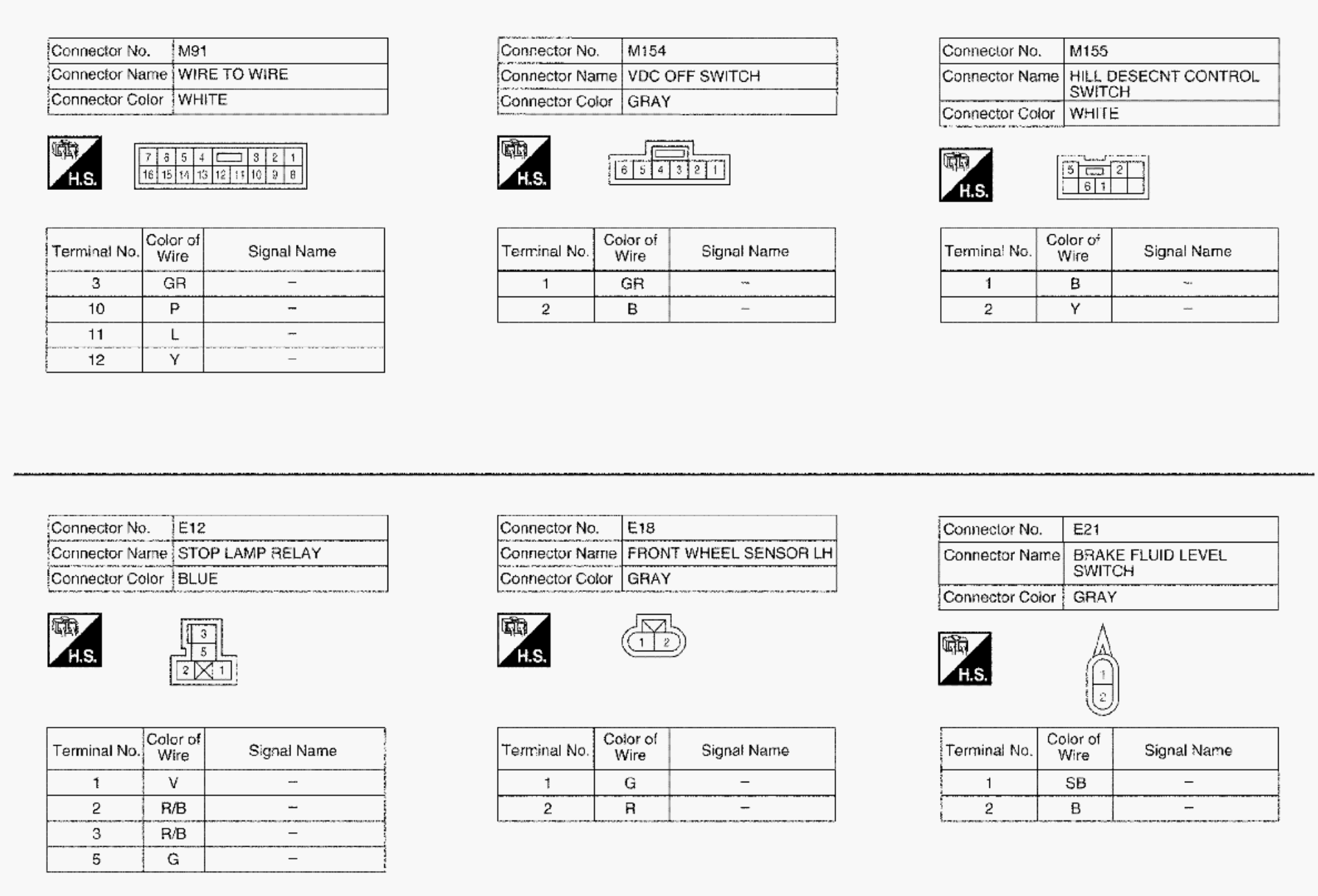

Fig 5: VDC With Hill Descent Control/Hill Start Assist - Wiring Diagram (5 of 6)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 6: VDC With Hill Descent Control/Hill Start Assist - Wiring Diagram (6 of 6)

Courtesy of SUZUKI OF AMERICA CORP.
