Turn Signal and Hazard Warning Lamp System: Wiring Diagram

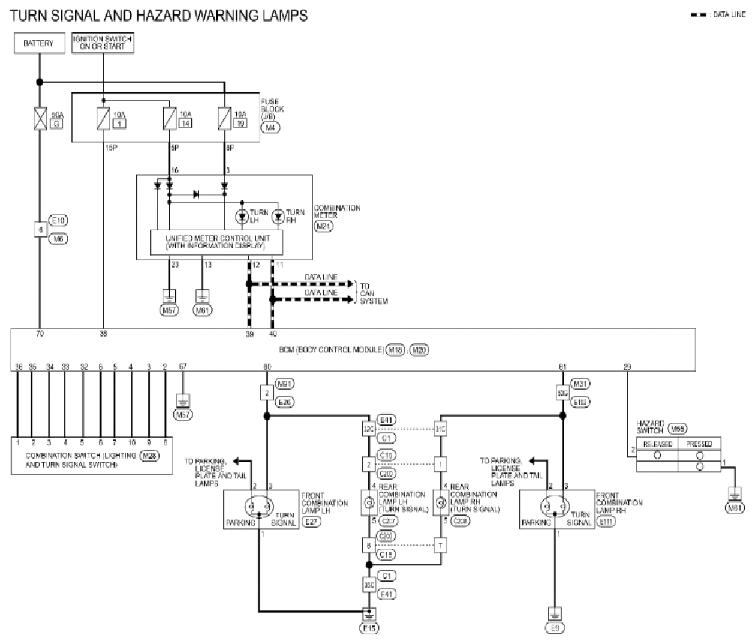

Fig 1: Turn Signal And Hazard Warning Lamp System - Wiring Diagram (1 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

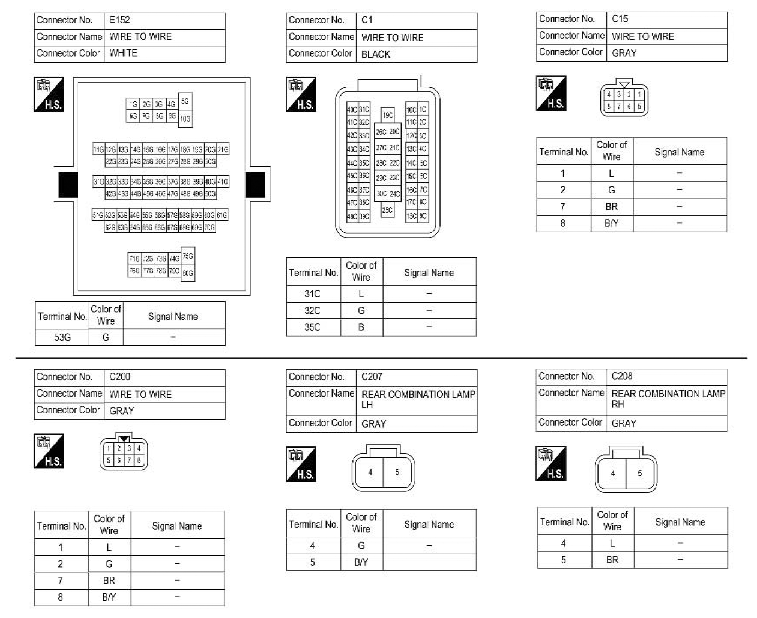

Fig 2: Turn Signal And Hazard Warning Lamp System - Wiring Diagram (2 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

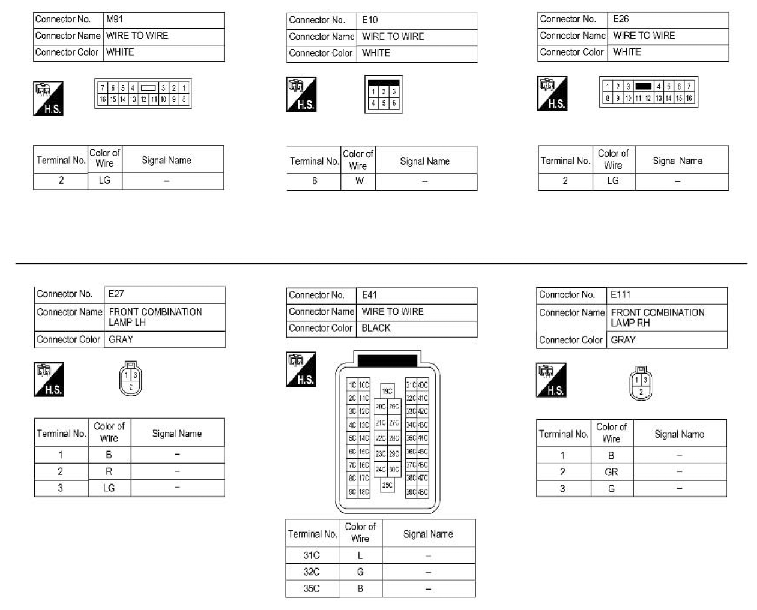

Fig 3: Turn Signal And Hazard Warning Lamp System - Wiring Diagram (3 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Turn Signal And Hazard Warning Lamp System - Wiring Diagram (4 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: Turn Signal And Hazard Warning Lamp System - Wiring Diagram (5 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.
