Tire Pressure Monitoring System: Wiring Diagram

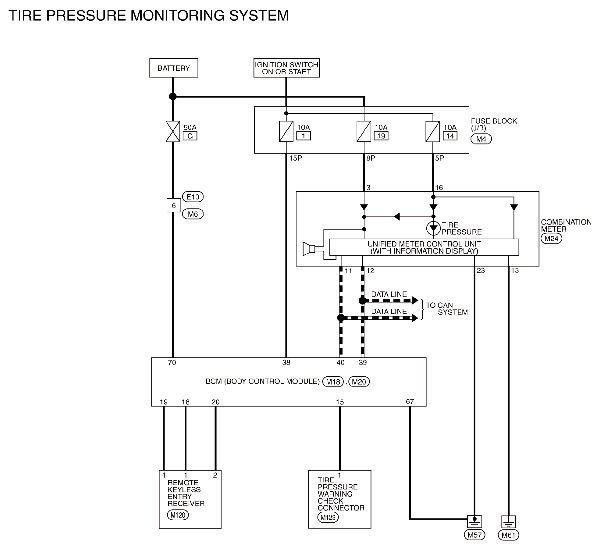

Fig 1: Tire Pressure Monitoring System - Wiring Diagram (1 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Tire Pressure Monitoring System - Wiring Diagram (2 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

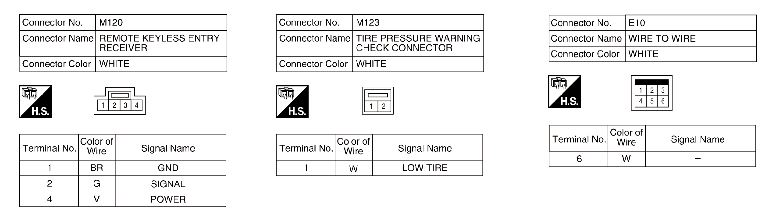

Fig 3: Tire Pressure Monitoring System - Wiring Diagram (3 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
