Stop Lamp: Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Stop Lamp: Wiring Diagram

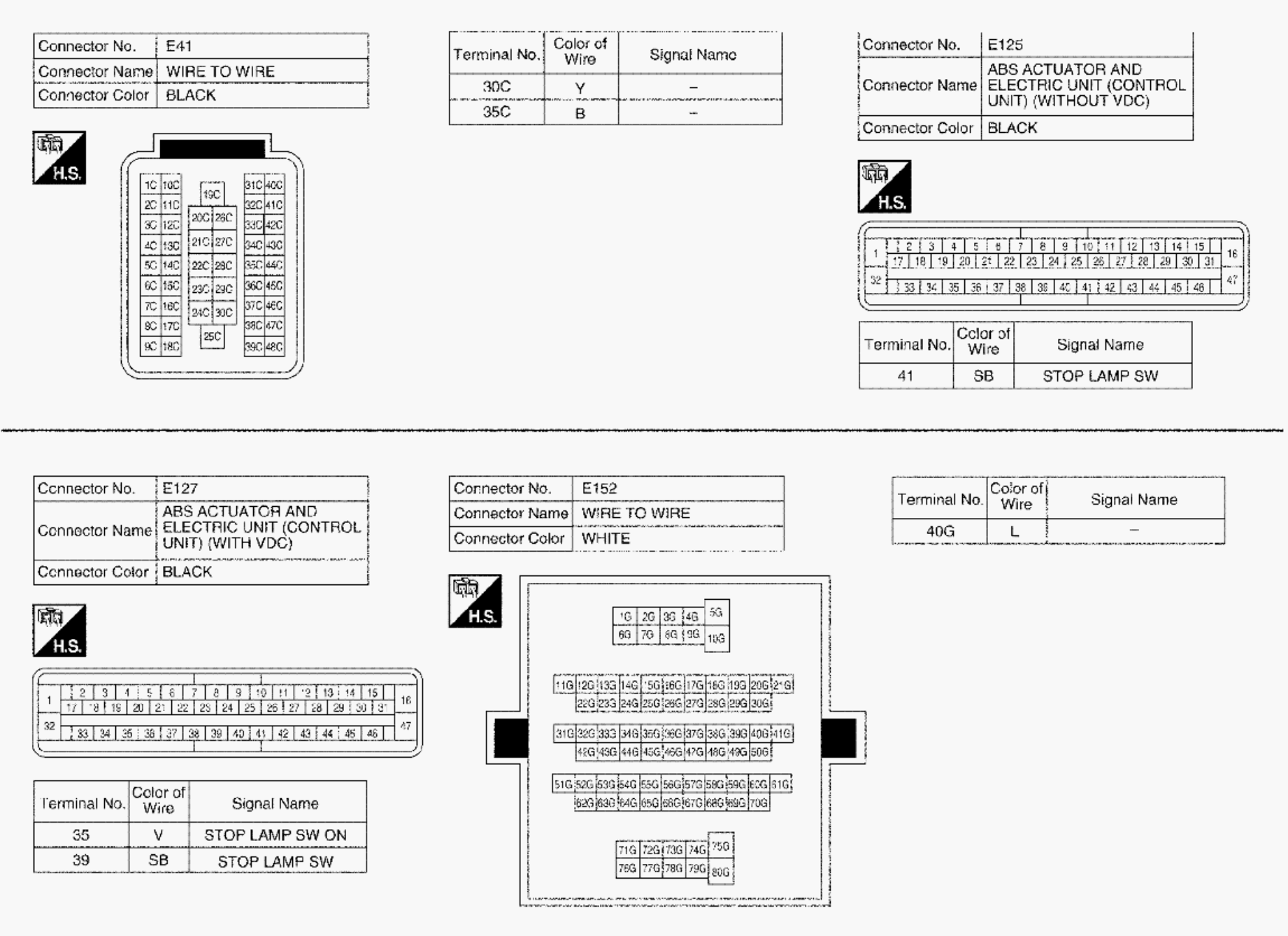

Fig 1: Stop Lamp - Wiring Diagram (1 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

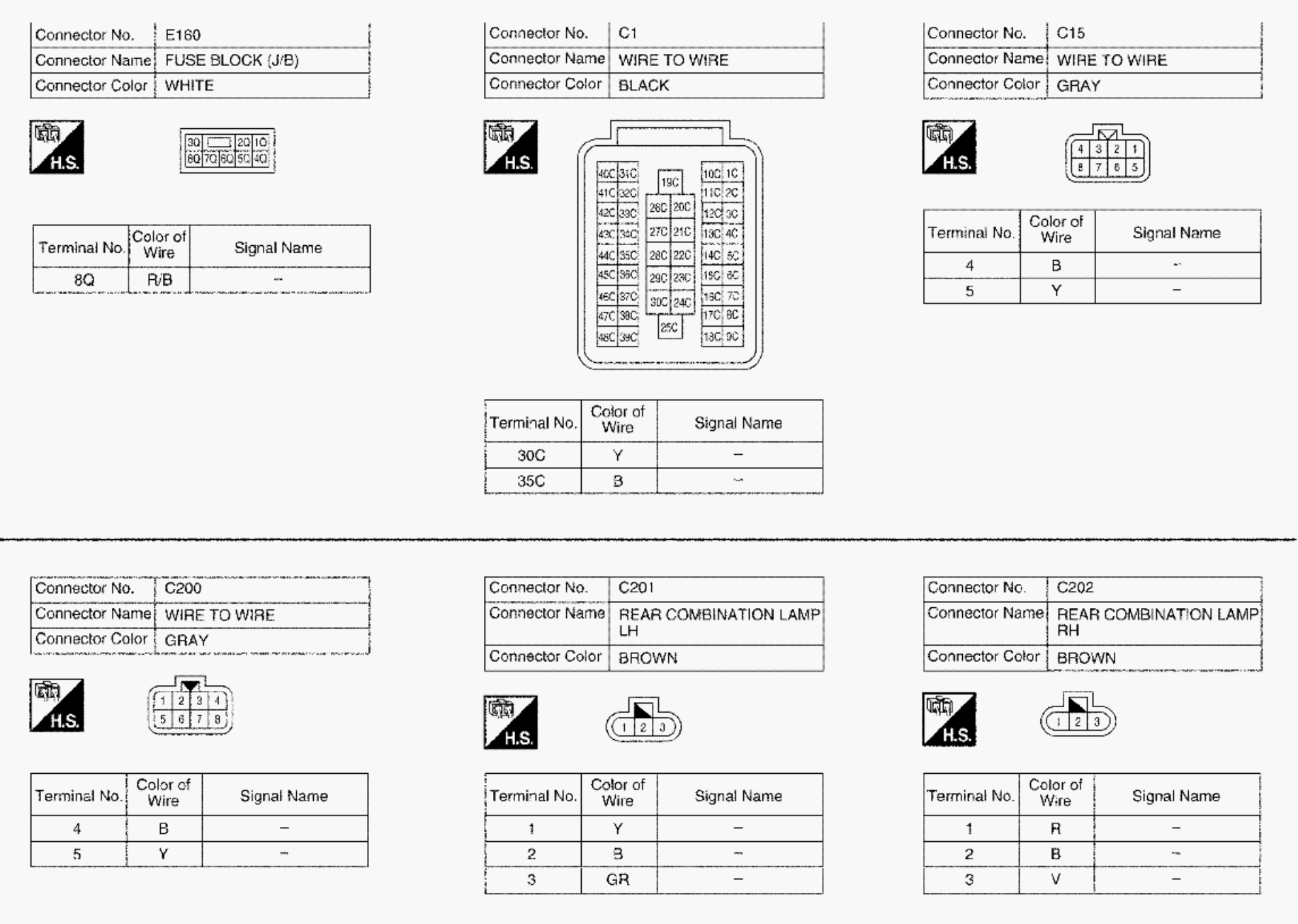

Fig 2: Stop Lamp - Wiring Diagram (2 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

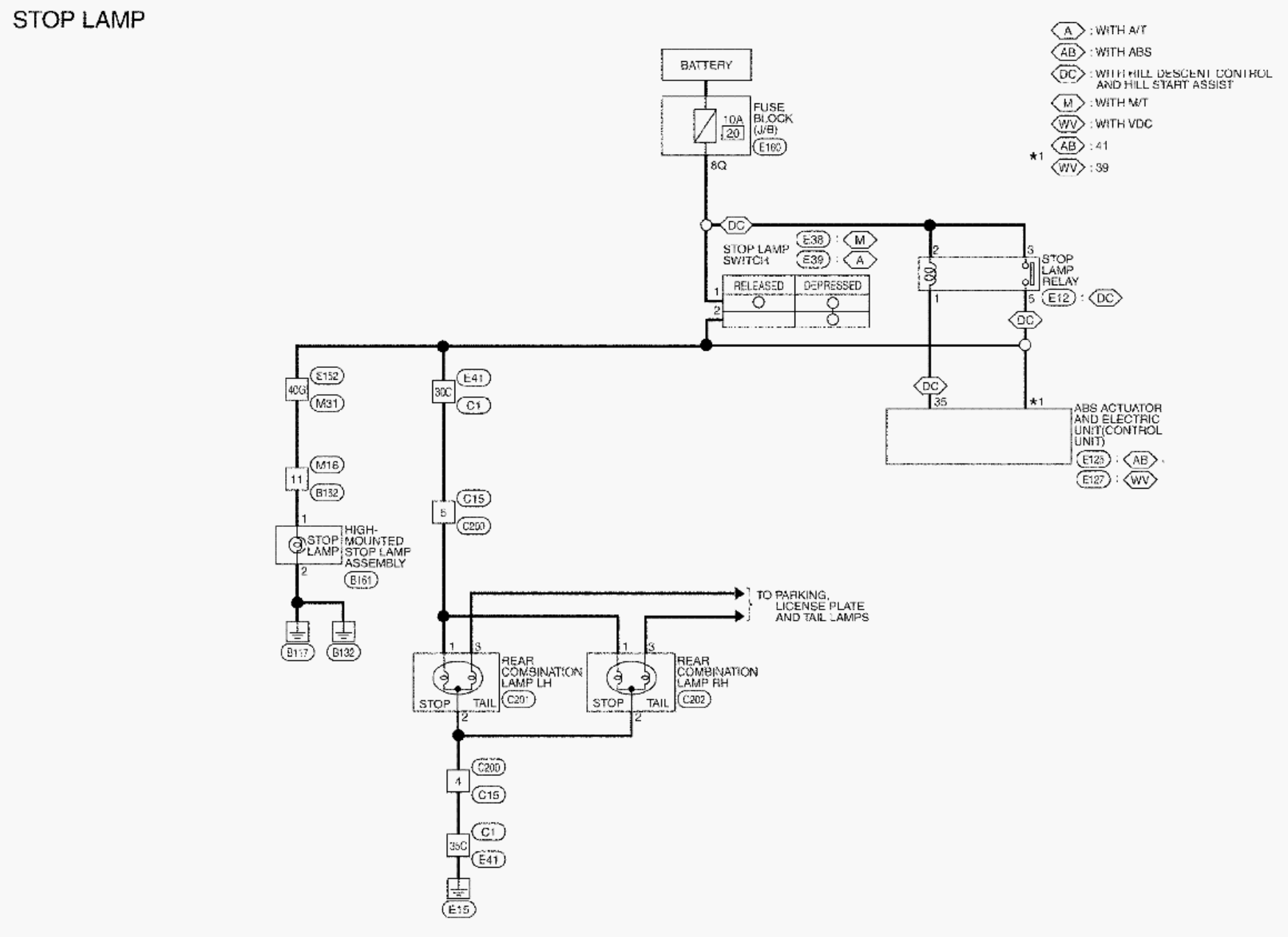

Fig 3: Stop Lamp - Wiring Diagram (3 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

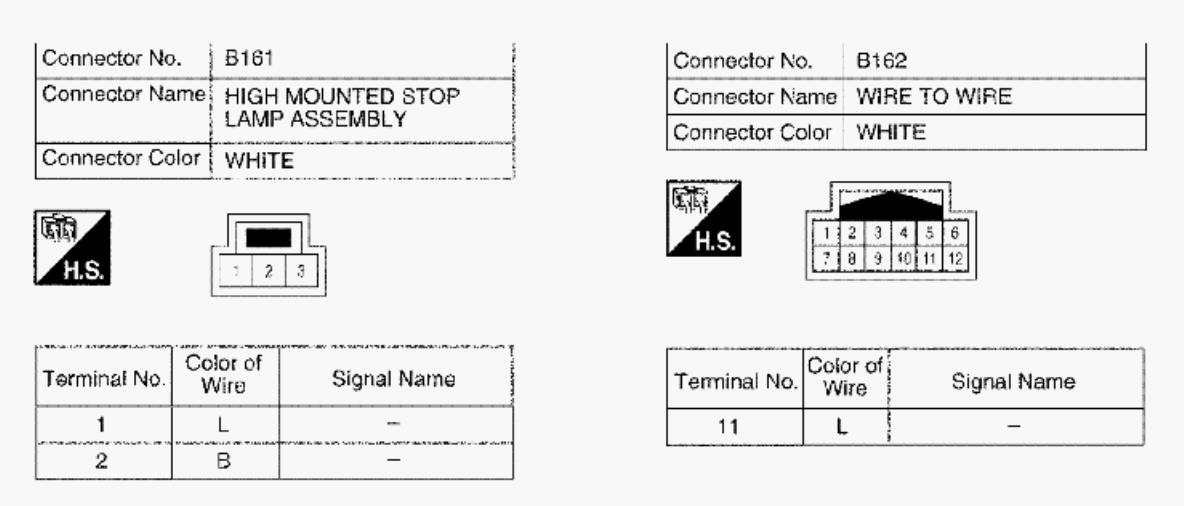

Fig 4: Stop Lamp - Wiring Diagram (4 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 5: Stop Lamp - Wiring Diagram (5 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.
