Remote Keyless Entry System: Wiring Diagram [King Cab]

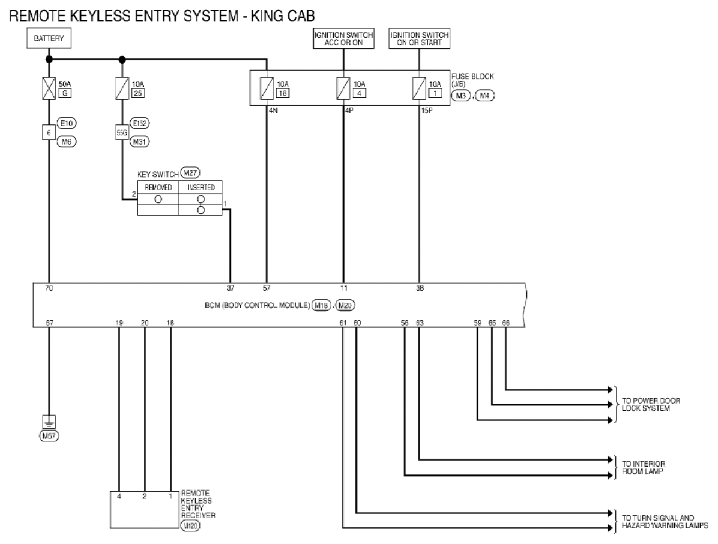

Fig 1: Remote Keyless Entry System - Wiring Diagram [King Cab] (1 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

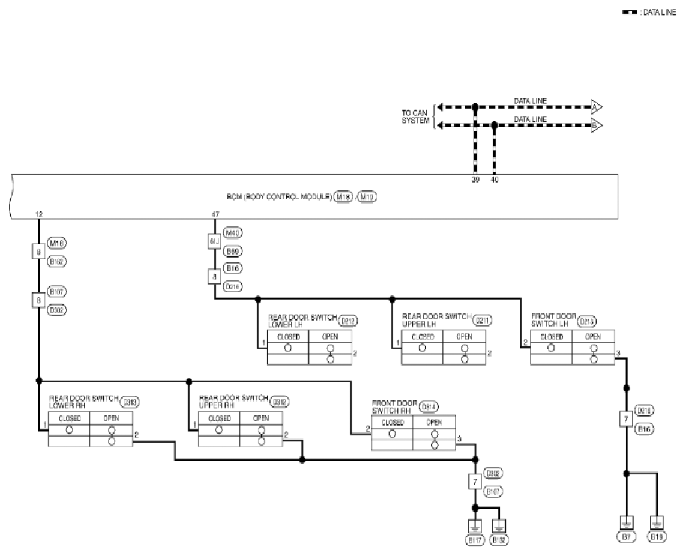

Fig 2: Remote Keyless Entry System - Wiring Diagram [King Cab] (2 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

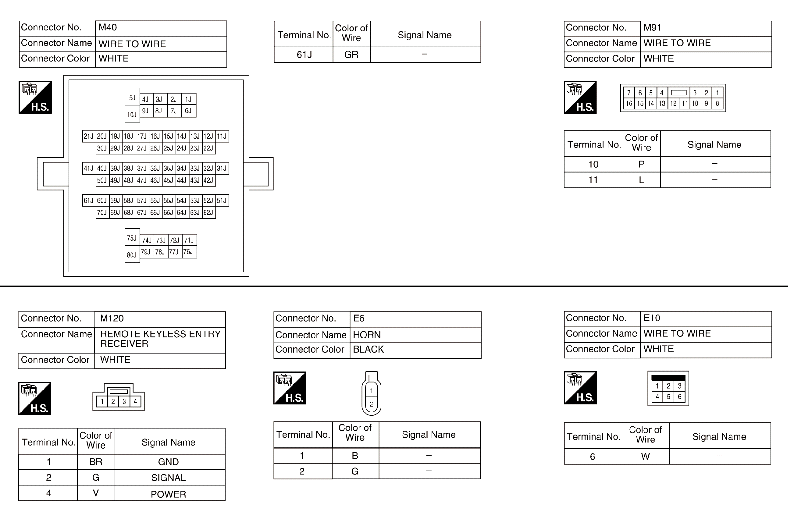

Fig 3: Remote Keyless Entry System - Wiring Diagram [King Cab] (3 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Remote Keyless Entry System - Wiring Diagram [King Cab] (4 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: Remote Keyless Entry System - Wiring Diagram [King Cab] (5 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 6: Remote Keyless Entry System - Wiring Diagram [King Cab] (6 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 7: Remote Keyless Entry System - Wiring Diagram [King Cab] (7 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 8: Remote Keyless Entry System - Wiring Diagram [King Cab] (8 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 9: Remote Keyless Entry System - Wiring Diagram [King Cab] (9 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 10: Remote Keyless Entry System - Wiring Diagram [King Cab] (10 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.
