Premium Audio System: Wiring Diagram [King Cab]

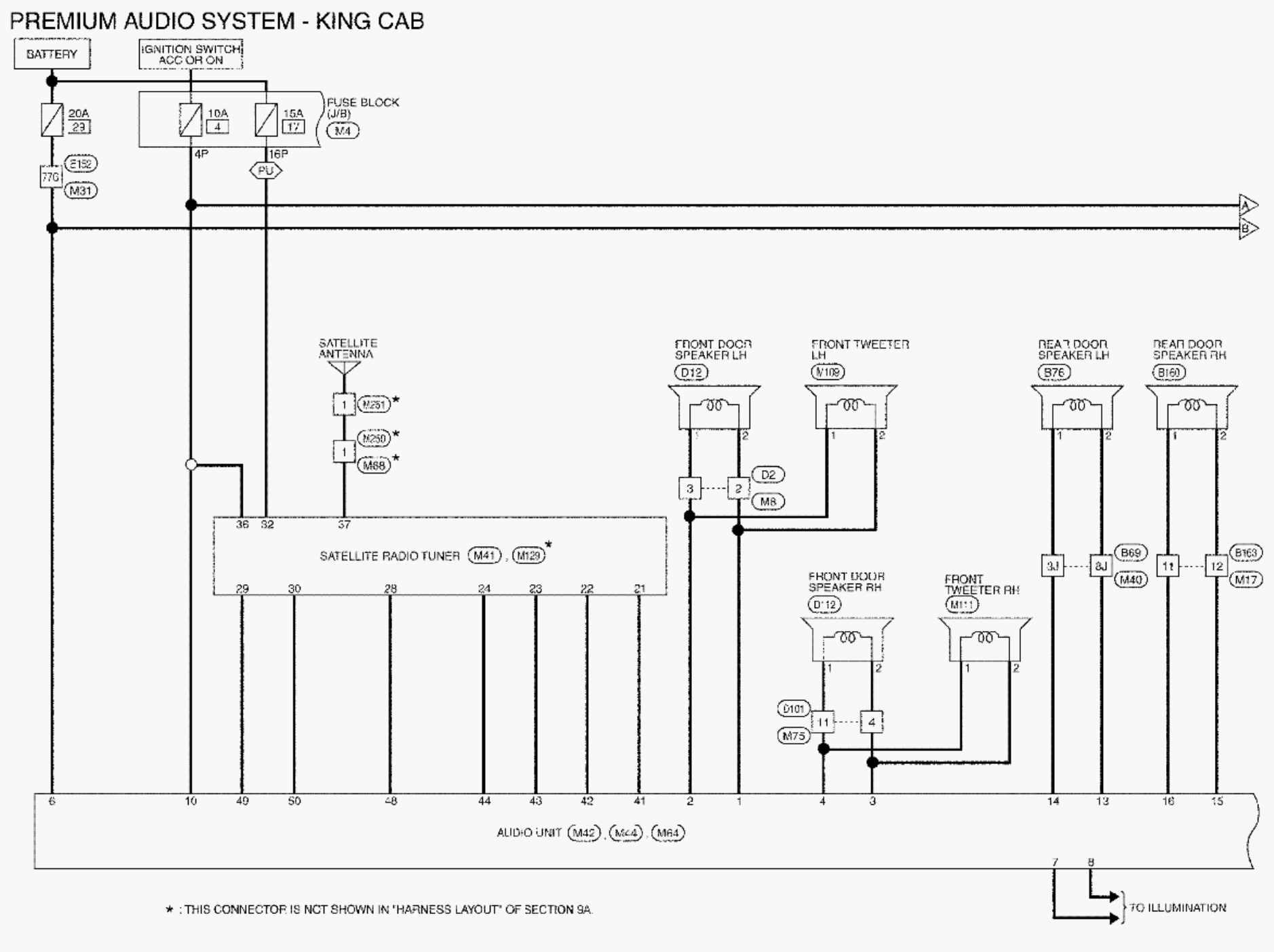

Fig 1: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (1 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

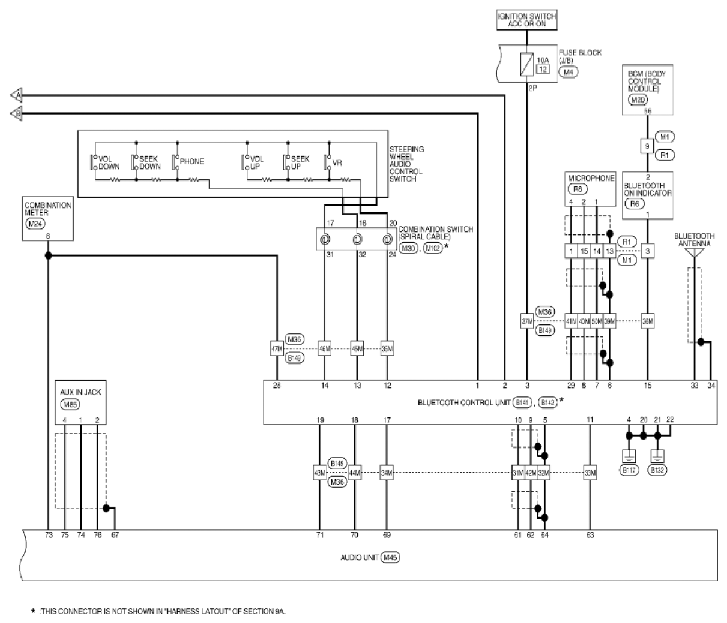

Fig 2: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (2 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (3 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (4 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (5 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 6: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (6 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 7: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (7 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 8: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (8 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 9: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (9 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 10: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (10 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 11: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (11 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.
