Premium Audio System: Wiring Diagram [Crew Cab]

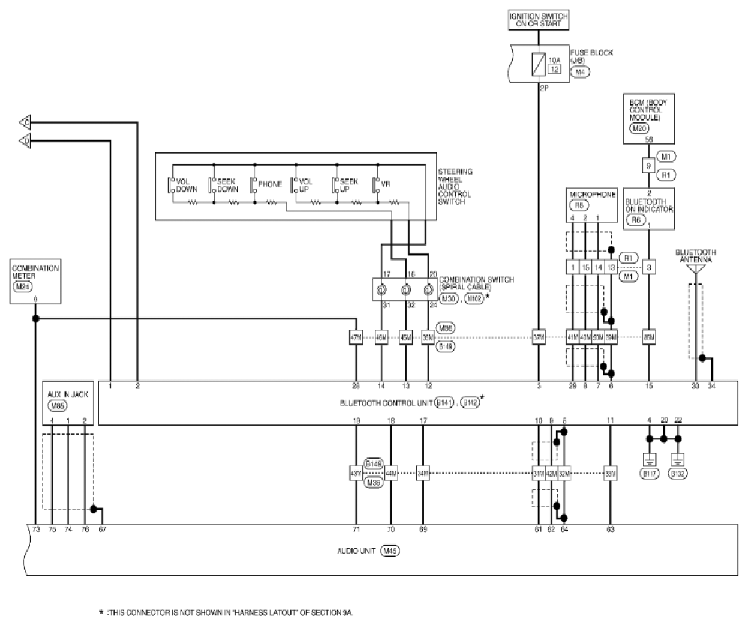

Fig 1: Audio Unit - Wiring Diagram [Premium Audio (Crew Cab)] (1 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

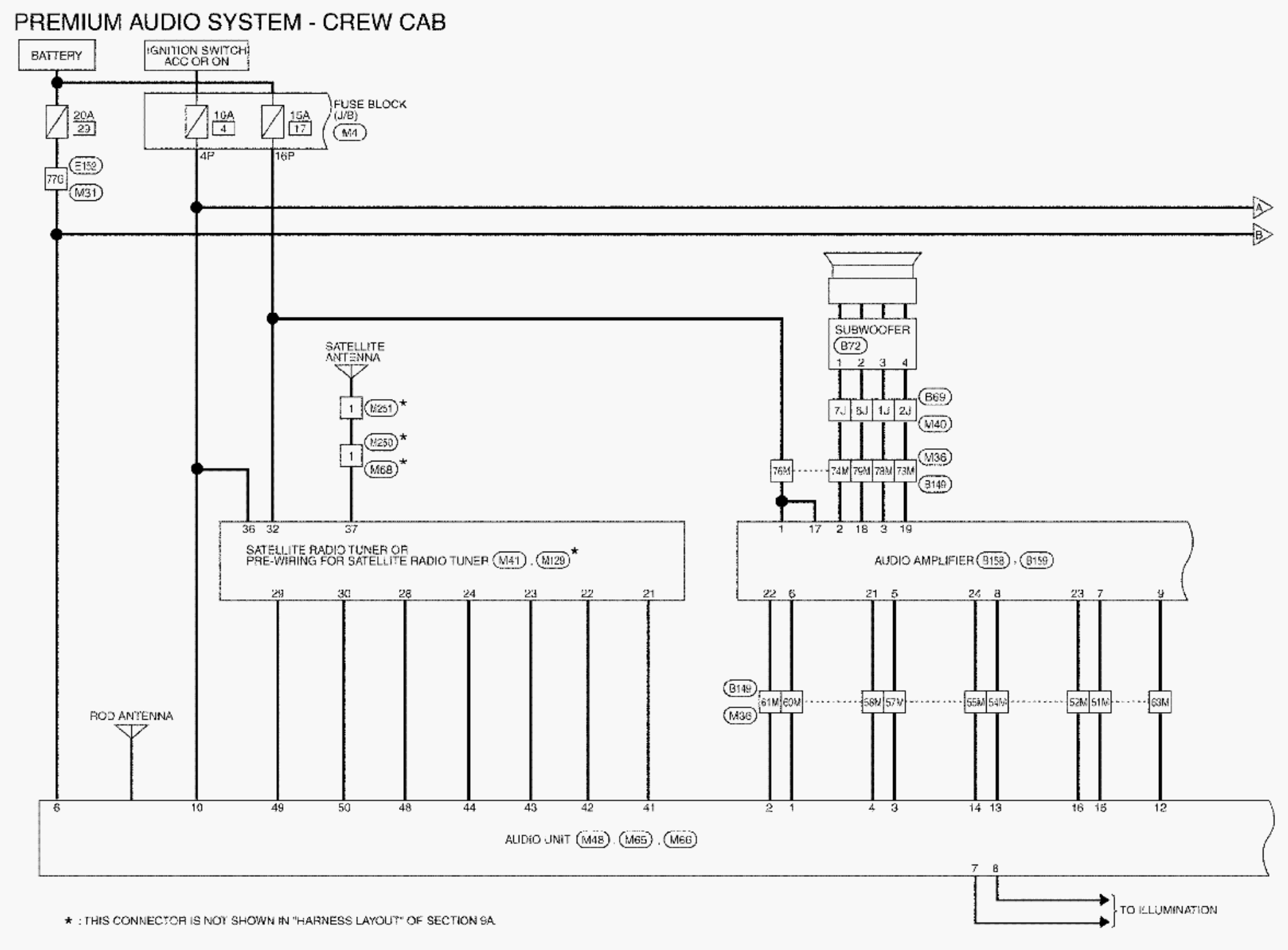

Fig 2: Audio Unit - Wiring Diagram [Premium Audio (Crew Cab)] (2 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

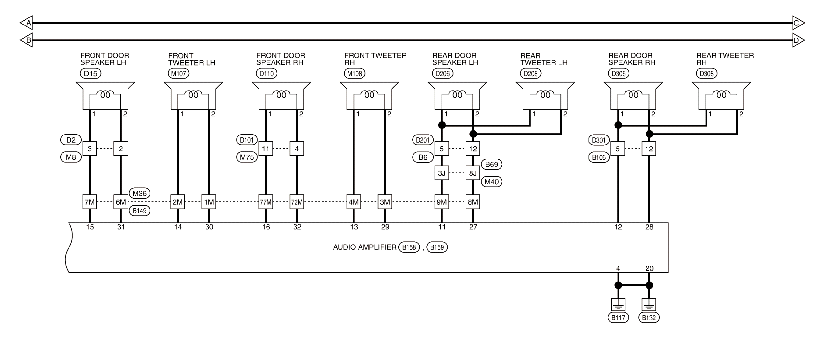

Fig 3: Audio Unit - Wiring Diagram [Premium Audio (Crew Cab)] (3 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Audio Unit - Wiring Diagram [Premium Audio (Crew Cab)] (4 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: Audio Unit - Wiring Diagram [Premium Audio (Crew Cab)] (5 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 6: Audio Unit - Wiring Diagram [Premium Audio (Crew Cab)] (6 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 7: Audio Unit - Wiring Diagram [Premium Audio (Crew Cab)] (7 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 8: Audio Unit - Wiring Diagram [Premium Audio (Crew Cab)] (8 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 9: Audio Unit - Wiring Diagram [Premium Audio (Crew Cab)] (9 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 10: Audio Unit - Wiring Diagram [Premium Audio (Crew Cab)] (10 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 11: Audio Unit - Wiring Diagram [Premium Audio (Crew Cab)] (11 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 12: Audio Unit - Wiring Diagram [Premium Audio (Crew Cab)] (12 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

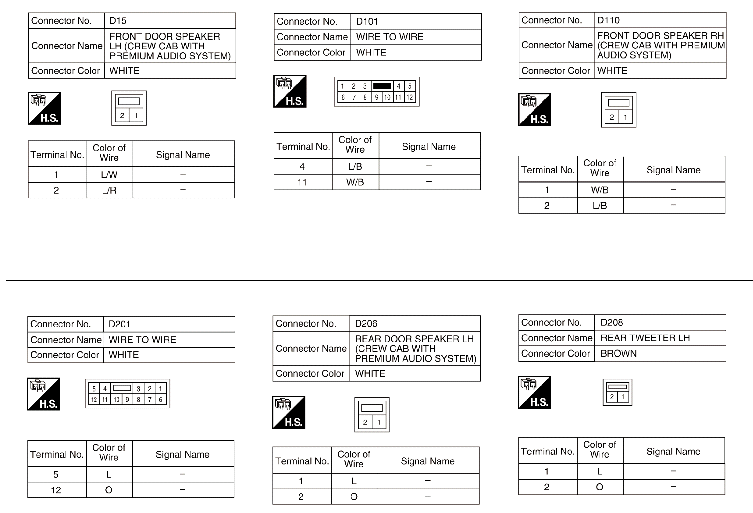

Fig 13: Audio Unit - Wiring Diagram [Premium Audio (Crew Cab)] (13 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

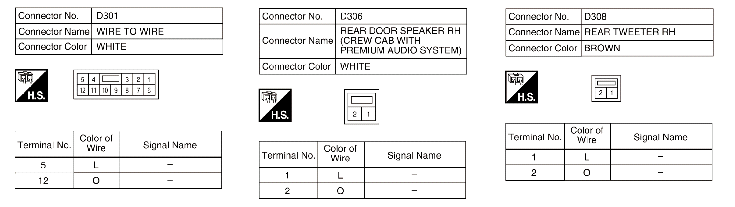

Fig 14: Audio Unit - Wiring Diagram [Premium Audio (Crew Cab)] (14 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.
