Power Window System: Wiring Diagram [King Cab]

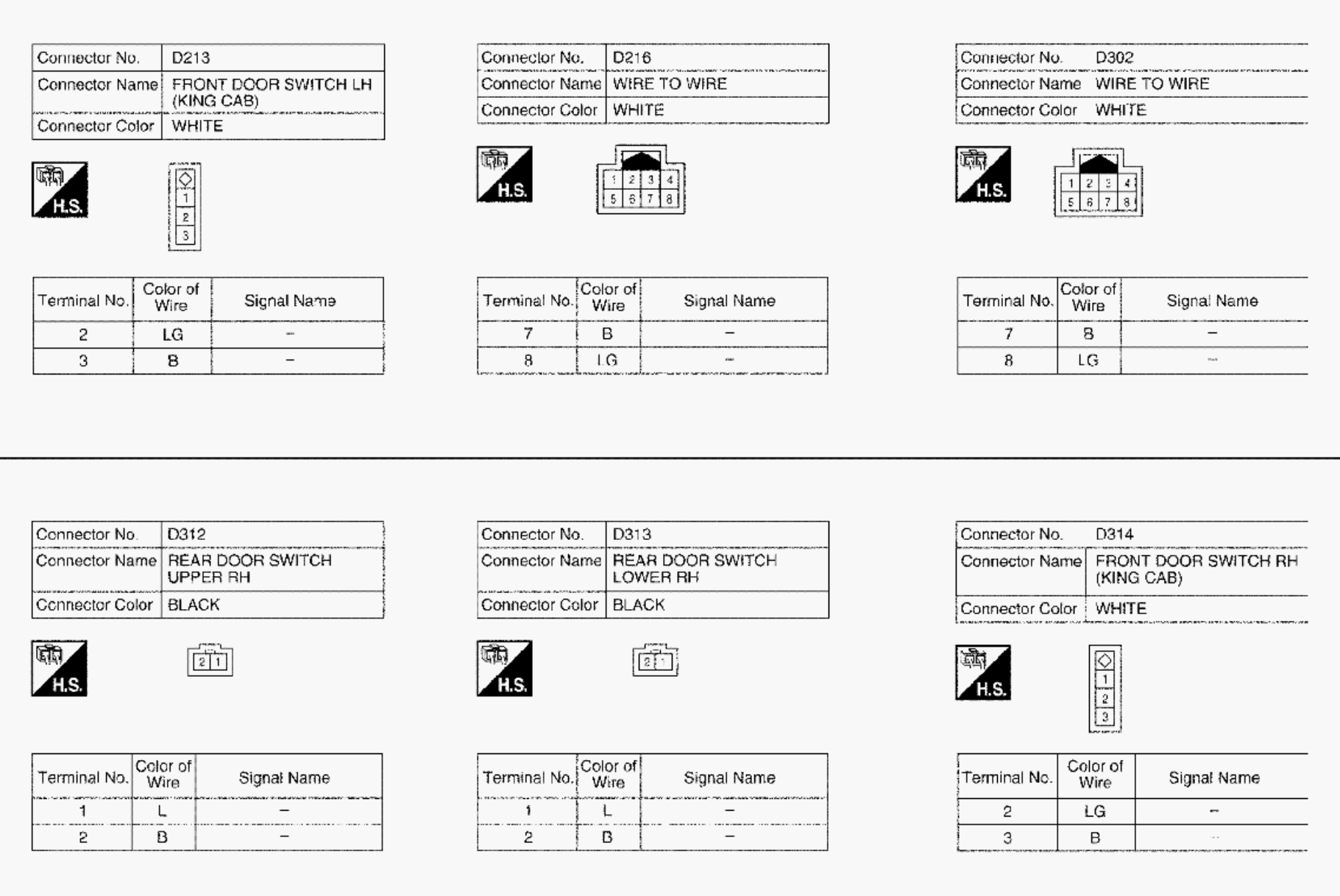

Fig 1: Power Window System - Wiring Diagram (King Cab) (1 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

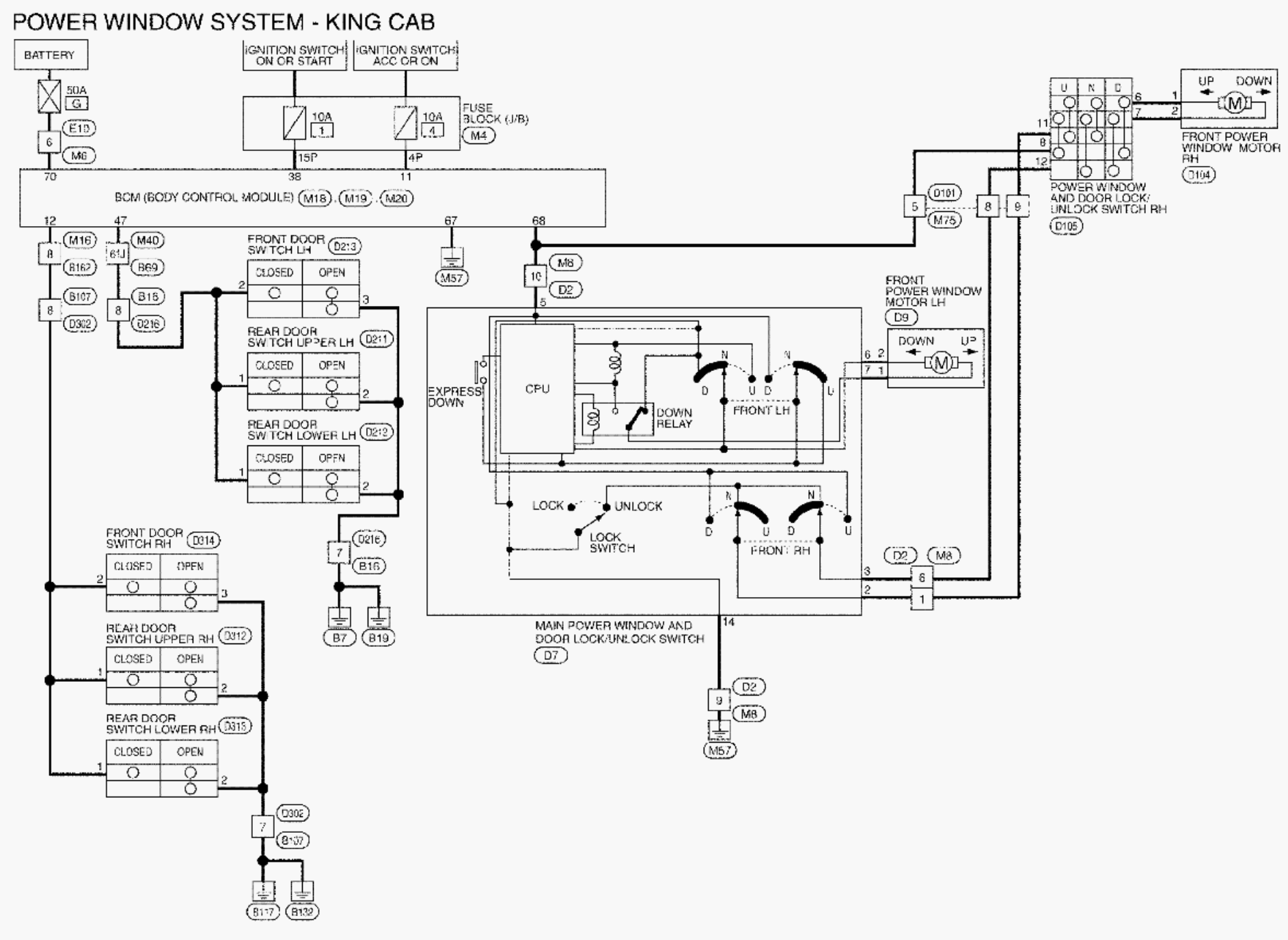

Fig 2: Power Window System - Wiring Diagram (King Cab) (2 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

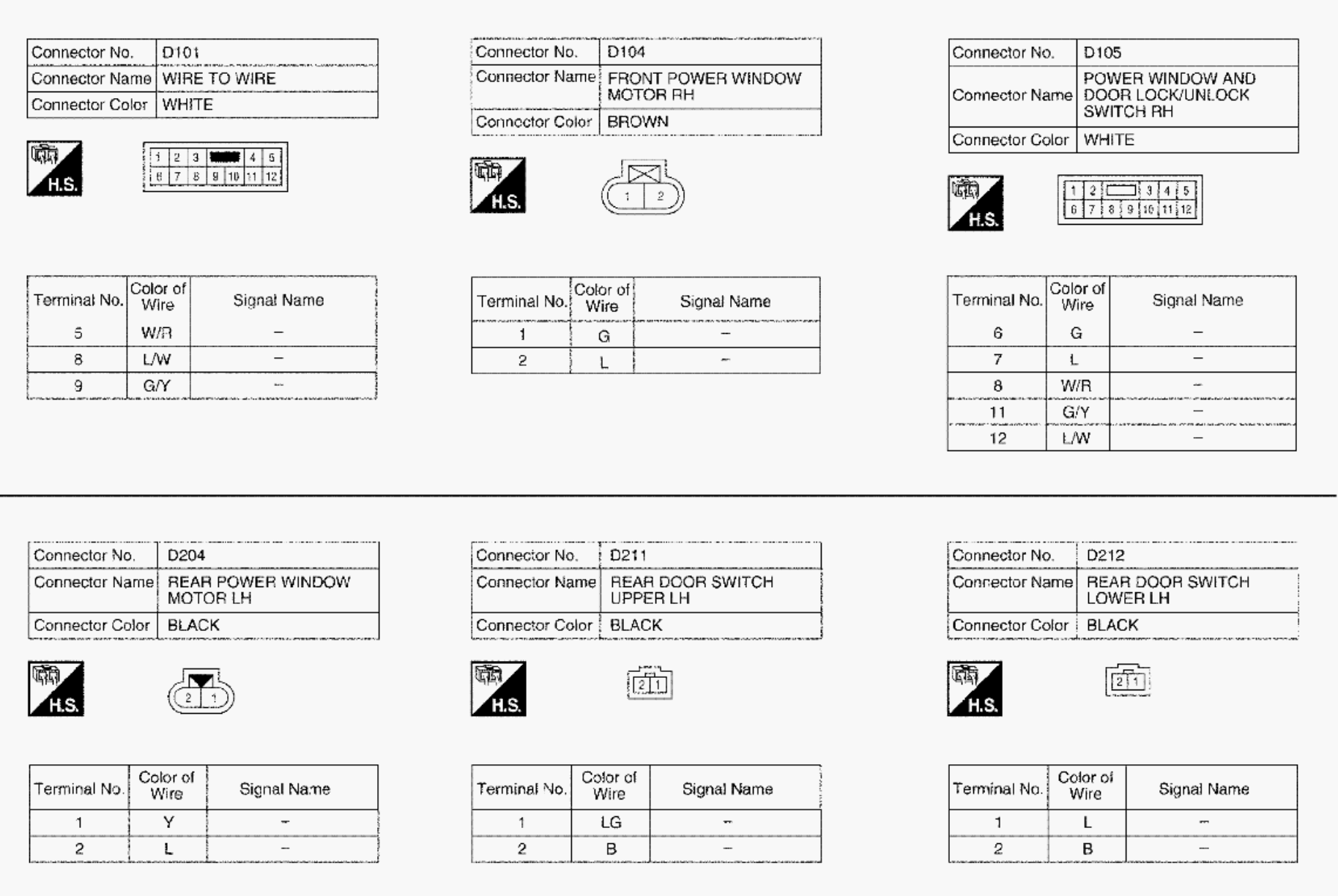

Fig 3: Power Window System - Wiring Diagram (King Cab) (3 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Power Window System - Wiring Diagram (King Cab) (4 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: Power Window System - Wiring Diagram (King Cab) (5 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 6: Power Window System - Wiring Diagram (King Cab) (6 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.
