Mid Audio System: Wiring Diagram [Crew Cab]

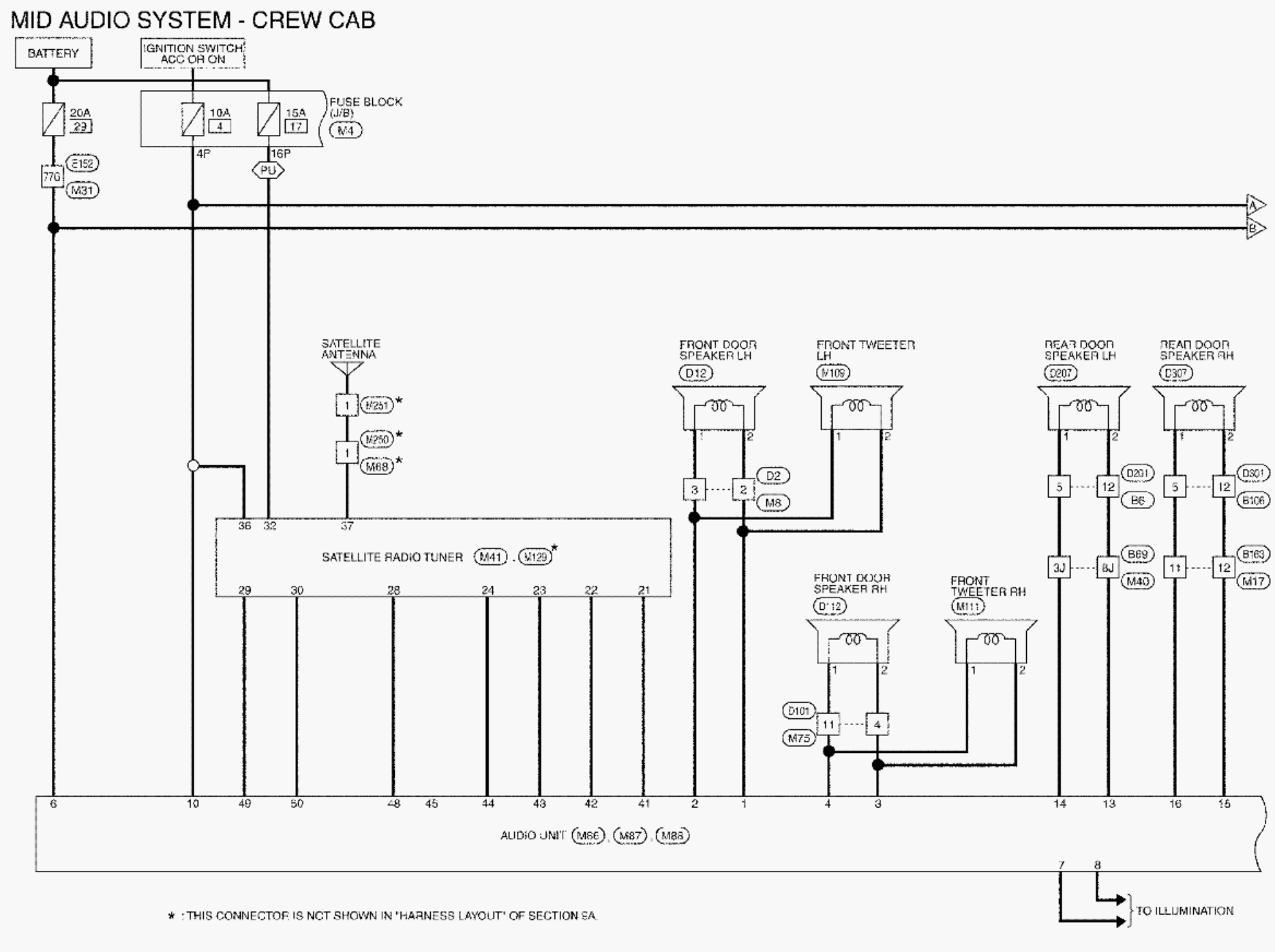

Fig 1: Mid Audio System - Wiring Diagram [Crew Cab] (1 of 12)

Courtesy of SUZUKI OF AMERICA CORP.

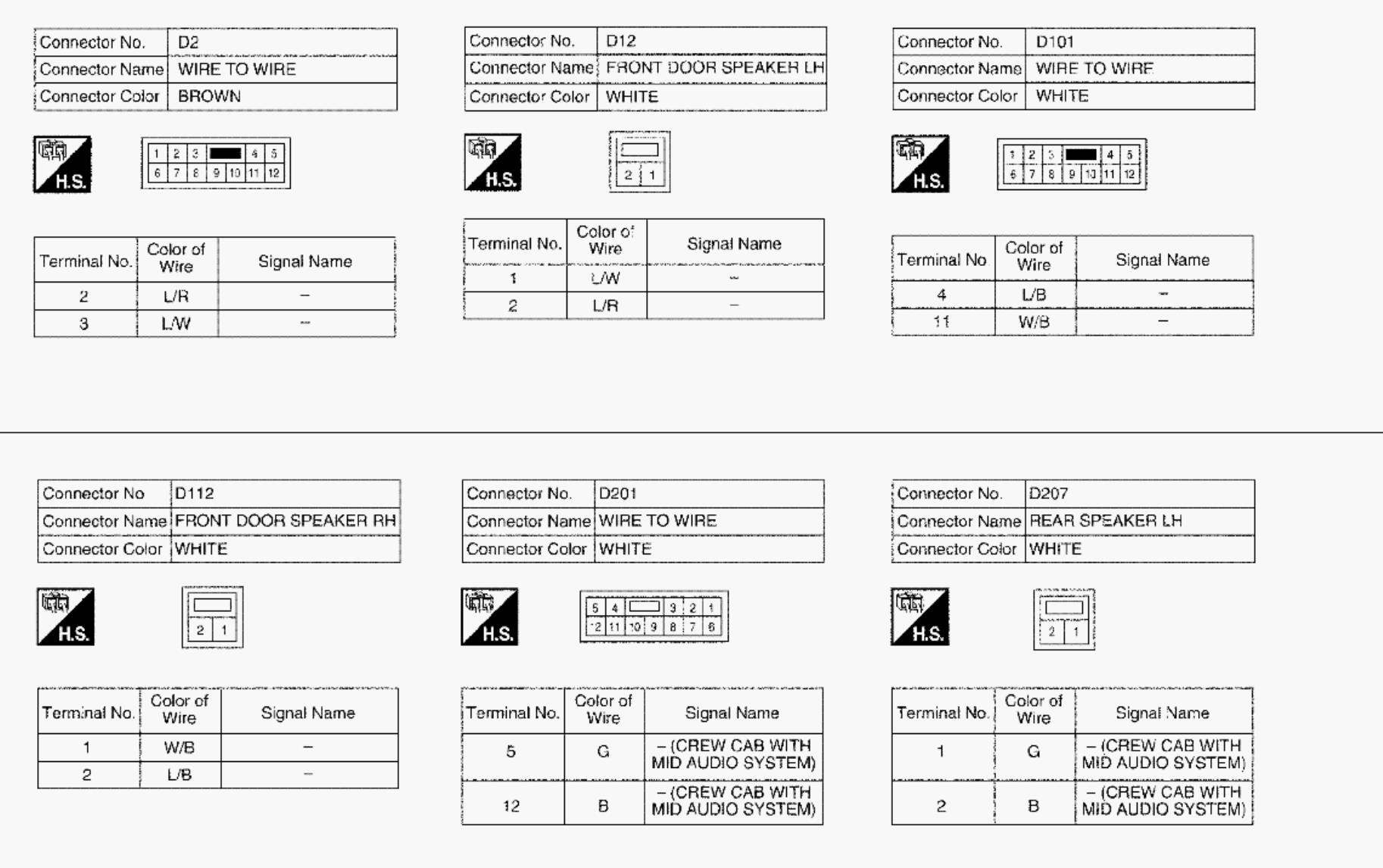

Fig 2: Mid Audio System - Wiring Diagram [Crew Cab] (2 of 12)

Courtesy of SUZUKI OF AMERICA CORP.

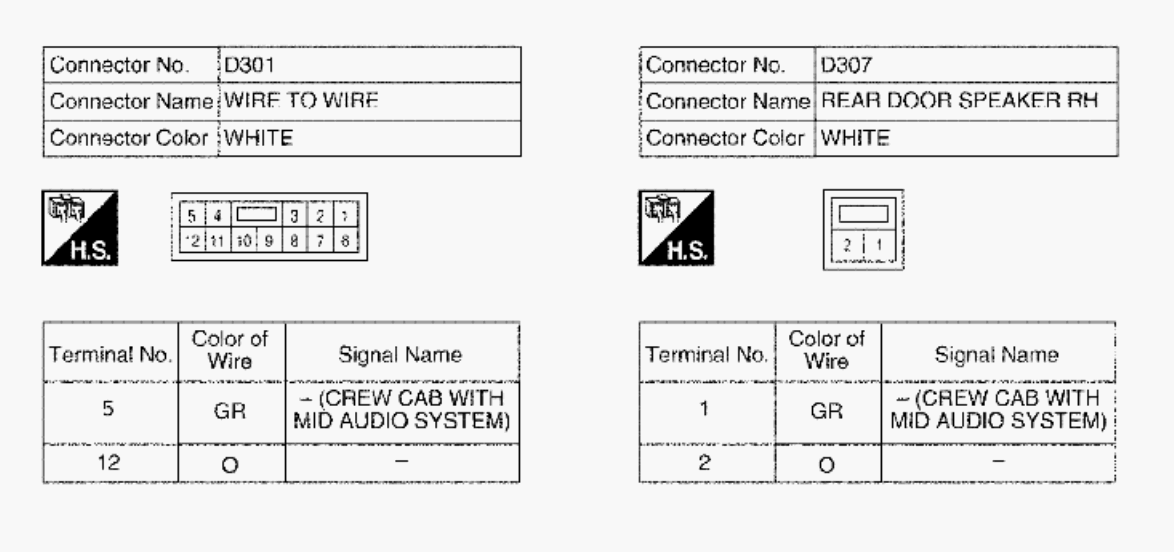

Fig 3: Mid Audio System - Wiring Diagram [Crew Cab] (3 of 12)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Mid Audio System - Wiring Diagram [Crew Cab] (4 of 12)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: Mid Audio System - Wiring Diagram [Crew Cab] (5 of 12)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 6: Mid Audio System - Wiring Diagram [Crew Cab] (6 of 12)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 7: Mid Audio System - Wiring Diagram [Crew Cab] (7 of 12)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 8: Mid Audio System - Wiring Diagram [Crew Cab] (8 of 12)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 9: Mid Audio System - Wiring Diagram [Crew Cab] (9 of 12)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 10: Mid Audio System - Wiring Diagram [Crew Cab] (10 of 12)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 11: Mid Audio System - Wiring Diagram [Crew Cab] (11 of 12)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 12: Mid Audio System - Wiring Diagram [Crew Cab] (12 of 12)

Courtesy of SUZUKI OF AMERICA CORP.
