Headlamp: Wiring Diagram

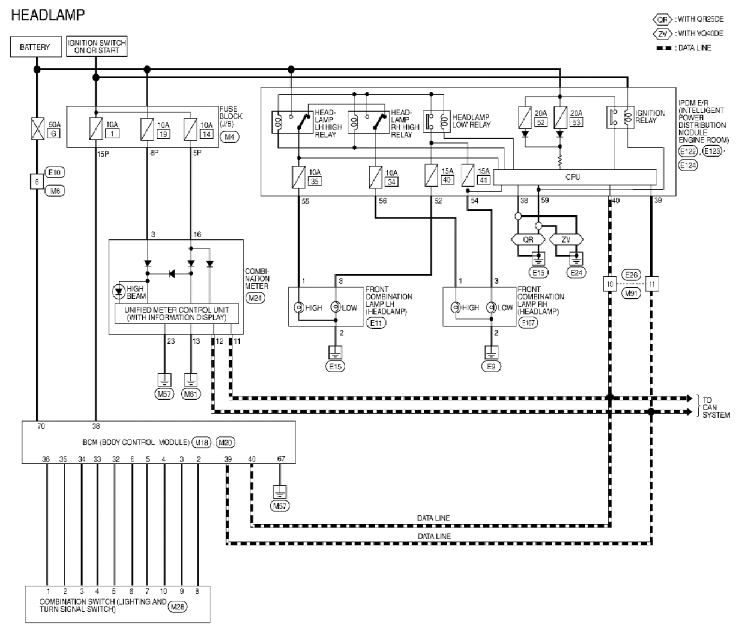

Fig 1: Headlamp - Wiring Diagram (1 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Headlamp - Wiring Diagram (2 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

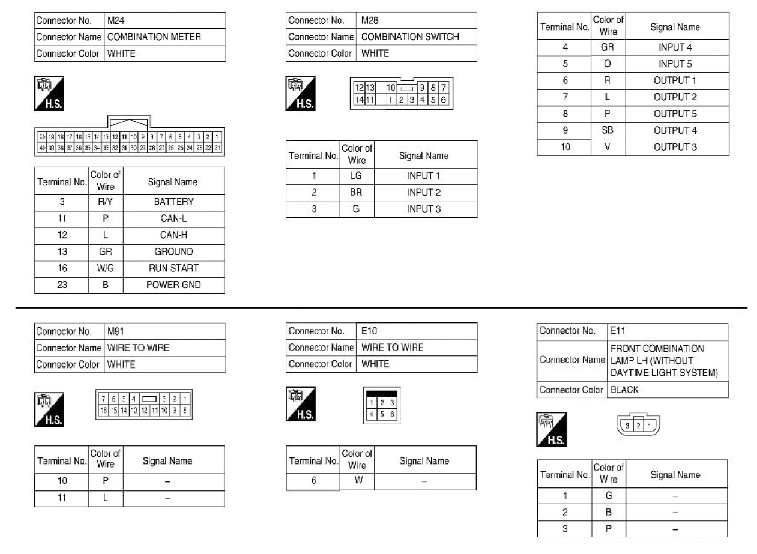

Fig 3: Headlamp - Wiring Diagram (3 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

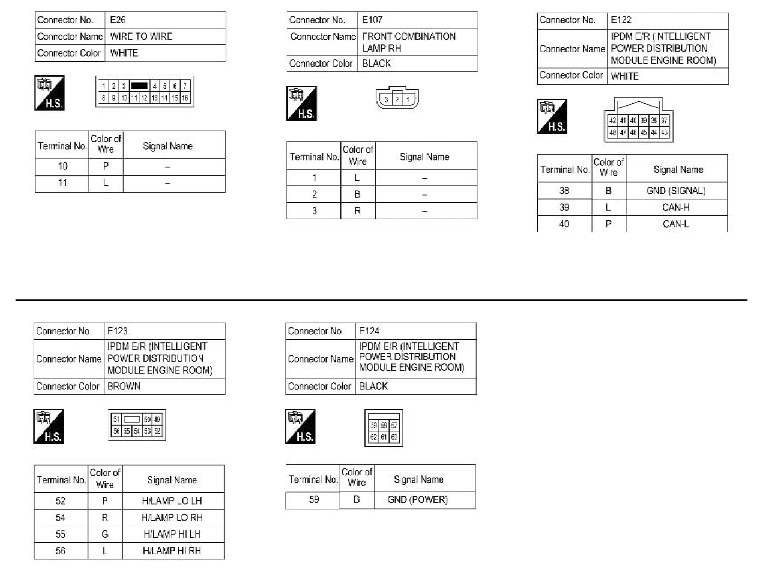

Fig 4: Headlamp - Wiring Diagram (4 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.
