Charging System: Wiring Diagram

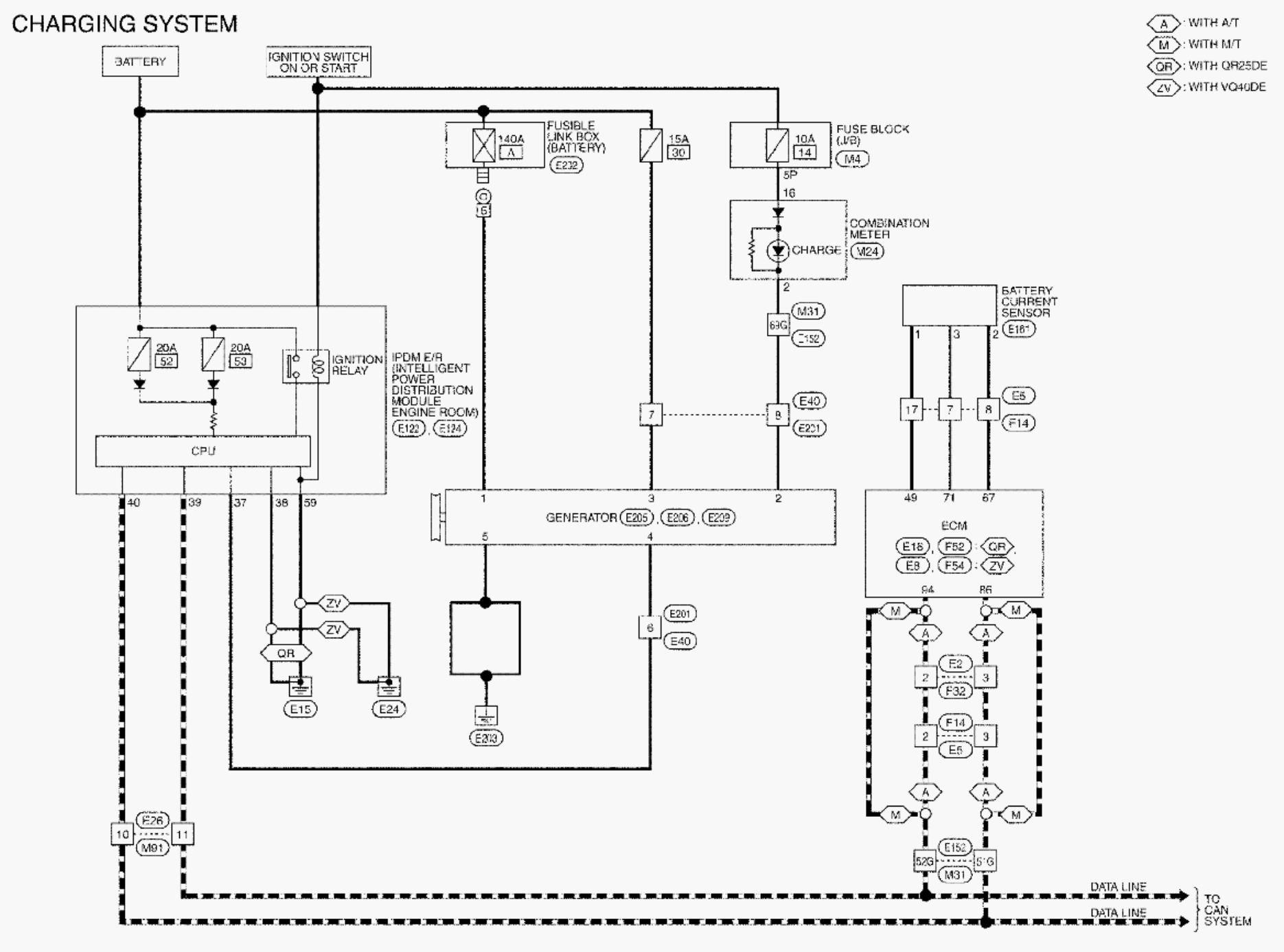

Fig 1: Charging System - Wiring Diagram (1 Of 6)
Courtesy of SUZUKI OF AMERICA CORP.

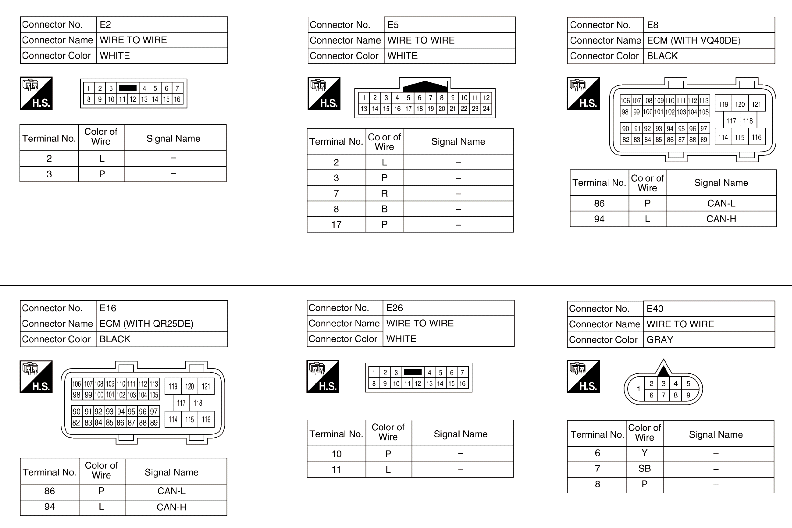

Fig 2: Charging System - Wiring Diagram (2 Of 6)
Courtesy of SUZUKI OF AMERICA CORP.

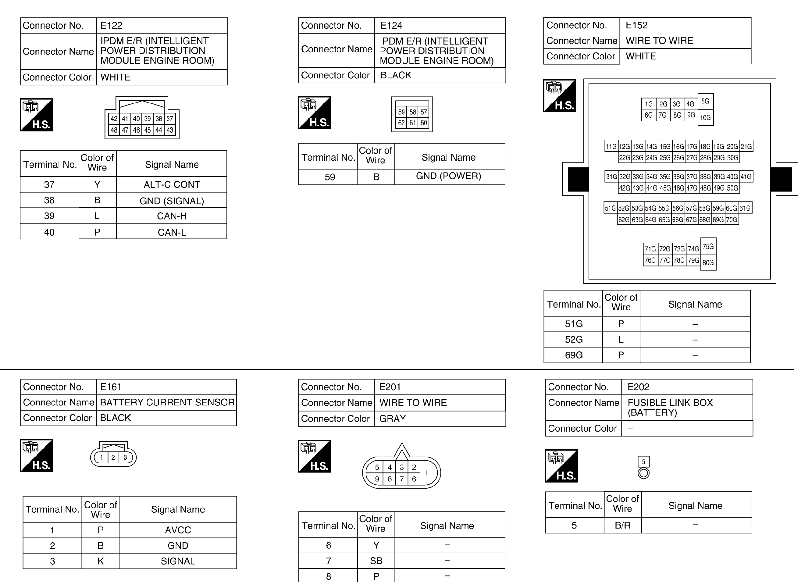

Fig 3: Charging System - Wiring Diagram (3 Of 6)
Courtesy of SUZUKI OF AMERICA CORP.

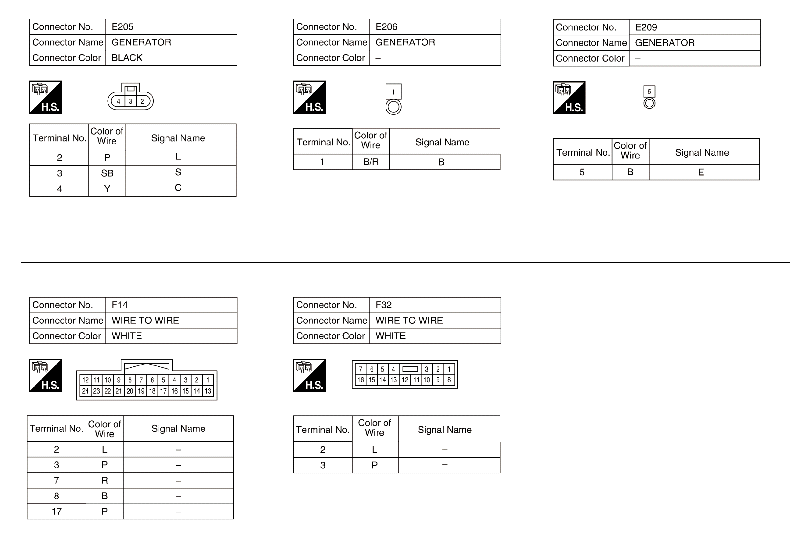

Fig 4: Charging System - Wiring Diagram (4 Of 6)
Courtesy of SUZUKI OF AMERICA CORP.

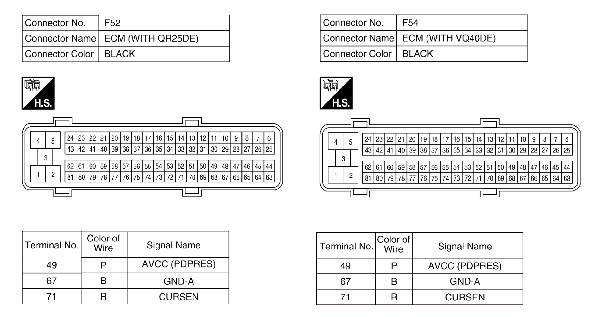

Fig 5: Charging System - Wiring Diagram (5 Of 6)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 6: Charging System - Wiring Diagram (6 Of 6)
Courtesy of SUZUKI OF AMERICA CORP.
