CAN System: Wiring Diagram

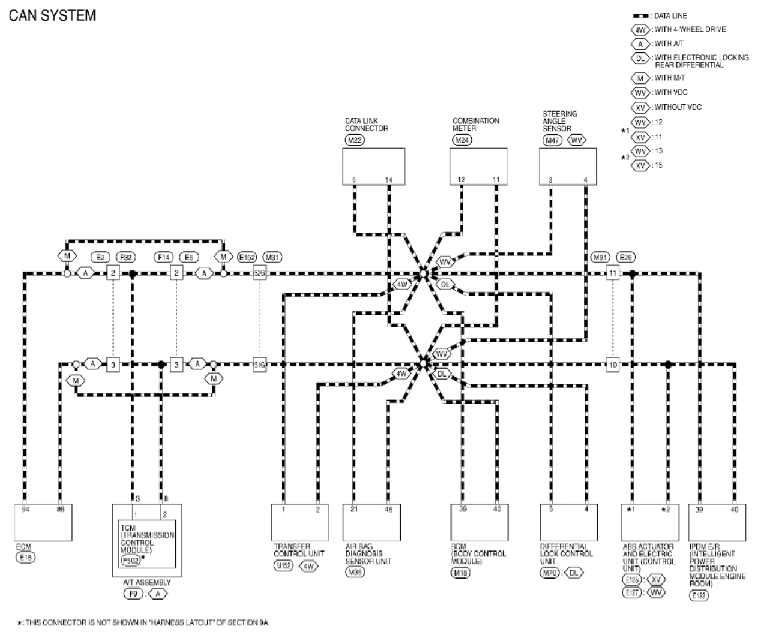

Fig 1: CAN System - Wiring Diagram (1 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

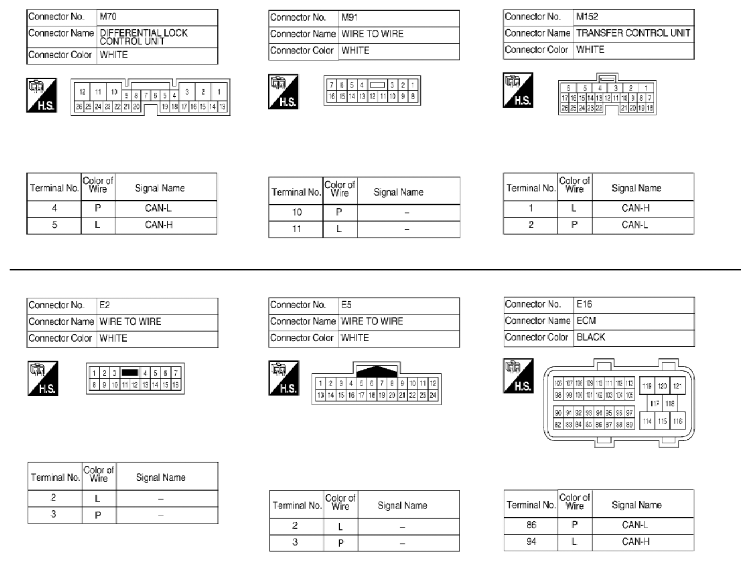

Fig 2: CAN System - Wiring Diagram (2 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

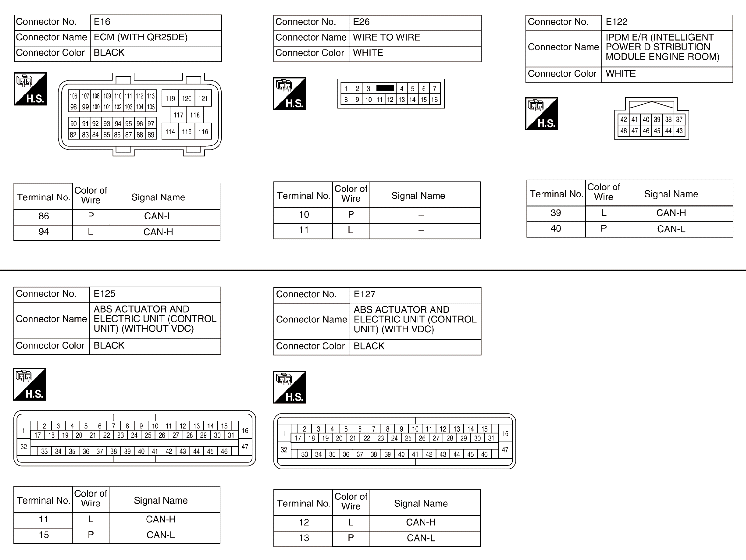

Fig 3: CAN System - Wiring Diagram (3 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 4: CAN System - Wiring Diagram (4 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 5: CAN System - Wiring Diagram (5 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
