Air Conditioner Control: Wiring Diagram [with VBC]

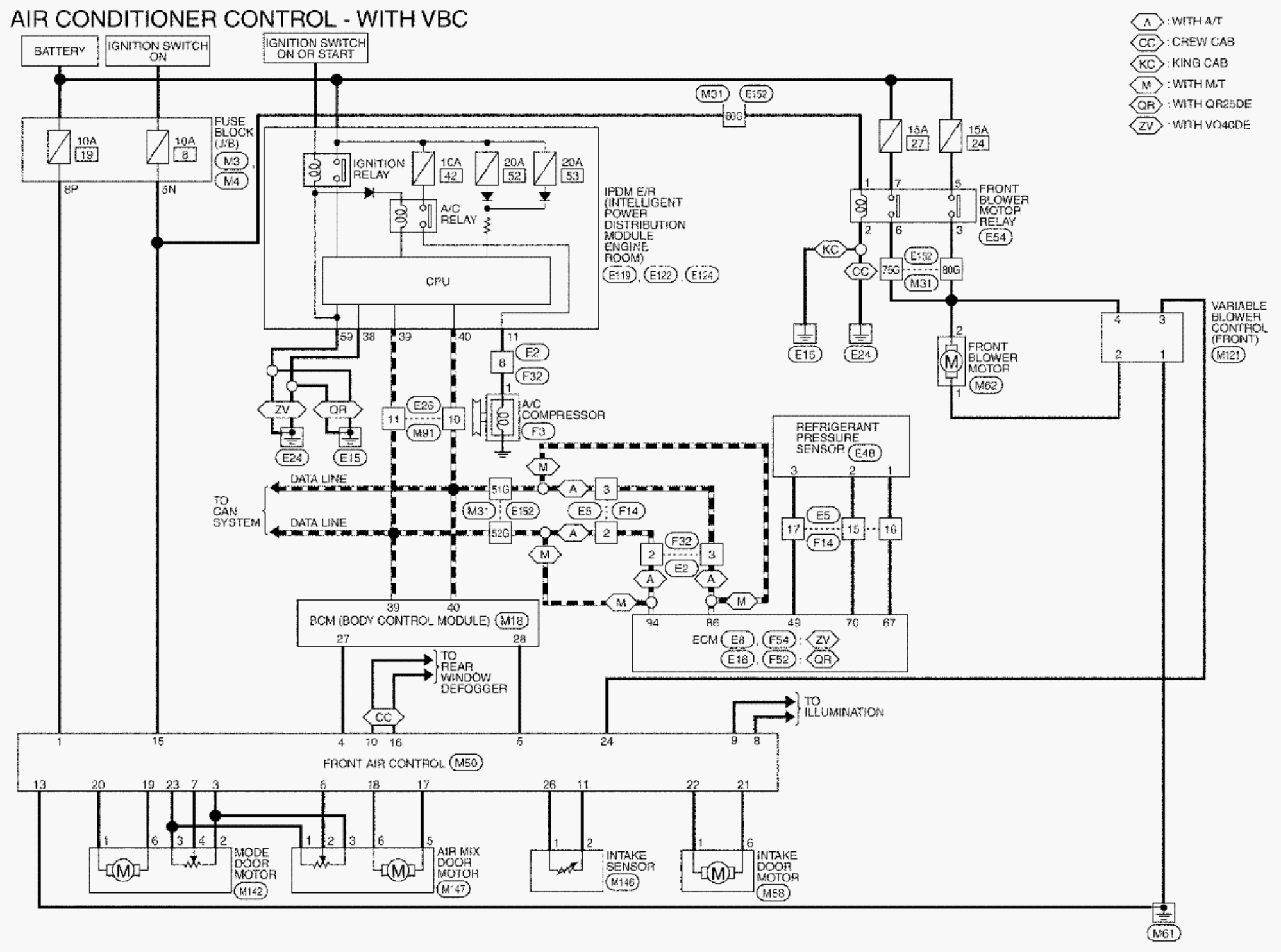

Fig 1: Air Conditioner Control - Wiring Diagram [With VBC] (1 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

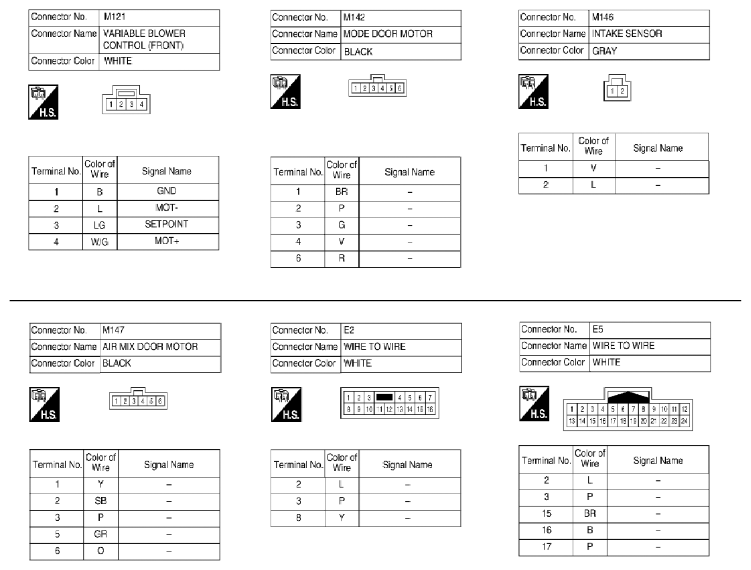

Fig 2: Air Conditioner Control - Wiring Diagram [With VBC] (2 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

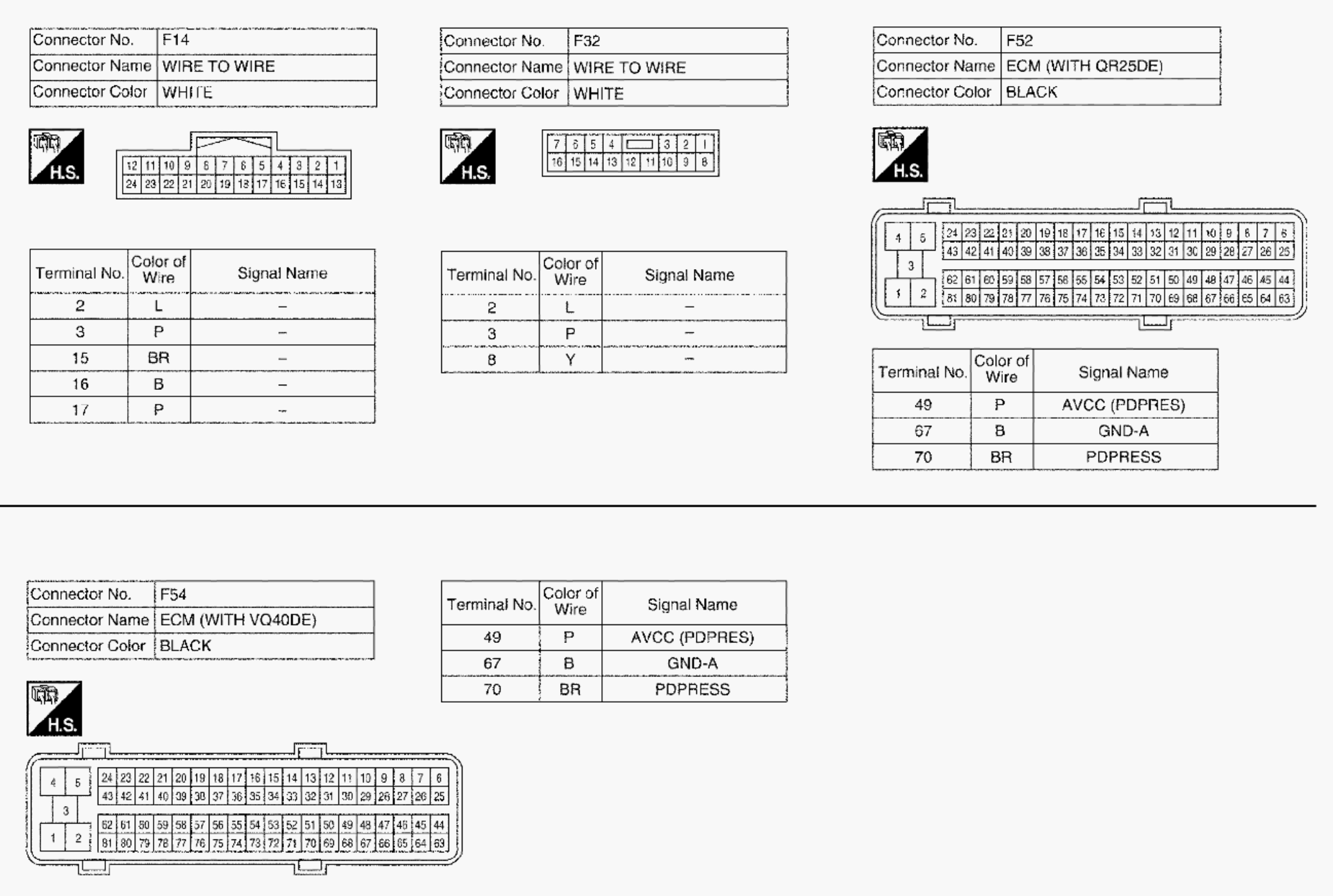

Fig 3: Air Conditioner Control - Wiring Diagram [With VBC] (3 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

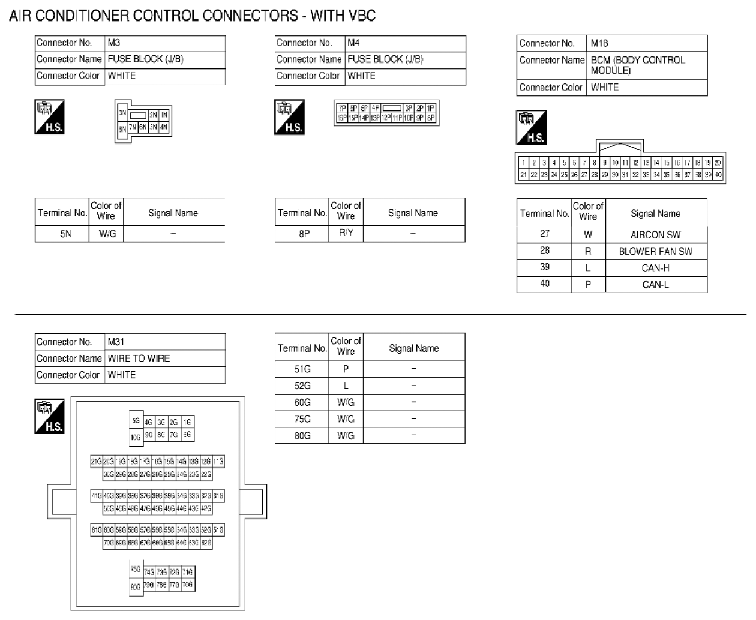

Fig 4: Air Conditioner Control - Wiring Diagram [With VBC] (4 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

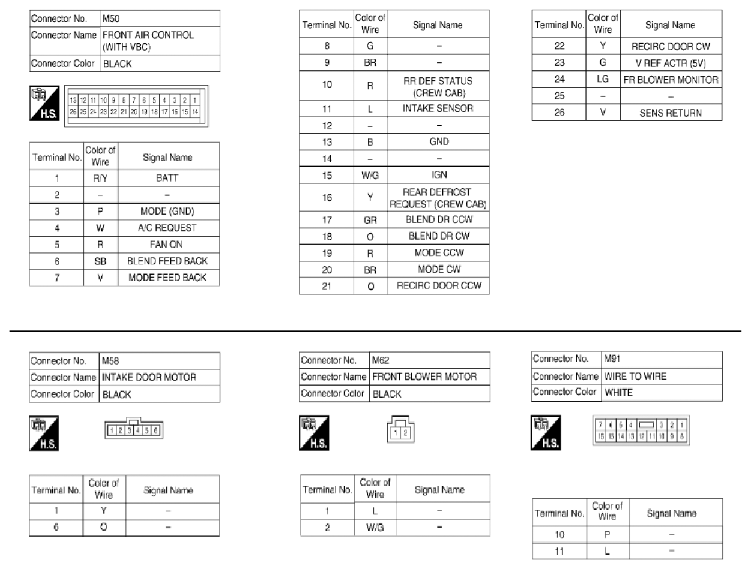

Fig 5: Air Conditioner Control - Wiring Diagram [With VBC] (5 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

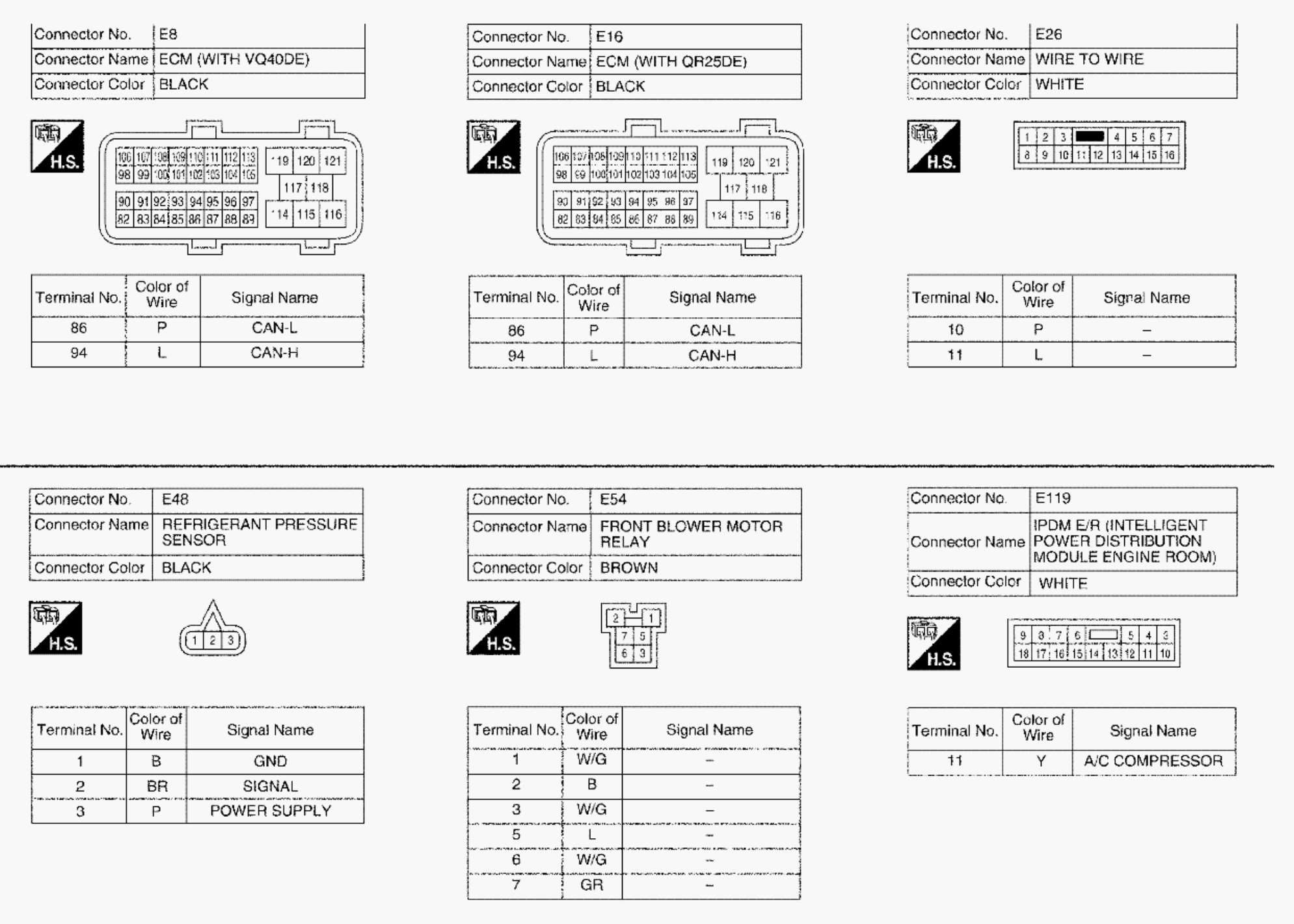

Fig 6: Air Conditioner Control - Wiring Diagram [With VBC] (6 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

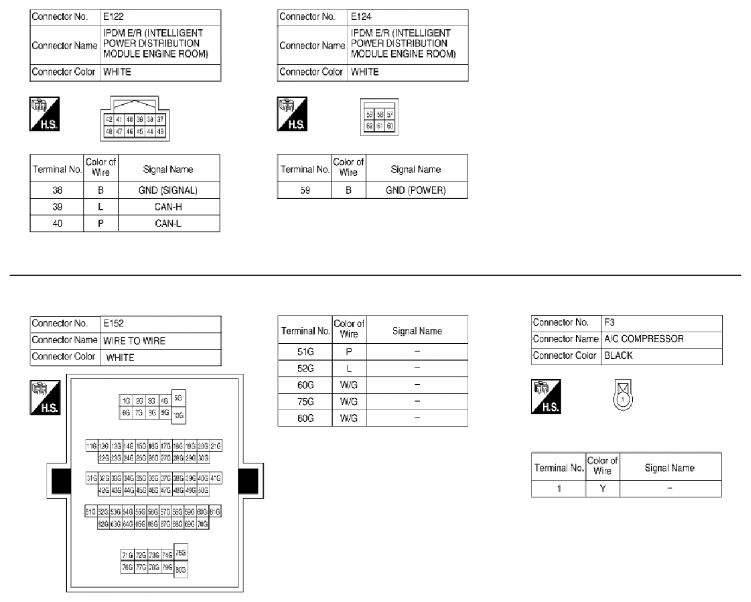

Fig 7: Air Conditioner Control - Wiring Diagram [With VBC] (7 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.
