A/T Shift Lock System: Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
A/T Shift Lock System: Wiring Diagram

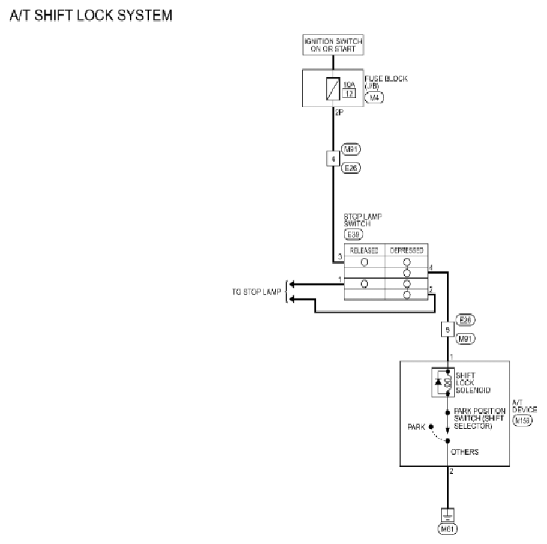

Fig 1: A/T Shift Lock System - Wiring Diagram (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: A/T Shift Lock System - Wiring Diagram (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
