A/T Control System: Wiring Diagram

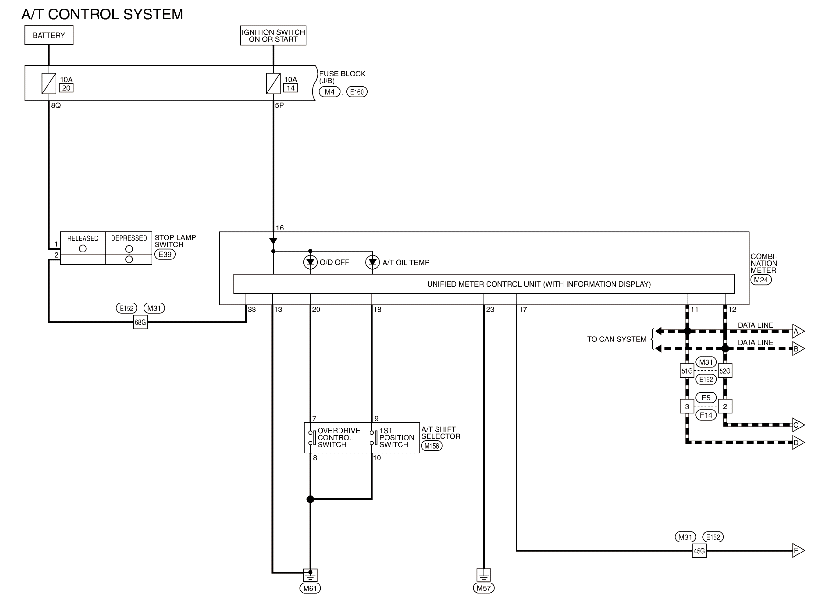

Fig 1: A/T Control System - Wiring Diagram (1 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

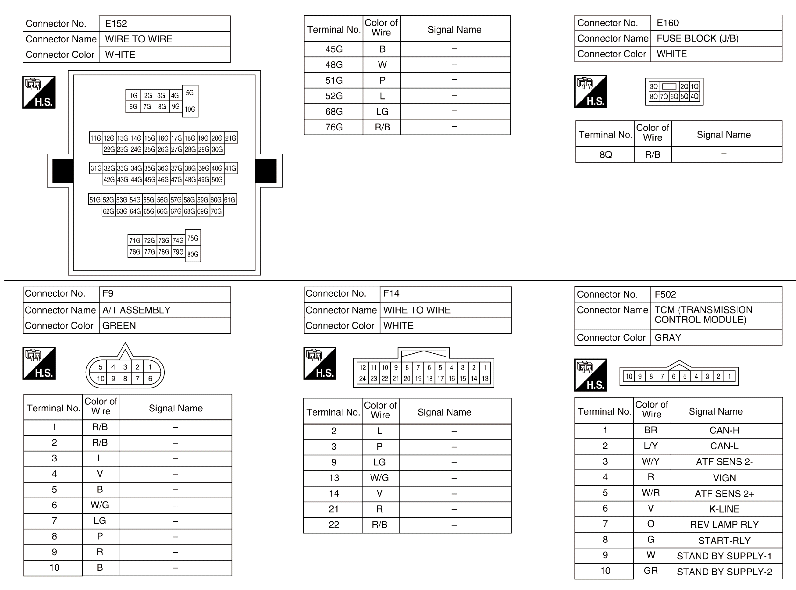

Fig 2: A/T Control System - Wiring Diagram (2 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

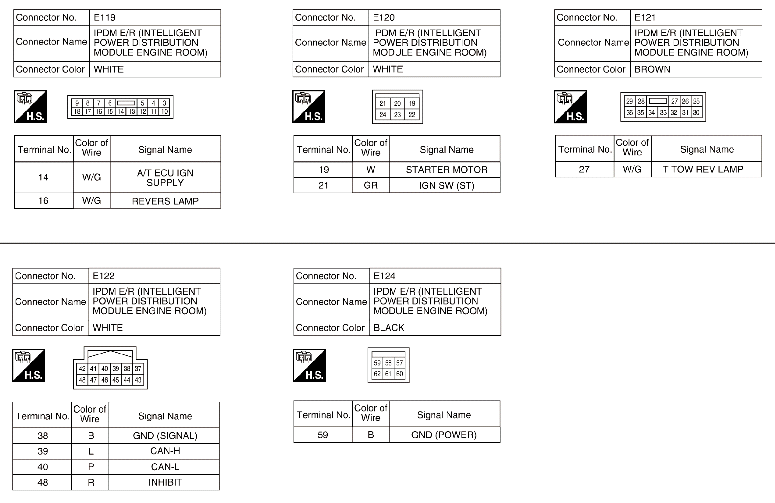

Fig 3: A/T Control System - Wiring Diagram (3 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

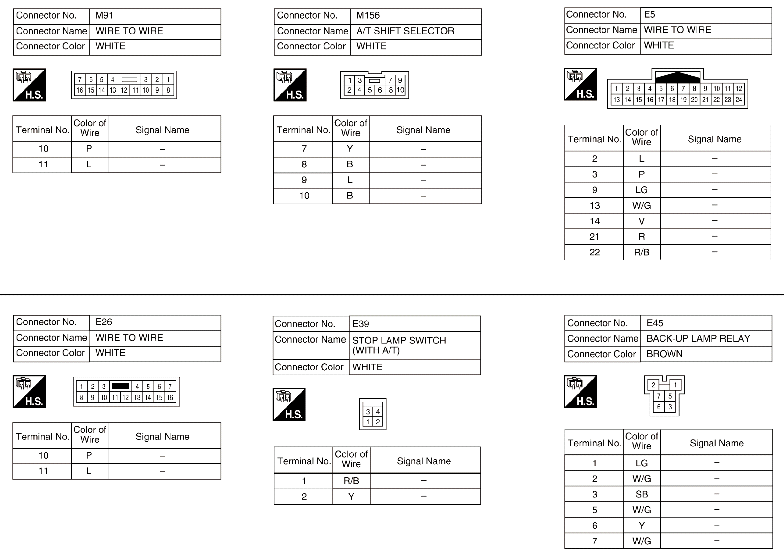

Fig 4: A/T Control System - Wiring Diagram (4 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: A/T Control System - Wiring Diagram (5 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 6: A/T Control System - Wiring Diagram (6 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 7: A/T Control System - Wiring Diagram (7 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.
