Ground Point
>>
Ground Distribution
>>
Body Harness
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Body Harness

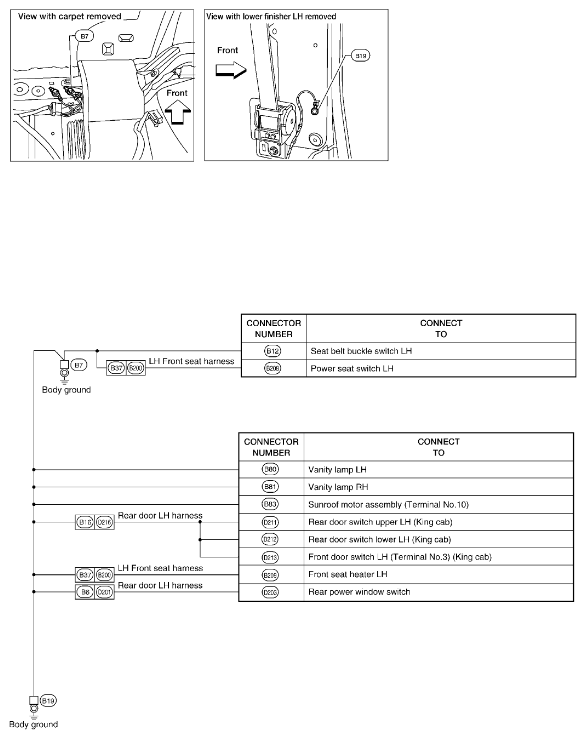

Fig 1: Identifying Ground Distribution - Body Harness
Courtesy of SUZUKI OF AMERICA CORP.
