Rear Door Glass: On-Vehicle Repair: Removal
- Remove the rear door finisher. Refer to
[DOOR FINISHER: REMOVAL AND INSTALLATION
]
- Position aside the vapor barrier.
- Remove the inside seal.
- If equipped, temporarily reconnect the power window switch.
- Remove the glass run from the partition glass.

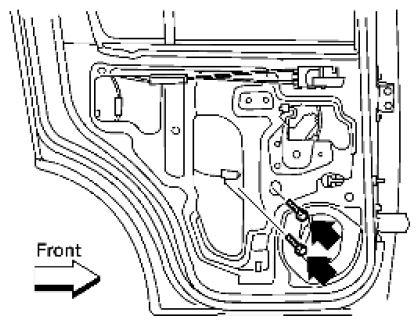

- For power windows, operate the power window switch to raise/lower the door window until the glass bolts can be seen.
Courtesy of SUZUKI OF AMERICA CORP.
- For manual windows, temporarily reinstall the window crank handle and lower the window until the glass bolts can be seen.
- Remove the partition sash bolt (lower) and screw (upper) to remove the sash.
- Remove the bolts and the glass.
